IRIS LS80 Lighting Kit
Price: $11.95
Part Number: LS80

Product Description
Product Description

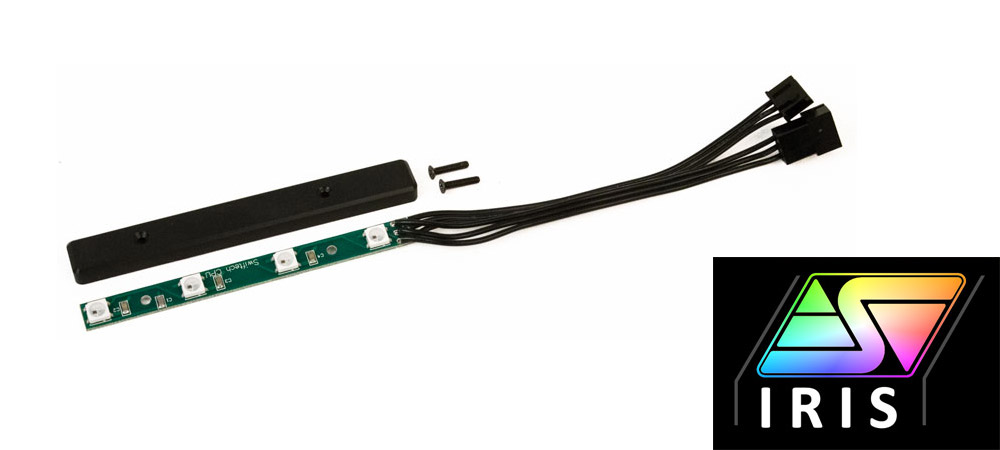

RGB LED lighting system for Swiftech Komodo ECO series VGA waterblocks. This product must be used in conjunction with an Iris-Eco controller (as found in Swiftech Drvie X2 series liquid cooling kits for instance), and cannot be directly connected to the motherboard. The Iris-Eco controller can be purchased separately here.



Specifications:
  • PCB including (4) Adressable RGB LED's, 4" (10cm) cable with 3-pin male connector (connect to to Iris-Eco light controller), 4" (10cm) cable with 3-pin female connector (for daisy chaining other LS80 lightstips in SLI configurations for instance )
  • Black POM cover
  • M2 mounting screws
  • RoHS compliant
Compatibility:

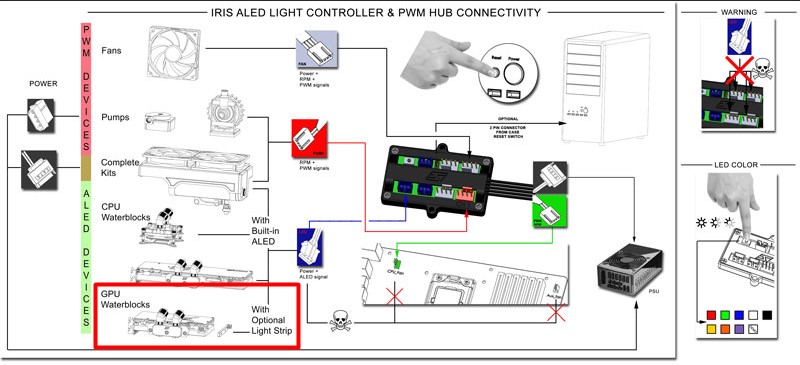

Connectivity:



Important note: the Skulls depicted in the above schematics symbolize the fact that users should NEVER attempt to connect the 3-pin female ALED connectors found in Swiftech's accessories (waterblocks, kits, etc..) to the male 4-pin fan connectors found on the Iris-Eco controller or anywhere else on the motherboard; in effect, this type of component uses 5v current whereas fan connectors use 12v current, and doing so would result in permanent damage to the LED's.
