Komodo NV-ECO TITAN X (Pascal)
Out of stock
Part Number: KOMODO NV-ECO GTX TITAN X
Bulk shipping information: 12 Pcs/Ctn

Product Options


Product Description
Product Description

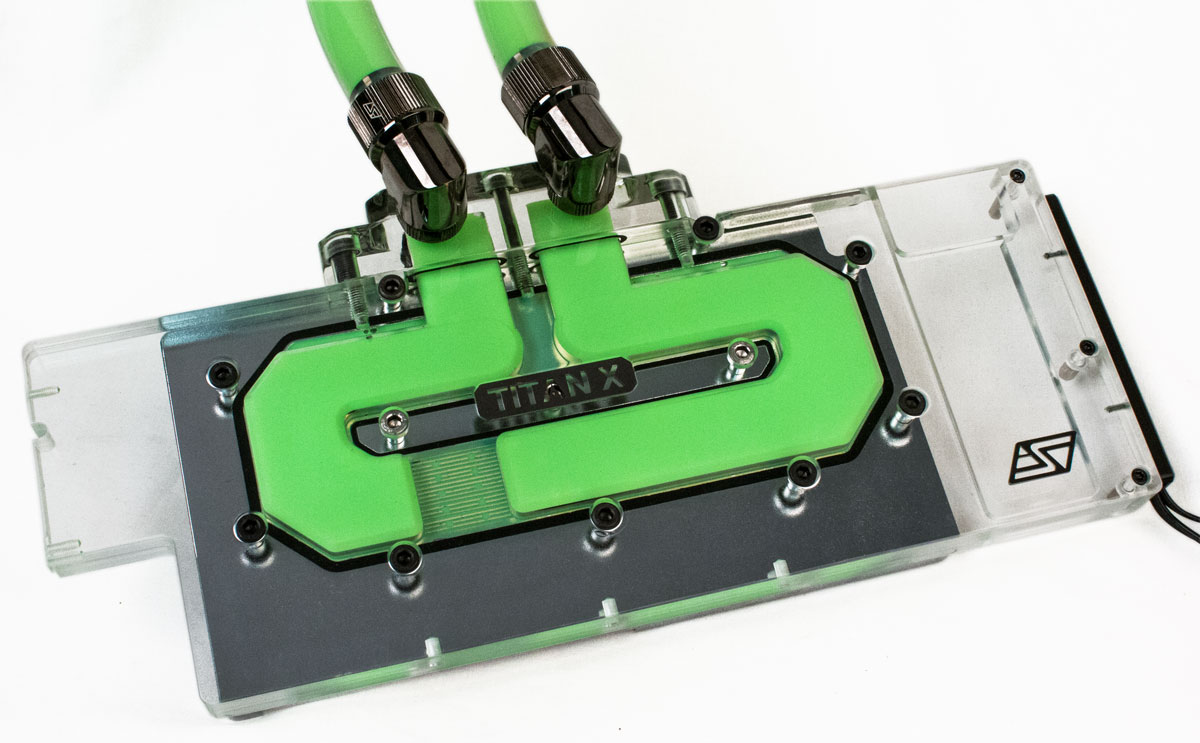

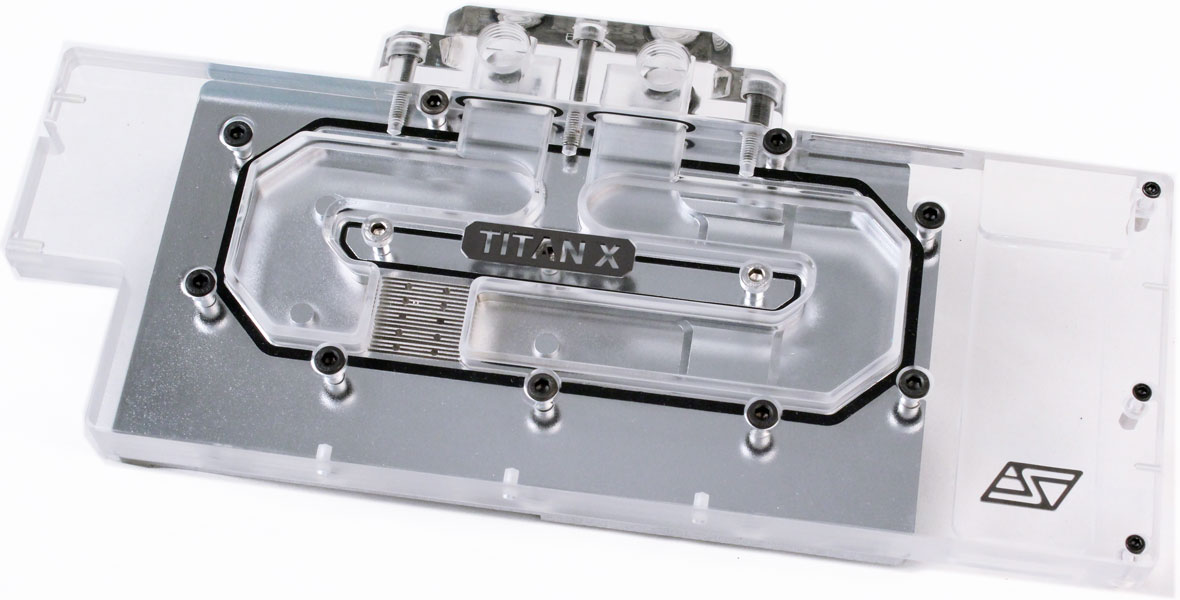

The Komodo™ NV-ECO GTX Titan X full cover VGA waterblock is a high performance cooling solution with advanced thermal design and low flow restriction, compatible with Nvidia's GeForce GTX Titan X (Pascal architecture) graphics cards, as well as Geforce GTX1080 TI.  The coolant flow path includes all critical components such as GPU, memory, power mosfets as well as all other power components specified in NVidia's "Thermal Solutions Design Guide". Proper cooling of all the critical components contributes to overclocking stability, reliable operations, and longevity of the graphics card. The block also covers the entire PCB, leaving no components exposed to possible damages during handling.

Optional Accessories

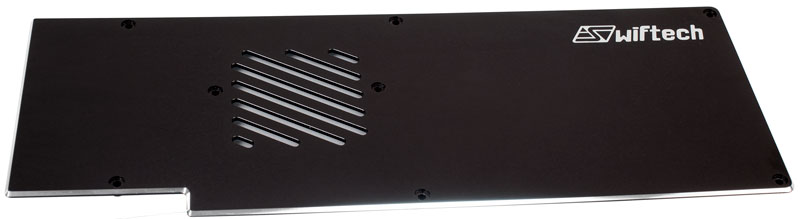

  • Back-plate:  the precision-machined billet aluminum back-plate, features a black-anodized silky smooth surface finish, and is intended to protect the fragile components found on the back of the graphics card PCB as well as providing a perfectly finished high-end "factory" look to the entire assembly.

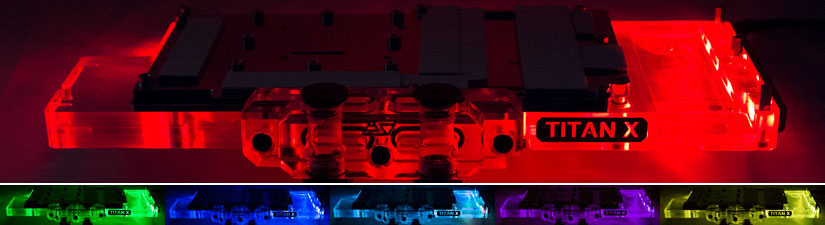

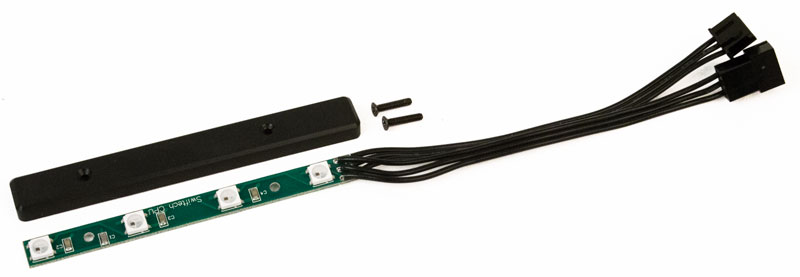

  • LS80 lightstrip:  the LS80 lightstrip features 4 Addressable RGB LED's compatible with Swiftech Iris-Eco LED controller found in the award winning Drive X2 CPU cooling kits. This accessory can be installed in existing mounting holes on the side of the Komodo NV-ECO GTX titan X housing. Thanks to this option, users can now control the entire lighting/color theme of their build at the touch of a button. The Iris-Eco light controller is necessary to operate the LS80 lightstrip, and is sold separately. See LS80 Lightstrip product page.

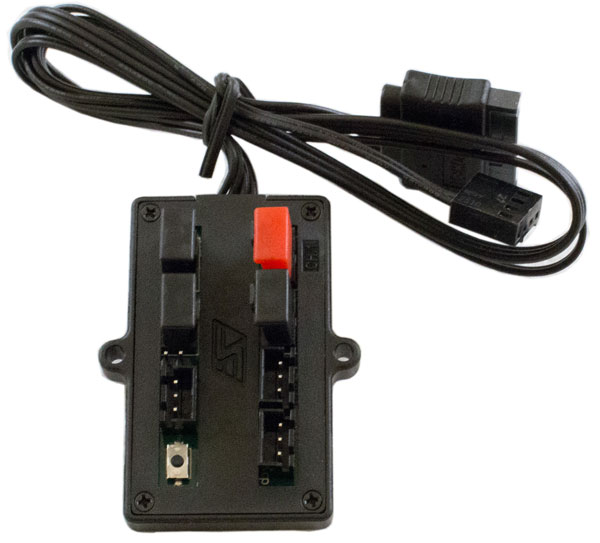

  • Iris-Eco Light controller: the Iris-Eco is a multi-function device including both light control and PWM signal splitting functionalities. The on board light controller chip provides 8 color choices + 3 dimming settings;  the PCB is populated with three 3-pin ALED connectors, one push-button switch for light control, and one 2-pin connector for remote light control. See Iris-Eco product page.

  • VGA PWM extension cable:  This 15 3/4" (40cm) long electrical harness plugs into the Graphics card 4 pin fan connector, and allows the graphics card to remotely control PWM capable devices such as pump(s) and/or fan(s). This functionality is useful when building a separate cooling loop dedicated solely to graphics cards.With this cable installed, users will be able to control and regulate the operating speed of the cooling system pump(s) and/or fan(s) based on the temperature of the graphics card using either the VGA card original software or aftermarket tools such as MSI Afterburner for instance. See VGA-PWM-EC400 product page

  • SLI installations:  Fully compatible with Swiftech's new Universal bridges. See the bridges product page.




Tab 1



Why is the Komodo-NV a superior cooling solution ?
The only true full cover water-block The blocks cover the full length of the card and utilizes all the original circuit board mounting points; this results in superior thermal interface with all the components, but more importantly it prevents bending and/or damage to the card compared to competing solutions that leave critical components exposed for cost saving purposes; the Komodo NV series continue this exclusive Swiftech® initiative as a true professional solution (an industry first).
Moderate flow restriction by design The water channels have been optimized for optimum flow rate in order to take into account multiple waterblocks in the same loop; additionally, the high efficiency of the thermal design authorizes better thermal performance at low flow rates.
True Chrome Plated copper base plate Maintenance-free, corrosion-free, discoloration-free, and a brighter whiter color: the precision CNC machined copper base plate is plated with true chrome, as opposed to commonly used nickel plating (which is yellowish).
Precision CNC machined housing The main housing is precision CNC machined out of acrylic material.

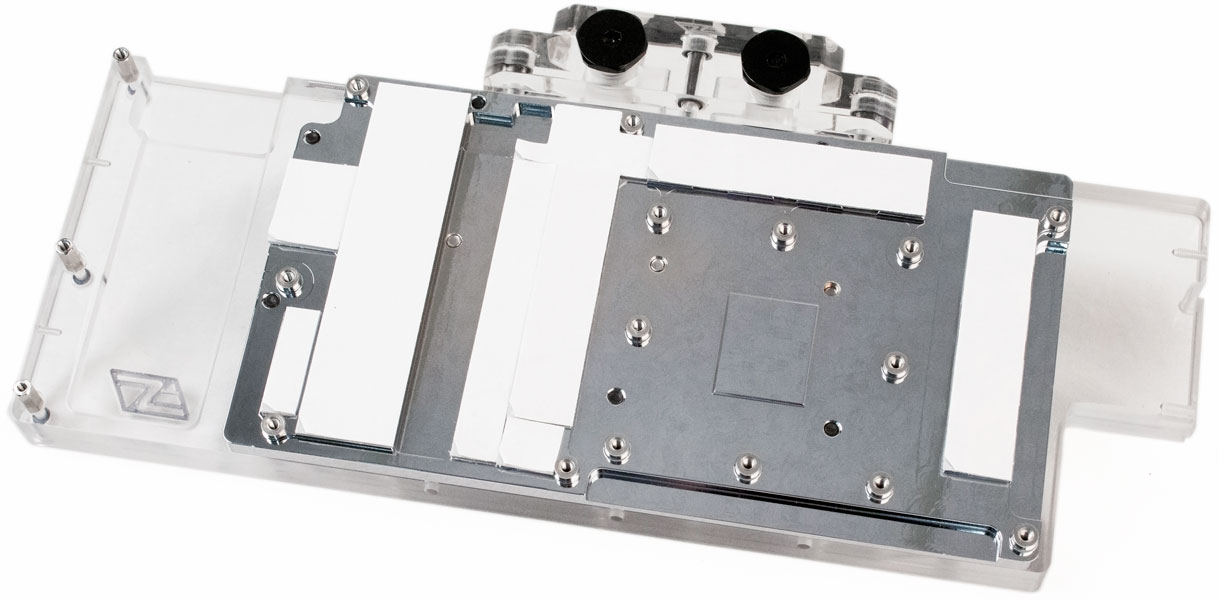

Pre-applied thermal pads High conductivity thermal pads and reusable high performance gap-fillers are pre-applied to the memory, VR and other components;  there is no need to waste time cutting thermal pads as is often the case with other blocks; high quality Tim-Mate™ 2 thermal grease is included with the water-block for application to the GPU area.
SLI support
Depending on your motherboard, up to four Komodo NV-ECO GTX Titan X waterblocks can be interconnected using Lok-Seal™ adjustable connector fittings, or the upcoming Swiftech SLI bridges (to be announced).


Tab 2



What is included in the box
Water-block
Installation screws
Pre-installed thermal pads
Back-plate NOT included (available in option)
Tim Mate 2 Thermal grease
(2) G1/4 plugs
Installation guide

Technical Specifications
Inlet & Outlet port thread standard:: 1/4" BSPP (G1/4)
Quality assurance: leak tested at 30 PSI
Thermal joints installation:
  • GPU: thermal compound (included)
  • Memory & power fets: pre-installed 0.5mm thermal pads
  • Other components: high performance reusable 1mm gap filler
Housing material: acrylic
Base Plate material: Chrome plated C110 copper
Dimensions:  (L) 10.5" - 268mm x (W) 4.8" - 122mm x (H) .74" - 19mm (measured from GPU pedestal to top of housing)
Mass: 44 oz -  1247 g





Tab 3


Compatibility

The Komodo-NV-ECO GTX Titan X is compatible with Nvidia® GeForce GTX titan X (Pascal architecture, released in 2016), and GeForce GTX1080 TI (reference PCB PG611).  This product is not compatible with previous generations (2015) GeForce Titan X.

Brand Models - GTX 1080 Ti
ASL GeForce GTX 1080 Ti 11GB Founders Edition
ASUS GeForce GTX 1080 Ti 11GB Founders Edition (GTX1080TI-FE)
COLORFUL GeForce GTX 1080 Ti 11GB Founders Edition
ELSA GeForce GTX 1080 Ti Founders Edition
EVGA GeForce GTX 1080 Ti 11GB Founders Edition (11G-P4-6390)
FORSA GeForce GTX 1080 Ti 11GB Founders Edition
GAINWARD GeForce GTX 1080 Ti 11GB Founders Edition
GAINWARD GeForce GTX 1080 Ti 11GB Founders Edition (China)
GALAX GeForce GTX 1080 Ti 11GB (80IUJBMDP9VT)
GALAX GeForce GTX 1080 Ti 11GB EXOC (80IUJBMDP0EK)
GALAX GeForce GTX 1080 Ti 11GB EXOC White (80IUJBMDQ0EW)
GALAX GeForce GTX 1080 Ti 11GB Founders Edition (80IUJ3MDXXNM)
GIGABYTE GeForce GTX 1080 Ti 11GB Founders Edition (GV-N108TD5X-B)
INNO3D GeForce GTX 1080 Ti 11GB Founders Edition (N108T-1DDN-Q6MO)
KFA2 GeForce GTX 1080 Ti 11GB
KFA2 GeForce GTX 1080 Ti 11GB EXOC (80IUJBMDP0EK)
KFA2 GeForce GTX 1080 Ti 11GB EXOC White (80IUJBMDQ0EK)
KFA2 GeForce GTX 1080 Ti 11GB Founders Edition
KUROUTOSHIKOU GeForce GTX 1080 Ti 11GB OC (GF-GTX 1080 TI-E 11 GB / OC / DF)
KUROUTOSHIKOU GeForce GTX 1080 Ti Founders Edition (GF-GTX1080TI-E11GB/FE)
LEADTEK GeForce GTX 1080 Ti 11GB WinFast
LEADTEK GeForce GTX 1080 Ti 11GB WinFast Founders Edition
MANLI GeForce GTX 1080 Ti 11GB (M-NGTX1080TI/5RIHPPP-F369G)
MANLI GeForce GTX 1080 Ti 11GB Blower (M-NGTX1080TI/5RIHPPP)
MANLI GeForce GTX 1080 Ti 11GB GALLARDO (M-NGTX1080TIG/5RIHPPP-F371G)
MAXSUN GeForce GTX 1080 TI 11GB Super JetStream
MSI GeForce GTX 1080 Ti 11GB AERO
MSI GeForce GTX 1080 Ti 11GB AERO OC
MSI GeForce GTX 1080 Ti 11GB Founders Edition
PALIT GeForce GTX 1080 Ti 11GB Founders Edition (NEB108T019LC-PG611F)
PNY GeForce GTX 1080 Ti 11GB Founders Edition (VCGGTX1080T11PB-FE)
PNY GeForce GTX 1080 Ti 11GB XLR8 Gaming OC (VCGGTX1080T11XGPB-OC)
ZOTAC GeForce GTX 1080 Ti 11GB (ZT-P10810B-10P)
ZOTAC GeForce GTX 1080 Ti 11GB Founders Edition (ZT-P10810A-10P)




Tab 4


Independant Reviews, and Related Product Reviews
Installation video of the Komodo NV-ECO titan X (Pascal) at Precision Computing


Swiftech's Komodo NV-LE GPU Block receives HITech legion Editor's Choice Award - Read More
"the Komodo NV-LE exceeded all expectations in terms of performance. The gap between the Komodo NV-LE and the other blocks tested was large enough that I actually went back and remounted the other blocks to verify my findings"
