SLI/CrossFire Bridges

Product Options


Product Description
Product Description

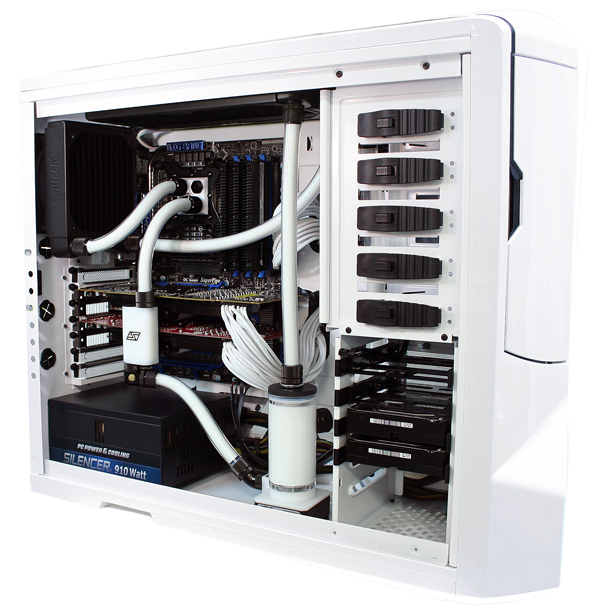

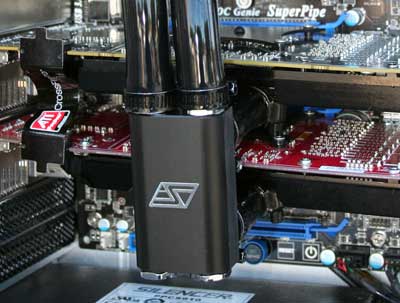

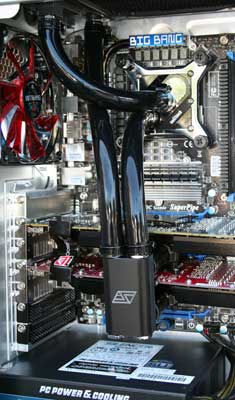

This new series of manifolds, also referred to as bridges, provide an elegant, convenient and economical solution to implement SLI and CrossFire with the MCW60, 80 and 82 Universal GPU waterblocks.




Available Sizes
  • For SLI/CrossFire (2 cards)

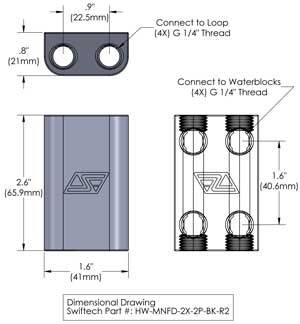

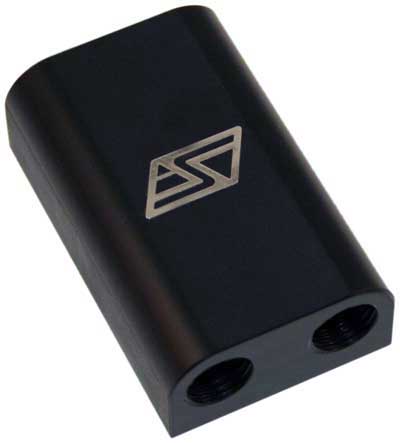

    • 1.6" PCI Spacing

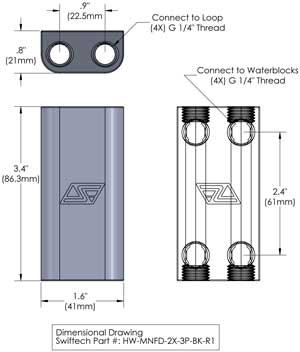

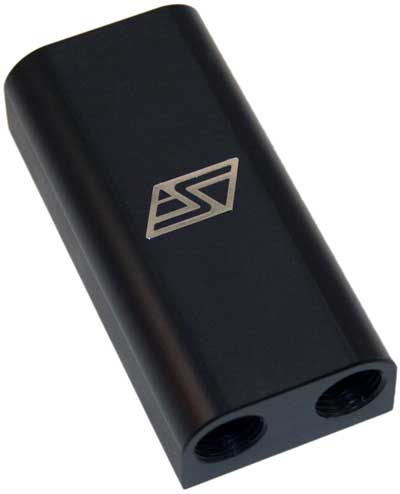

    • 2.4" PCI Spacing

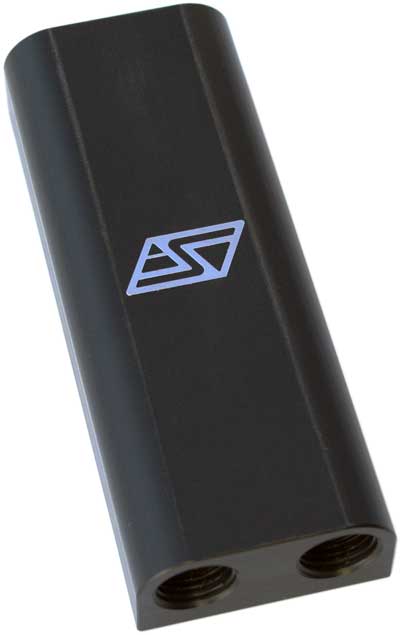

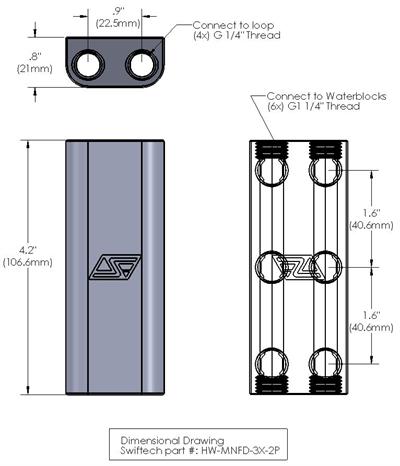

  • For Triple SLI/CrossFire (3 cards) 1.6" PCI spacing

Available Colors

  • Black with Chrome Logo

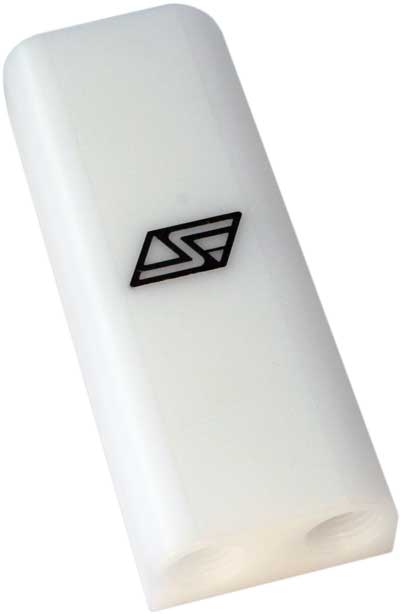

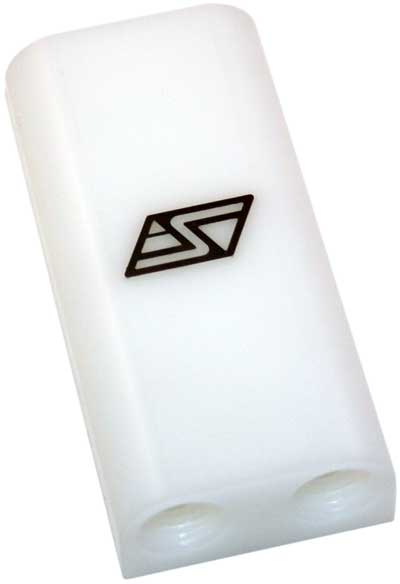

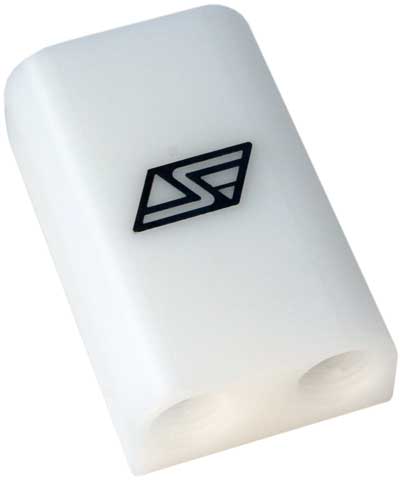

  • White with Black Logo

Specifications:


Material:
  • Polyacetal Copolymer with inlayed Chrome Plated Logo
  • White Polyacetal Copolymer with inlayed Black Logo
  • Port sizes: G1/4" (1/4" BSPP)




What's included the Box:
  • Bridge
  • (2) G1/4 Chrome plated plugs
Compatible Swiftech fittings (optional):
  • 1/4" BSPP x 1/2" barb, Eurostyle
  • 1/4" BSPP x 3/8" barb, Eurostyle
Other compatible fittings:
  • All G1/4 barb fittings
  • Compression fittings up to 1/2" Tube OD
Support

Installation Guide - English Language
Installation Guide - French Language

- Related Products -

Worm Drive Clamp For 1/2" ID Tubing
Price: $2.95
ratingratingratingratingrating
Worm Drive Clamp For 1/2" ID Tubing
Set of 4 Worm drive clamps (black) for 5/8 to 3/4" OD tubing
MCW82 Universal GPU waterblock
Price: $56.95
ratingratingratingratingrating
MCW82 Universal GPU waterblock
MCW82 Universal GPU cooler, including water-block and mounting system for most common reference design VGA cards, 1/2" barb fittings, hose clamps, Arctic Ceramique, installation guide.
G1/4 Barb Fittings
Price: Starting at $3.95
ratingratingratingratingrating
G1/4 Barb Fittings
G1/4 x 1/2" barb fittings with built-in O-ring
1/4" BSPP x 3/8" barb Eurostyle short chrome pltd brass SLI fittings (pair)
Price: $5.00
1/4" BSPP x 3/8" barb Eurostyle short chrome pltd brass SLI fittings (pair)
1/4" BSPP x 3/8" barb Eurostyle **short** chrome pltd brass SLI fittings (pair)

End User Reviews

(2 Ratings, 1 Review) Average Rating:
ratingratingratingratingrating
ratingratingratingratingrating
3way FTW!!!!
Ron (Port Clements, BC) 6/24/2013 10:50 AM
Looks and works great!!! It's plumbed in parallel, but wish I had the option of series.. Not a huge deal, just saying. Worked amazingly with 3 MCW82's and G¼ Male-Male SLI & CrossFireX connector fittings. considering its universal and looks good, is a good thing. And as far as I know Swiftech is the only game in town for 3way universal. Kudos Swiftech!
