MCP35B


Price: $79.95
Out of stock
Bulk shipping information: 20 Pcs/Ctn

Product Options

Color:


Designed in the USA
ROHS Compliant
Product Description

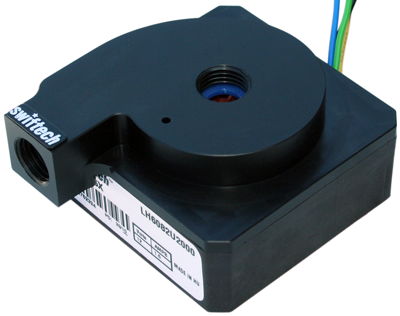

The MCP35B pump is a substantial evolution from the long established MCP350. It differentiates itself from its sibling by its CNC machined Delrin housing:
  • The pump housing:
    • has been redesigned to provide considerably enhanced hydraulic performance;
    • is compatible with multiple tubing options thanks to the adoption of the G1/4 port standard;
    • can host an optional "built-in" reservoir;
    • is available in 2 colors: classic black or fashionable white;
    • is also sold separately, and remains compatible with all MCP3XX series pumps.



Tab 1

  • Small Footprint: 2.4" x 2.4" x 1.36";
  • 50,000 hours MTBF (Mean Time Between Failure) ;
  • 12 Volts DC convenience: plugs into the computer power supply with 4-pin Molex connector
  • Quiet operations (24~26dBA @ 2')
  • G1/4" ports standard for compatibility with a large assorment of fittings;
  • No maintenance when used with distilled water, and anti-fungal additives (our HydrX additive is recommended);
  • Quick installation with adhesive neoprene pad, or permanent installation with supplied hardware;
  • RPM sensor plugs into 3 pin motherboard fan connectors and reports impeller rotational speed;
  • Optional "built-in" reservoir;
  • 2 year warranty

Tab 2

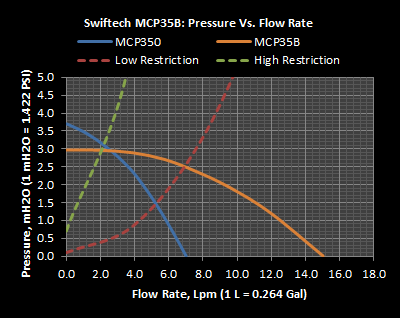

MCP35B and MCP350 PQ Cuves

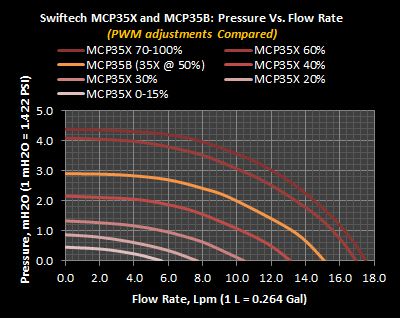

MCP35B and MCP35X at various PMW settings


Tab 3


The MCP35B pump uses the MCP35X Housing. It is precision machined from black POM, and the housing is also available for sale separately. It is compatible with all previous MPC3XX class pumps.
Important warranty information:
Users are reminded that disassembling their pump for any reason, including for the purpose of upgrading the housing, automatically voids the pump warranty.

Technical Specifications

Motor type Electronically commutated, brushless DC, spherical motor
Nominal voltage 12 V DC
Operating voltage range 9 to 13.4 VDC
Max. nominal power (@12 V) 12 W
Max. nominal current (@12 V) 1 A
Max. nominal head (@12 V) 10 ft (3 m)
Max nominal discharge (@12 V) ~ 4.00 GPM (15.0 LPM)
Maximum pressure 22 PSI (1.5 BAR)
Temperature range Up to 140 °F (60 °C)
Electrical power connector Molex 4 pin
RPM sensor 3-Pin
RoHS Compliant
Port thread standard G1/4
MTBF 50,000 Hours
Weight 7.6 oz



Tab 4

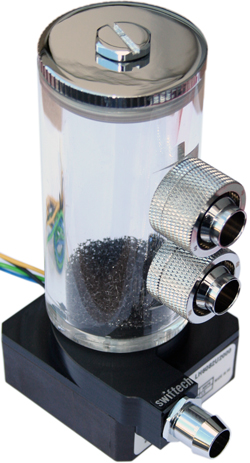

  • (2) G1/4 inlet ports for parallel loop splitting
  • Reservoir body can be rotated and locked in (6) different positions for convenient tube routing: at 12 o'clock, 2, 4, 6, 8, and 10 o'clock
  • Supports compression fittings up to 3/4" (tube OD)
  • Additional G1/4 port inside of the fill-cap can be used to install a remote fill-port
  • Ships with Swiftech® 1/2" chrome barb fittings and G1/4 port pluigs
  • Compression fittings sold separately by Swiftech® resellers
  • Cast acrylic body
  • Chrome plated brass fill-cap
  • Capacity: 10 cl





Tab 5

Documentation



Tab 6

NO CONTENT
