MCP350


Price: $83.95
Part Number: MCP350
Bulk shipping information: 20 Pcs/Ctn
Introduction

As the computer industry continues to accelerates its pace towards implementing liquid cooling solutions, pumps have become a pivotal concern for the adoption of such systems in mission critical machines. Small size, low or no maintenance, similar to that afforded by fans, and extended reliability are prerequisites for the successful transition from air to liquid cooling systems.

Features

MCP350 Exploded View Introducing the MCP350 pump: despite a remarkably small footprint of 2.4" square, the MCP350 features an astounding 13ft of head to provide superior flow rates in today's most complex liquid cooled systems. The MCP350 is also a high reliability, high pressure industrial pump, featuring a 50,000 hour MTBF (5 year lifetime). Such reliability is afforded by the unique design of this pump, which contains only one moving part: the magnetically driven rotor/impeller spins on a single ceramic bearing, thus extending the life of this pump beyond existing standards.

The pump is completely plug-and-play, and connects directly to any computer power-supply through standard 4 pin power connectors. It's compact design, quiet and powerful motor make it ideally suited for heavy duty cooling in environments where space is at a premium.

Summary of features and benefits
  • Small Footprint: 2.4" x 2.4" x 1.5"
  • 50,000 hours MTBF (Mean Time Between Failure) equivalent to 5 years lifetime
  • Superior 12 Volts DC convenience: plugs into the computer power supply
  • The MCP350 can be used with full confidence in any MP servers, and high-end workstations
  • Superior real world performance thanks to its high pressure characteristics (13ft of head). The MCP350 is particularly well adapted to the proliferation of daisy-chained liquid cooling devices in a single circuit: Multiple Processors, Chipset, Graphics, and Hard Drives
  • Quiet Operation thanks to brushless motor: 24 to 26 dBA
  • 3/8" barb fittings
  • No maintenance when used with de-mineralized water, and anti-fungal additives (Our HydrX additive is recommended)
  • Quick installation with adhesive neoprene pad, or permanent installation with screws and grommets
  • RPM sensor plugs to 3 pin motherboard fan connectors and reports impeller rotational speed

Retention Mechanism

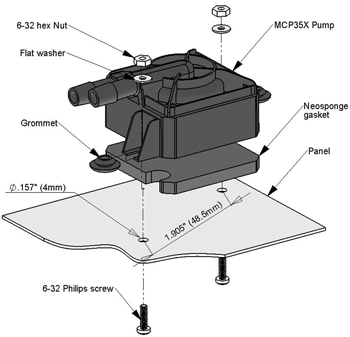

MCP350 Permanent Installation The MCP350 can either be installed with the built-in neoprene pad featuring a peel-off adhesive back, or permanently with thru-bolts as shown below.

Technical specifications

Nominal Voltage 12 V DC
Operating Voltage 8 to 13.2 V DC
Minimum Start-up Voltage 9 V DC
Nominal Power (@ 12 V) 8.3 to 12 W
Nominal Current (@ 12 V) 0.69 to 1 A
Nominal Head Pressure (@ 12 V) 10.8 ft (3.3 m)
Nominal Discharge (@ 12 V) ~ 116 GPH (440 LPH)
Connection Size 3/8" barbs (10mm)
Maximum (working) Pressure 22 PSI (1.5 BAR)
Temperature Range Up to 140 °F (60 °C)
Electrical Connector Molex 4-pin
Weight 7.3 oz (207 g)
Noise Level 24 ~ 26 dBA @ 2'
Motor Electronically Commutated, Brushless
MTBF 50,000 Hours
RPM Signal Yes
RoHS Compliant

Performance

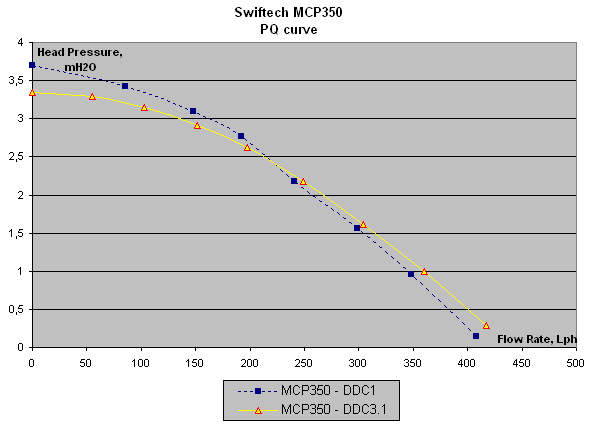

MCP350 PQ Curve

MCP350-DDC1 : shipped prior to 6/15/07
MCP350-DDC3.1 : shipped after to 6/15/07

Dimensions

MCP350 Dimensions
Important warranty information:

Users are reminded that disassembling their pump for any reason, including for the purpose of upgrading the housing, automatically voids the pump warranty.
