KOMODO NV-LE GTX TITAN X (Pascal) VGA Waterblock


Price: $169.95
Out of stock
Part Number: KOMODO NV-LE-GTXTITAN X
Bulk shipping information: 12 Pcs/Ctn


Designed in the USA
ROHS Compliant
Product Description

The Komodo™ NV-LE GTX TITAN X full cover waterblock is a high performance cooling solution with advanced thermal design and low flow restriction, compatible with Nvidia's GeForce GTX TITAN X ("Pascal" architecture) graphics cards and GeForce GTX1080 TI.   This model is part of the "Luxury Edition" series of VGA waterblocks, focused on smooth and streamlined elegance, and it includes our RGB ALED lighting system compatible with all versions of Swiftech's X2 series CPU coolers. This allows users to unify the color scheme of their entire cooling system at the push of a button. The product ships with all necessary accessories to implement the lighting system. A new PWM signal extension cable is also included with this waterblock; when connected, it allows the graphics card own PWM signal to control the speed of other PWM compatible devices in the liquid cooling loop, such as fans and/or pump. This feature is especially useful to regulate noise & cooling in systems featuring discrete VGA cooling loops.

The coolant flow path includes all critical components such as GPU, memory, power mosfets as well as all other power components specified in NVidia's "Thermal Solutions Design Guide". Proper cooling of all the critical components contributes to overclocking stability, reliable operations, and longevity of the graphics card.

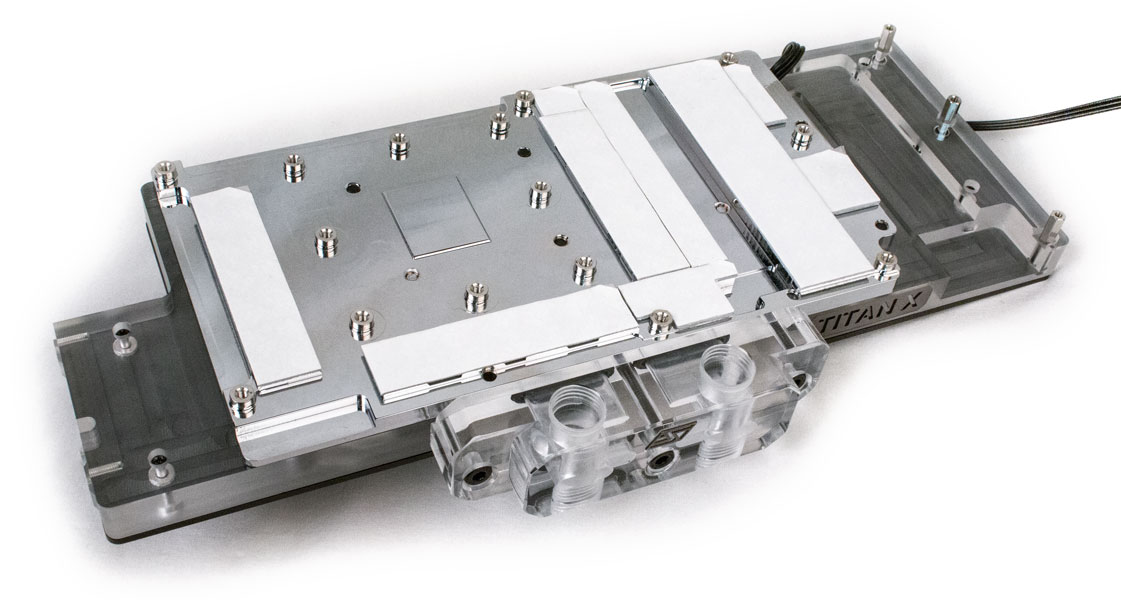

The block housing and bridge are made of high quality acrylic material, allowing the back lighting system to shine through the edges of the block, the coolant window, and the bridge;  the base plate is made of chrome plated C110 copper with pre-installed thermal pads; the housing surface is dressed with a black anodized aluminum top plate featuring a central cutout to show the coolant flow path, and highlighted beveled edges;  the housing top plate is mirrored by a similarly finished back-plate, protecting and beautifying the back side of the graphics card.

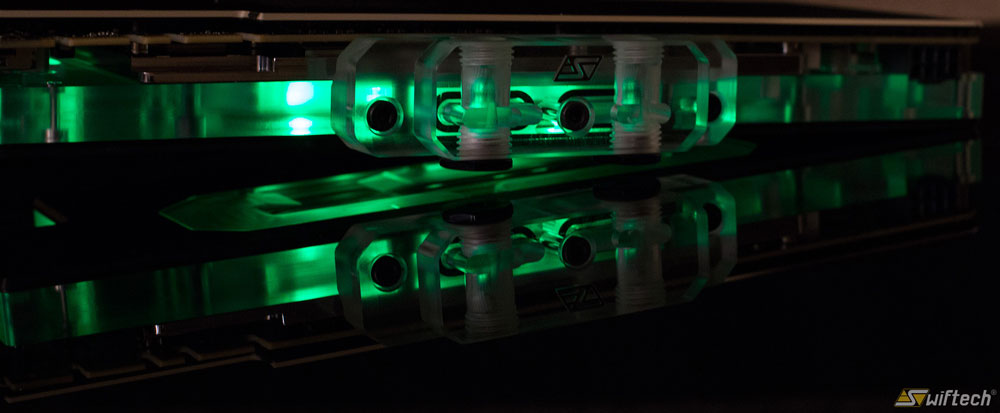

The new ALED technology allows users to change the lighting color scheme at the push of a button, using the included light controller, and is demonstrated below (Komodo GTX1080 version).



SLI installations:  Fully compatible with Swiftech's new Universal bridges. See the bridges product page.







Tab 1



Why is the Komodo NV-LE a superior cooling solution ?
The only true full cover water-block The blocks cover the full length of the card and utilizes all the original circuit board mounting points; this results in superior thermal interface with all the components, but more importantly it prevents bending and/or damage to the card compared to many competing solutions that leave critical components exposed for cost saving purposes; the Komodo NV-LE series continue this exclusive Swiftech® initiative as a true professional solution.
Moderate flow restriction by design The water channels are optimized for optimum flow rate in order to take into account multiple waterblocks in the same loop; additionally, the high efficiency of the thermal design authorizes better thermal performance at low flow rates.
True Chrome Plated copper base plate Maintenance-free, corrosion-free, discoloration-free, and a brighter whiter color: the precision CNC machined copper base plate is plated with true chrome, as opposed to commonly used nickel plating (which is yellowish).
Precision CNC machined housing The main housing is precision CNC machined out of acrylic material.
Pre-applied thermal pads High conductivity thermal pads and reusable high performance gap-fillers are pre-applied to the memory, VR and other components;  there is no need to waste time cutting thermal pads as is often the case with competing solutions; our high quality Tim-Mate™ 2 thermal grease is included with the water-block for application to the GPU area.
SLI support
While Nvidia does not officially support more than 2 cards in SLI, up to four Komodo NV-LE GTX Titan X waterblocks can be interconnected using either Lok-Seal™ adjustable connector fittings, or our new upcoming generation of SLI bridges (to be announced).


Tab 2



What is included in the box
Water-block
ALED lighting system (pre-installed inside block)
Iris-Eco Multifunction Light controller & PWM splitter and extension cable
Installation screws
Pre-installed thermal pads
VGA back-plate
Tim Mate 2 Thermal grease
(2) G1/4 plugs
Installation guide

Technical Specifications
Inlet & Outlet port thread standard:: 1/4" BSPP (G1/4)
Quality assurance: leak tested at 30 PSI
Thermal joints installation:
  • GPU: thermal compound (included)
  • Memory & power fets: pre-installed 0.5mm thermal pads
  • Other components: high performance reusable 1mm gap filler
Housing material: acrylic
Base Plate material: Chrome plated C110 copper
Dimensions:  (L) 10.5" - 268mm x (W) 4.8" - 122mm x (H) .74" - 19mm (measured from GPU pedestal to top of housing)
Mass: 44 oz -  1247 g





Tab 3


Compatibility

The KOMODO-NV-LE GTX Titan X is compatible with Nvidia reference PCB designs GeForce titan X (Pascal architecture) and GeForece GTX1080 Ti (reference PCB PG611).  The PCB revision number represents the deciding factor to go by when selecting your Swiftech product,rather than the brand and/or model number of the card. Nvidia reference design boards normally bear the Nvidia logo, with the PCB number positioned directly below it.  Please carefully inspect your card to locate the PCB revision number.

Brand Models - GTX 1080 Ti
ASL GeForce GTX 1080 Ti 11GB Founders Edition
ASUS GeForce GTX 1080 Ti 11GB Founders Edition (GTX1080TI-FE)
COLORFUL GeForce GTX 1080 Ti 11GB Founders Edition
ELSA GeForce GTX 1080 Ti Founders Edition
EVGA GeForce GTX 1080 Ti 11GB Founders Edition (11G-P4-6390)
FORSA GeForce GTX 1080 Ti 11GB Founders Edition
GAINWARD GeForce GTX 1080 Ti 11GB Founders Edition
GAINWARD GeForce GTX 1080 Ti 11GB Founders Edition (China)
GALAX GeForce GTX 1080 Ti 11GB (80IUJBMDP9VT)
GALAX GeForce GTX 1080 Ti 11GB EXOC (80IUJBMDP0EK)
GALAX GeForce GTX 1080 Ti 11GB EXOC White (80IUJBMDQ0EW)
GALAX GeForce GTX 1080 Ti 11GB Founders Edition (80IUJ3MDXXNM)
GIGABYTE GeForce GTX 1080 Ti 11GB Founders Edition (GV-N108TD5X-B)
INNO3D GeForce GTX 1080 Ti 11GB Founders Edition (N108T-1DDN-Q6MO)
KFA2 GeForce GTX 1080 Ti 11GB
KFA2 GeForce GTX 1080 Ti 11GB EXOC (80IUJBMDP0EK)
KFA2 GeForce GTX 1080 Ti 11GB EXOC White (80IUJBMDQ0EK)
KFA2 GeForce GTX 1080 Ti 11GB Founders Edition
KUROUTOSHIKOU GeForce GTX 1080 Ti 11GB OC (GF-GTX 1080 TI-E 11 GB / OC / DF)
KUROUTOSHIKOU GeForce GTX 1080 Ti Founders Edition (GF-GTX1080TI-E11GB/FE)
LEADTEK GeForce GTX 1080 Ti 11GB WinFast
LEADTEK GeForce GTX 1080 Ti 11GB WinFast Founders Edition
MANLI GeForce GTX 1080 Ti 11GB (M-NGTX1080TI/5RIHPPP-F369G)
MANLI GeForce GTX 1080 Ti 11GB Blower (M-NGTX1080TI/5RIHPPP)
MANLI GeForce GTX 1080 Ti 11GB GALLARDO (M-NGTX1080TIG/5RIHPPP-F371G)
MAXSUN GeForce GTX 1080 TI 11GB Super JetStream
MSI GeForce GTX 1080 Ti 11GB AERO
MSI GeForce GTX 1080 Ti 11GB AERO OC
MSI GeForce GTX 1080 Ti 11GB Founders Edition
PALIT GeForce GTX 1080 Ti 11GB Founders Edition (NEB108T019LC-PG611F)
PNY GeForce GTX 1080 Ti 11GB Founders Edition (VCGGTX1080T11PB-FE)
PNY GeForce GTX 1080 Ti 11GB XLR8 Gaming OC (VCGGTX1080T11XGPB-OC)
ZOTAC GeForce GTX 1080 Ti 11GB (ZT-P10810B-10P)
ZOTAC GeForce GTX 1080 Ti 11GB Founders Edition (ZT-P10810A-10P)



Tab 4


Independant Reviews, and Related Product Reviews
Installation video of the Komodo NV-ECO Titan X (Pascal) at Precision Computing


Swiftech's Komodo NV-LE GPU Block receives HITech legion Editor's Choice Award - Read More
"the Komodo NV-LE exceeded all expectations in terms of performance. The gap between the Komodo NV-LE and the other blocks tested was large enough that I actually went back and remounted the other blocks to verify my findings"
