CrossFireX Bridges


Price: From $21.95 to $27.95

Product Options

Size:


Designed in the USA
ROHS Compliant
Product Description

This new series of manifolds, also referred to as "bridges", provide an elegant and convenient solution to implement CrossFireX™ with the Komodo HD7970 and upcoming HD7950 full cover waterblocks. When installed, the logo becomes illuminated thanks to the LEDs that are built into the Komodo HD7900 series waterblocks.


Configurations

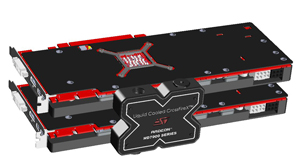

For Crossfire X with 2 cards and 1.6" spacing We recommend using the

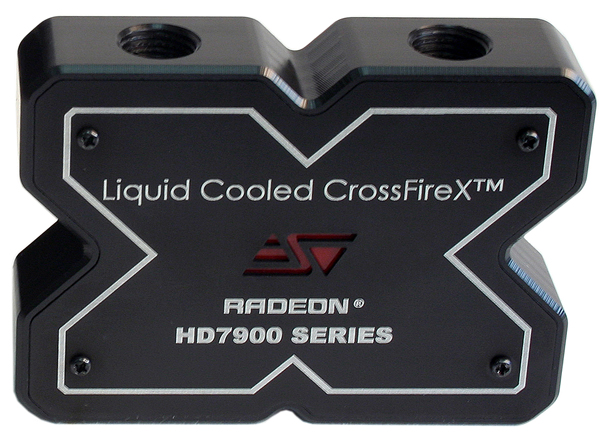

HD7900-XFIRE X2 bridge

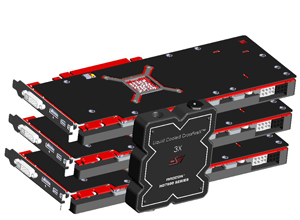

For Crossfire X with 3 cards and 1.6" spacing We recommend using the

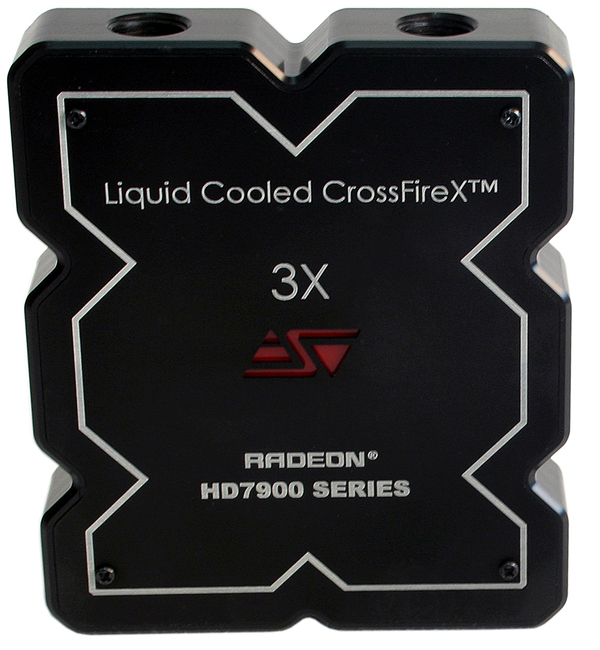

HD7900-XFIRE-X3 bridge

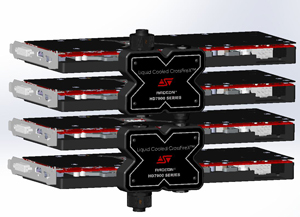

For Crossfire X with 4 cards and 1.6" spacing We recommend using:

- (2) of the HD7900-XFIRE X2 bridges and

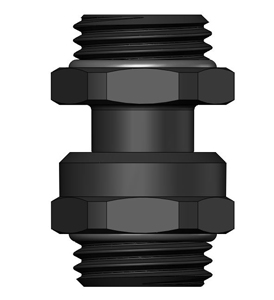

- (1) short length link, part # G1-4-MMEXT-SHORT

+

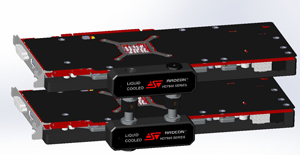

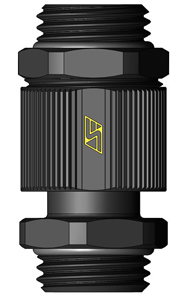

For Crossfire X with 2 cards and 2.3" spacing We recommend using the Komodo HD7970 in stock configuration and (2) medium length links, part # G1-4-MMEXT-MEDIUM
Stock cooler
+
Specifications:
  • Flow configuration: parallel
  • Material:
    • Housing Material: Black POM acetal housing
    • Face platre: black anodized aluminum with laser engraved markings
    • Window: red acrylic insert
  • Port sizes: 1/4" BSPP (G1/4)
What's included the Box:
  • Bridge
  • (2) G1/4 black plugs

Fittings Compatibility

  • 1/4" BSPP x 1/2" barb, Eurostyle
  • 1/4" BSPP x 3/8" barb, Eurostyle
  • Upcoming Lok-Seal™ compression fittings
  • All G1/4 barb fittings
  • Compression fittings up to 1/2" Tube OD
