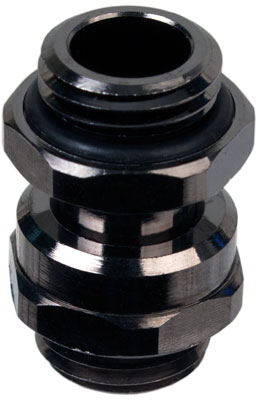

G¼ Male-Male Lok-Seal™ SLI & CrossFireX connector fitting adjustable from 11 to 18mm


ratingratingratingratingrating
Price: $3.75

Product Options

Color:


Designed in the USA
ROHS Compliant
Product Description:


G¼ Male-Male adjustable connector fittings for multiple VGA waterblocks in SLI or CrossfireX. This product is part of the Lok-Seal™ family of fittings.

Contents & Features Specifications

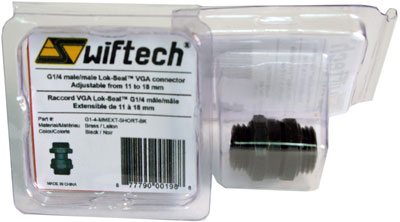

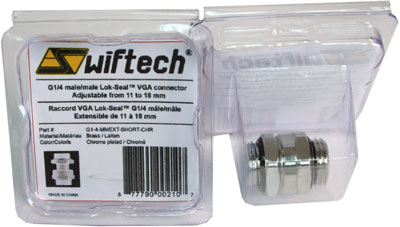

  • Blister pack of ONE (1) fitting
  • Material: brass
  • Adjustable length range:
    Metric: 11 to 18 mm
    Inch: .43 to .71"

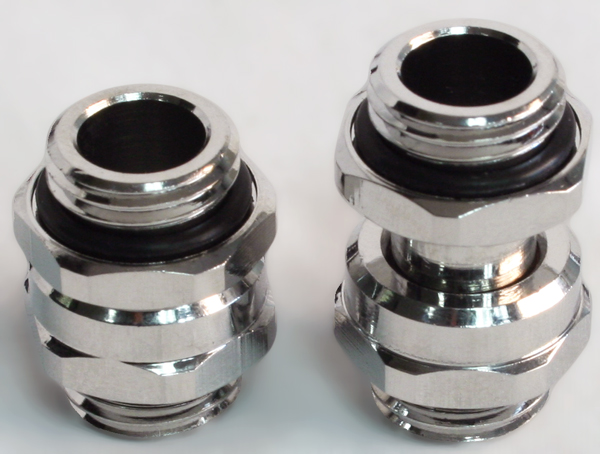

  • Finish: high polish natural or black chrome plating
  • G 1/4" Male threads
  • Hex nut: compatible with 5/8" or 16mm flat wrench




Applications examples

40mm/1.6" PCI spacing: Komodo HD7900 series waterblocks in CrossFireX with stock bridge

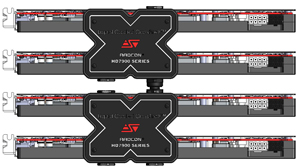

40mm/1.6" PCI spacing:  Komodo HD7900 series waterblocks in Quad CrossFireX with 1.6 XFire bridges


Dimensions




Recommended use

  • Initial Tip:  If possible, attach the fittings to the cooling devices first! While not mandatory,  it is always preferable to fasten a fitting to a cooling device prior to installing the device inside the case. This will eliminate interference issues that may be encountered when working with tools inside of space constrained enclosures.
  • Fasten the fitting by hand until it mates with the surface of the cooling device. The amount of force necessary to screw the fittings down in “finger tight” mating position may vary from one device to another depending on various factors.  Users are advised to always visually check on the actual position of the fitting relative to the device surface rather than solely relying on feel. There should be little -not to exceed the thickness of a sheet of paper, or no visible gap between the fitting lower lip and the device surface. See the illustration below.



  • For complete long-term safety and leak-free operations, Swiftech® recommends that the fittings be locked in place using the recommended tools and that the torque levels specified below be applied:

Recommended Torque

Soft Material

Minimum

Maximum (*)

Acetal (POM) and acrylics

1/4 of a turn after initial contact between mating surfaces

1/2 of a turn after initial contact between mating surfaces

Hard Materials

Recommended

Copper, brass, aluminum

1/8 of a turn after initial contact between mating surfaces

(*) For full 5mm thread depth – please inspect the device threads prior to applying the maximum
recommended torque – when partial threads exist due to application necessity, only apply the
minimum torque.





Recommended Tools



A small adjustable wrench with jaw opening up to 1” (25.4mm)
may be used as a universal tool instead of the specific tools listed below


Specific tool sizes

Male/male
Connectors
Fitting base hex:

Flat wrench
Lock Nut

Flat or adjustable wrench
G1/4 MMEXT Short (11-18mm)
Metric: 16mm
Inch: 5/8”

N/A

G1/4 MMEXT Medium (20-33mm)
Metric: 16mm
Inch: 5/8”
Metric: 17mm
Inch: adjustable wrench
G1/4 MMEXT Long  (41-65mm)
Metric: 16mm
Inch: 5/8”
Metric: 17mm
Inch: adjustable wrench
