Maelstrom V2 Dual Bay Reservoir


Price: From $3.95 to $139.95
Part Number: Maelstrom-V2
Bulk shipping information: 20 Pcs/Ctn

Product Options

Maelstrom V2 Dual Bay Res & Pump ($139.95)
Apogee XL CPU Waterblock ($64.95)
Apogee XLC CPU Waterblock ($64.95)
Helix 120mm PWM fan ($11.95)
Helix 140mm fan ($10.95)
½” Barb fittings (set of 2) ($3.95)
½” Compression fitting (each) ($5.99)
10 feet ½x¾" clear vinyl tubing ($14.00)
16 fl oz Hydrx coolant ($3.95)
8-Way PWM splitter-sata ($9.95)


Designed in the USA
ROHS Compliant
Product Description

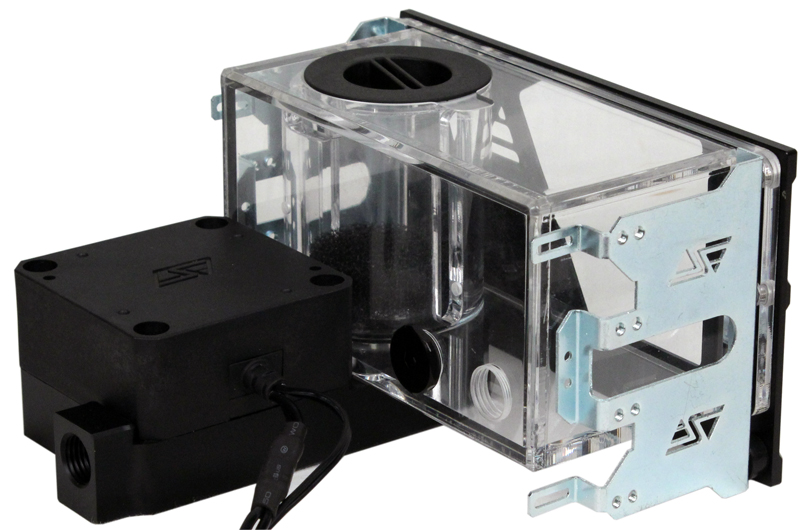

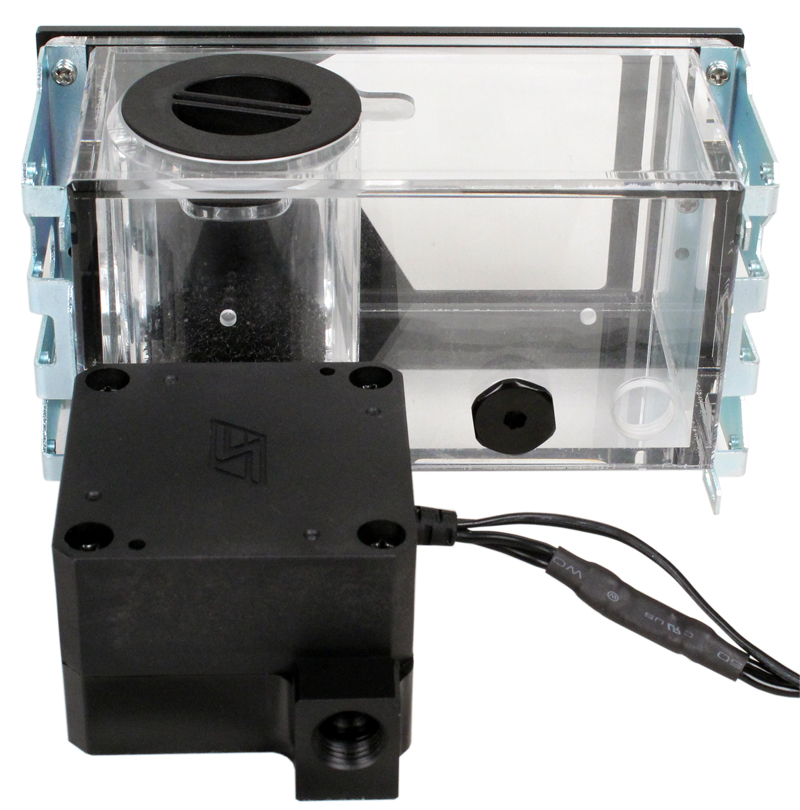

The Maelstrom V2  Dual Bay Reservoir is an advanced, versatile, and elegant coolant storage & recirculation system. It includes our new flagship extreme pressure MCP50X pump featuring 4.8 mH20 of head pressure and PWM control.

The Maelstrom V2 is meant to be the foundation of any extreme liquid cooling system thanks to its ability to "push" coolant through the most complex setups, including multiple radiators and waterblocks. As such this page also features recommended items to allow enthusiast users to build their own custom kit "à la carte".






Tab 1



Functional Features Benefits
Clear acrylic construction Visible coolant level
Flow path control Anti-vortex pump intake partition

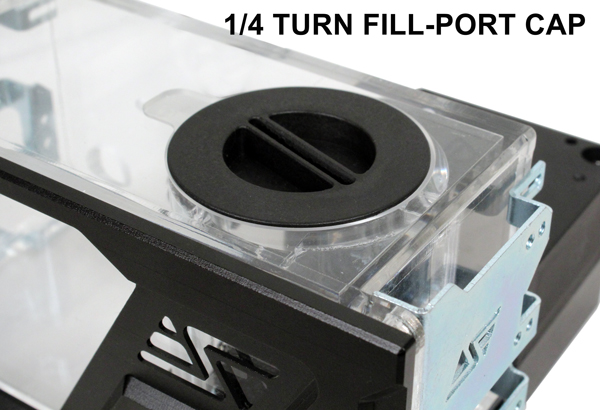

Push and twist fill-port cap Tool-less,  ease of use
Dual flow return ports Loop parallelization option
Standard CD/DVD mount points Universal compatibility
Performance Features Benefits

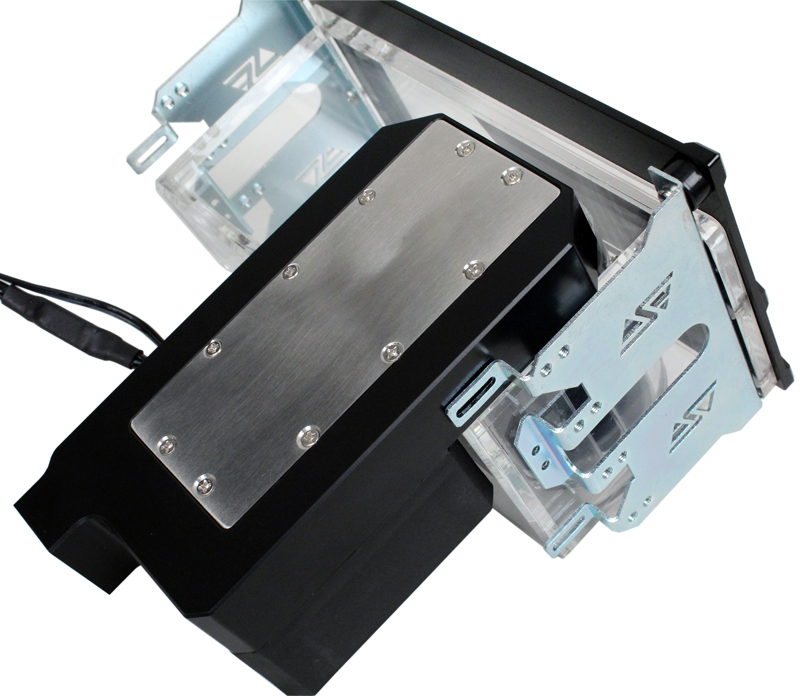

Buil-in MCP50X pump Extreme pressure (4.8mH2O) pump for the most complex loops
PWM control Speed adjustable from 1200 to 4500 rpm for flow and noise control
Cosmetic Features Benefits

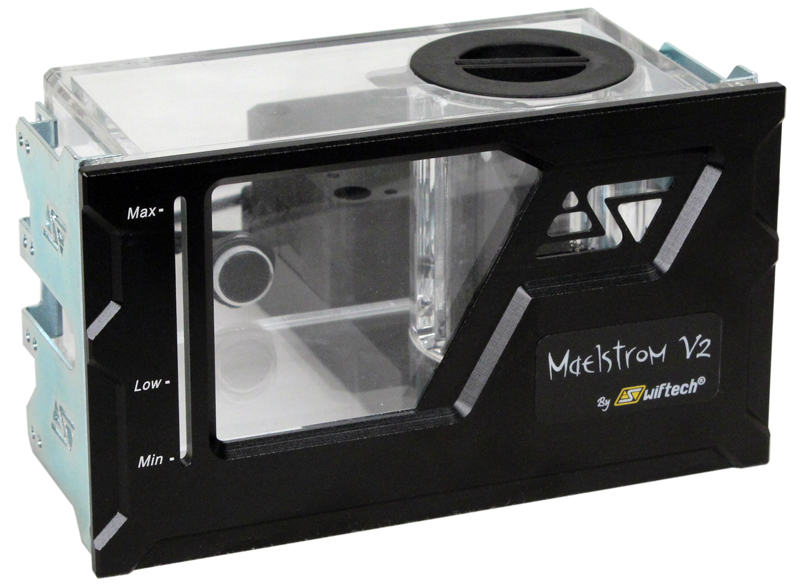

CNC machined and black anodized billet aluminum face plate with silk screened level Hi-tech custom look

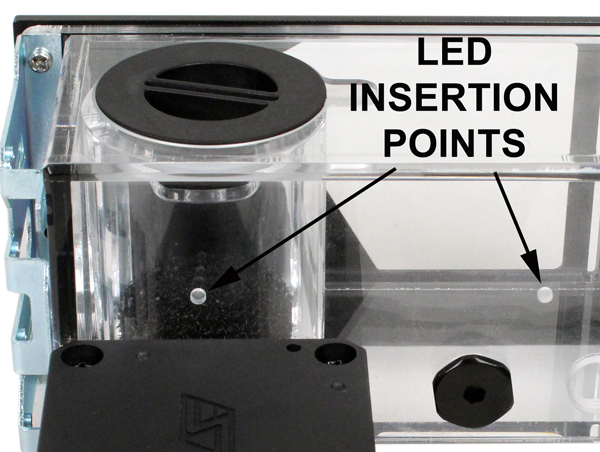

UV LED included Glowing coolant with UV reactive additives

Tab 2



Maelstrom V2 Dual bay Reservoir
Reservoir materials:
  • Face plate: Black anodized billet aluminum
  • Reservoir: Clear Acetal
  • Brackets: Nickel plated steel
  • Fill cap: plastic
  • Fitting: Brass
Assembly Dimensions:

Weight:
  • 16 Oz (453g)
Coolant Capacity:
  • 354 cm3 (12 fl oz)
LED
  • 3mm - UV
  • 3-Pin connector

MCP50X PUMP SPECIFICATIONS

Precautions of use


  • The recommended coolant is Swiftech's HydrX or Hydrx PM. Swiftech's product warranty does not cover the use of 3rd-party coolants.
  • Excessive use of coloring additives and/or UV dies containing particulate fillers may damage your pump bearing and may void your pump warranty.
  • The use of any additive or coolant containing alcohol is prohibited and dangerous: it will result in permanent damage to your acetal reservoir and may result in catastrophic leaks.




Tab 3

INSTALLATION GUIDES
English
French

Tab 4

No content

Related Products

MCRx20-QP "Quiet Power" Radiator Series
Price: From $39.95 to $82.95
MCRx20-QP "Quiet Power" Radiator Series
ratingratingratingratingrating
Low-Noise Optimized, High-performance, Slim form factor PC radiators, including mounting screws, fittings not included
MCRx20-XP "eXtreme Performance" Radiator Series
Price: From $39.95 to $88.95
MCRx20-XP "eXtreme Performance" Radiator Series
ratingratingratingratingrating
Hi Performance Medium speed fans Optimized, Slim form factor PC radiators, including mounting screws, fittings not included
MCRx40-QP "Quiet Power" Radiator Series
Price: From $44.95 to $64.95
MCRx40-QP "Quiet Power" Radiator Series
ratingratingratingratingrating
Low-Noise Optimized, High-performance, Slim form factor PC radiators, including mounting screws, fittings not included

End User Reviews

(3 Ratings, 1 Review) Average Rating:
ratingratingratingratingrating
ratingratingratingratingrating
Maelstrom V2 DB Reservior
Donald Mullikin (Williamston, SC) 5/12/2015 7:21 AM
This reservoir and pump combo look super in my case, LED in back adds color that really sets it apart from the plan Jane ones. The pump push the coolant around without any problem as fast or slow as you want it to. Easy to install and to add coolant because it is made to slide out some for adding coolant if needed. The pump removes all the little bubbles when filling and the strainer removes any small debris that might get into the system. To bad they only allow 5 stars I'd give it more if I could. Quiet also at almost any speed.
