MCP50X
Price: $69.95
Out of stock
Part Number: MCP50X
Bulk shipping information: 60 Pcs/Ctn

Product Description

Tab 1

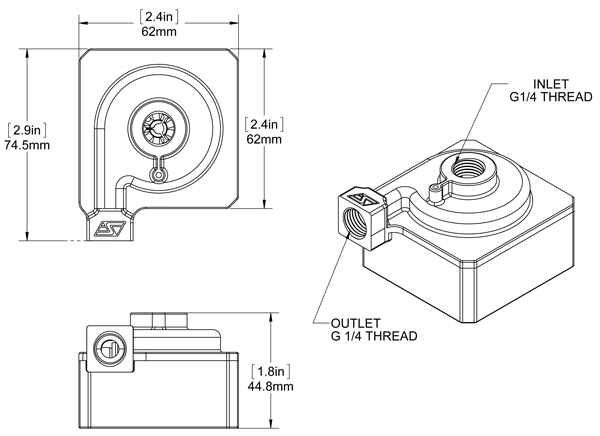

  • Small Footprint: 2.4" x 2.4" x 1.8";
  • 50,000 hours MTBF (Mean Time Between Failure) ;
  • 12 Volts DC
  • SATA connector
  • Variable speed control via PWM thru the motherboard, from 1200 rpm for completely silent operation, to 4500 rpm for ultra high flow performance;
  • Superior head pressure to any pump in the same class and footprint: the MCP50X is particularly well adapted to support multiple devices in the same loop, such as multiple radiators, and/or waterblocks;
  • G1/4" ports standard for compatibility with a large assortment of fittings;
  • Quick installation with adhesive neoprene pad, or permanent installation with supplied hardware;
  • Optional "built-in" reservoir;
  • 3 year warranty


Tab 2









Tab 3




Technical Specifications

Motor type Electronically commutated, brushless DC motor
Nominal voltage 12 V DC
Operating voltage range 7 to 13.4 V DC
Max. power (@12 V) 25.8 W
Max. current (@12 V) 2.15 A
Redundant Fail Safe Software current limiting fail-safe AND hardware shutoff built-into the pump power wires. The hardware fail safe is only triggered in case of a firmware malfunction.

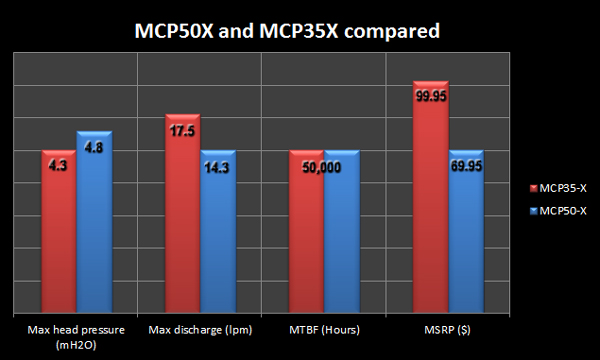

Max. head (@12 V) 15.8 ftH2O (4.8 mH2O)
Max. discharge (@12 V) 3.8 gpm (14.3 Lpm)
Max. pressure 22 PSI (1.5 BAR)
Temperature range Up to 140 °F (60 °C)
Electrical power  SATA connector
PWM + RPM Signals  4-pin connector
RoHS Compliant
Port thread standard G1/4
MTBF 50,000 Hours
Weight 7.6 oz



Tab 4

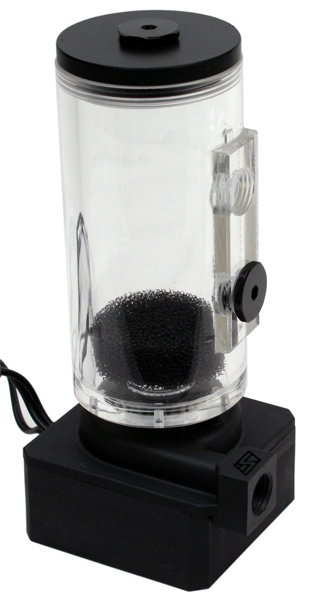

  • (2) G1/4 inlet ports for parallel loop splitting
  • Reservoir body can be rotated and locked in (6) different positions for convenient tube routing: at 12 o'clock, 2, 4, 6, 8, and 10 o'clock
  • Supports compression fittings up to 3/4" (tube OD)
  • Additional G1/4 port inside of the fill-cap can be used to install a remote fill-port
  • Ships with Swiftech® 1/2" chrome barb fittings and G1/4 port pluigs
  • Compression fittings sold separately by Swiftech® resellers
  • Cast acrylic body
  • Black Delrin fill-cap
  • Capacity: 10 cl

Tab 5

Documentation


Installation Guides

Pump - pdf

Reservoir - pdf



Tab 6



In depth review an comparisons with competing products from the experts at Thermal Bench




- Related Products -

Maelstrom V2 Dual Bay Reservoir
Price: $139.95
ratingratingratingratingrating
Maelstrom V2 Dual Bay Reservoir
Maelstrom V2 Dual Bay Reservoir and Pump System
MCP35X Reservoir
Price: $29.95
ratingratingratingratingrating
MCP35X Reservoir
Optional reservoir for the MCP35X pump

End User Reviews

(7 Ratings, 1 Review) Average Rating:
ratingratingratingratingrating
ratingratingratingratingrating
Excellent Pump
kewldude (Springfield Gardens, NY) 2/28/2015 10:28 AM
This pump is an excellent choice its really low noise and high performance. I am using two of these pumps to drive my 1X480mm,1X360mm rad with dual CPU water blocks and Asus Ares iii. You can't here the pump noise at all.
