KOMODO NV-LE GTX1080 VGA Waterblock


Price: $162.95
Part Number: KOMODO NV-LE-GTX1080
Bulk shipping information: 12 Pcs/Ctn


Designed in the USA
ROHS Compliant
Product Description

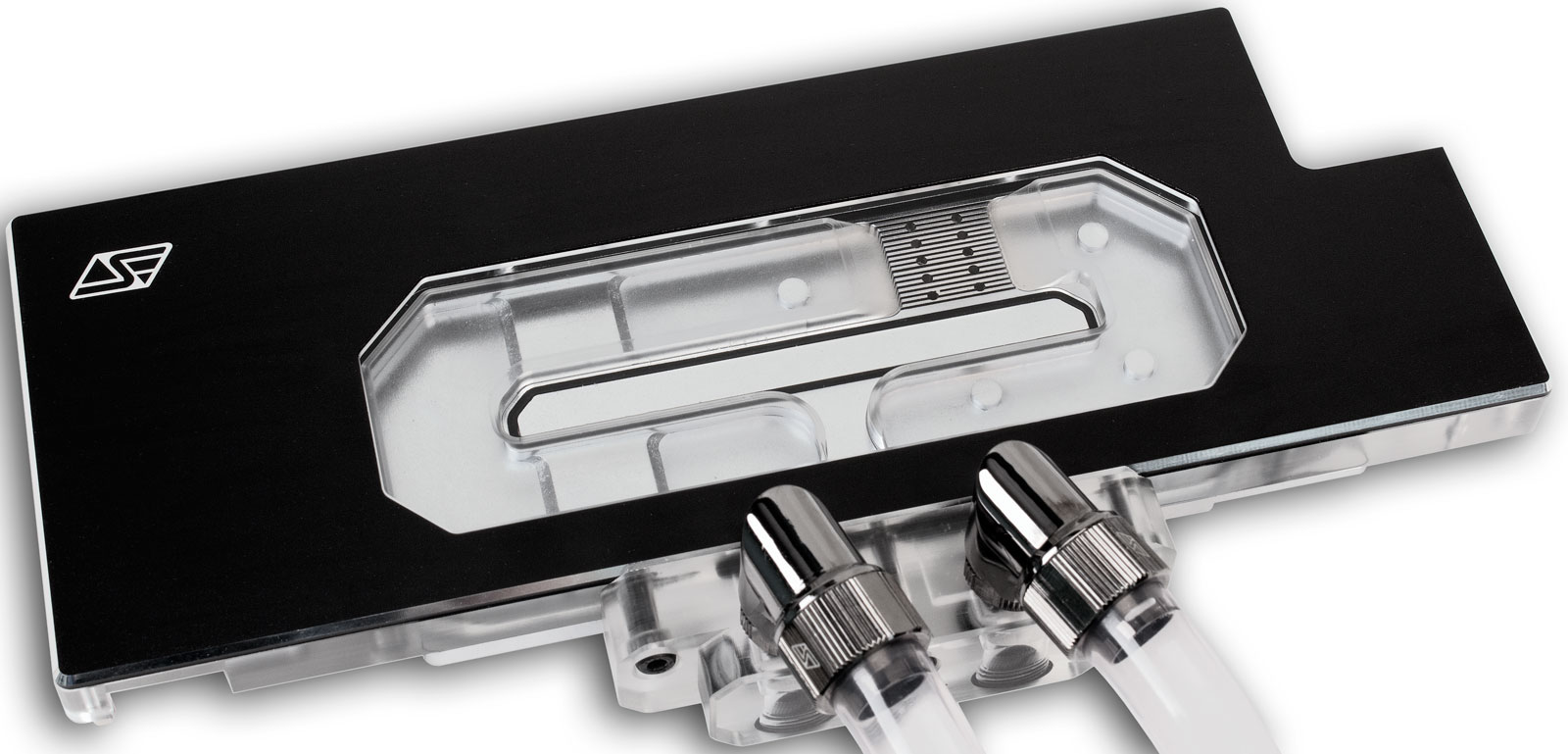

The Komodo™ NV-LE GTX 1080 full cover waterblock is a high performance cooling solution with advanced thermal design and low flow restriction, compatible with Nvidia's GeForce GTX 1080 and GTX 1070 flagship graphics cards reference PCB designs.   This model marks the beginning of our third generation of "Luxury Edition" VGA waterblocks focused on smooth and streamlined elegance, and is now introducing the use of a new RGB ALED lighting system compatible with all versions of Swiftech's X2 series CPU coolers. This will allow users to unify the color scheme of their entire cooling system at the push of a button.

The coolant flow path includes all critical components such as GPU, memory, power mosfets as well as all other power components specified in NVidia's "Thermal Solutions Design Guide". Proper cooling of all the critical components contributes to overclocking stability, reliable operations, and longevity of the graphics card.


The block housing and bridge are made of high quality acrylic material, allowing the back lighting system to shine through the edges of the block, the coolant window, and the bridge;  the base plate is made of chrome plated C110 copper with pre-installed thermal pads; the housing surface is dressed with a black anodized aluminum top plate featuring a central cutout to show the coolant flow path, and highlighted beveled edges;  the housing top plate is mirrored by a similarly finished back-plate, protecting and beautifying the back side of the graphics card.

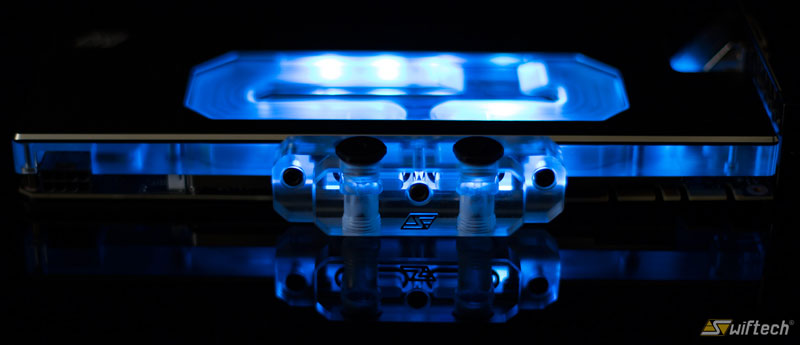

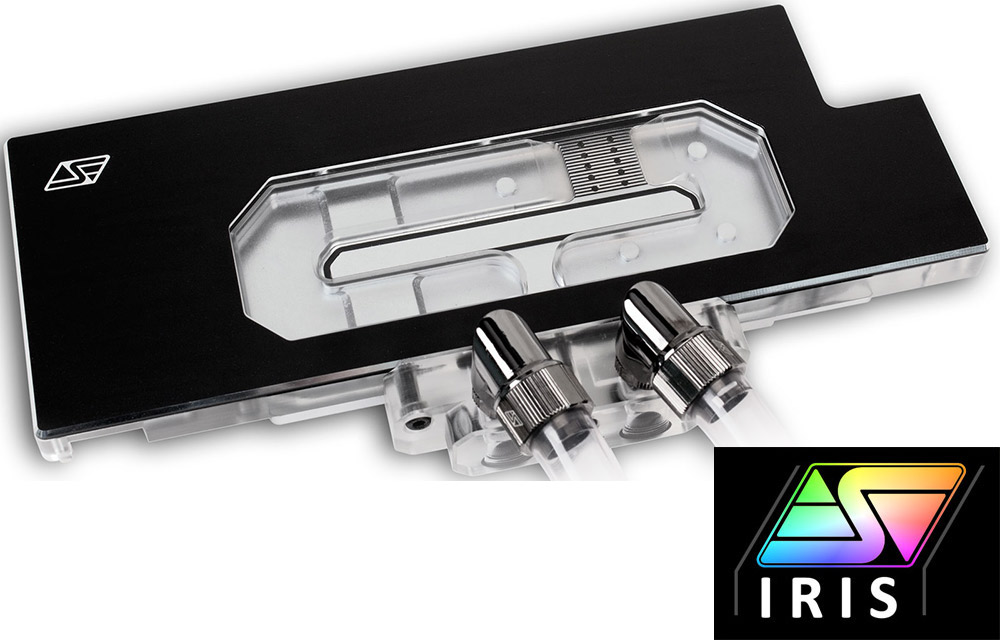

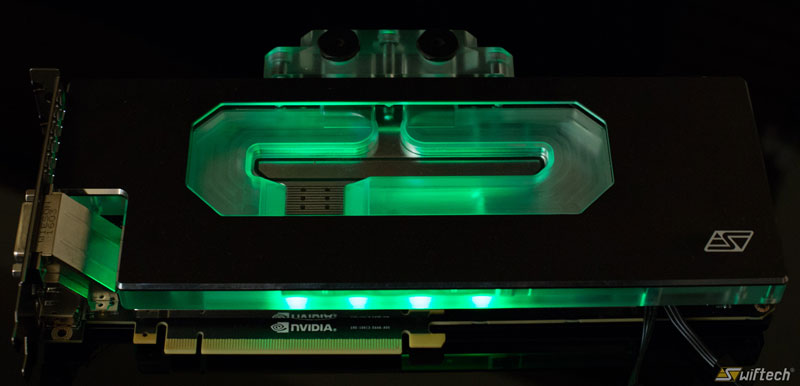

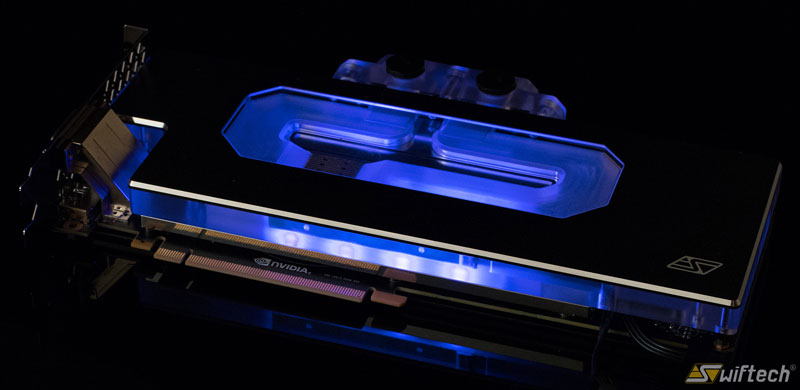

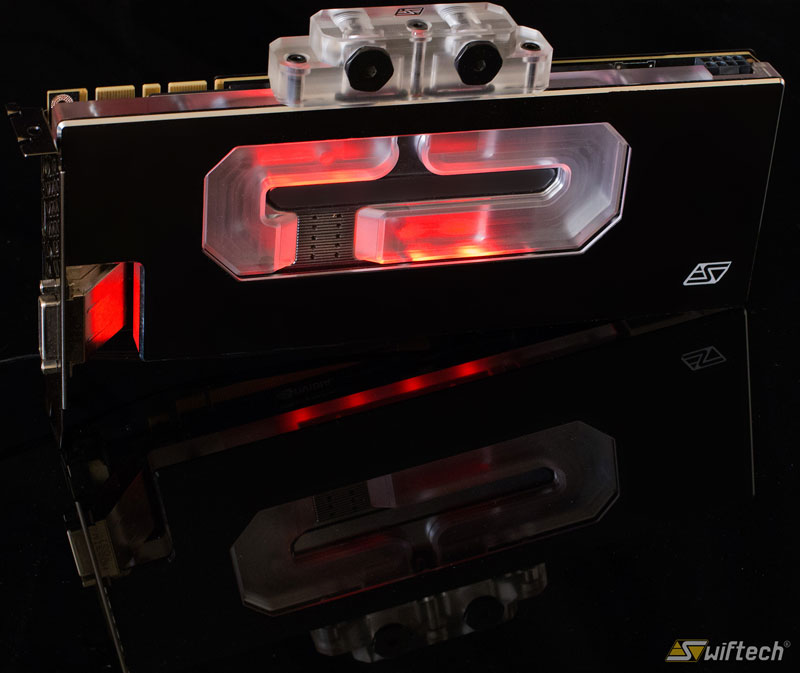

The new ALED technology allows users to change the lighting color scheme at the push of a button, using the included light controller, and is demonstrated below.





SLI installations:  Fully compatible with Swiftech's new Universal bridges. See the bridges product page.





Tab 1



Why is the Komodo NV-LE a superior cooling solution ?
The only true full cover water-block The blocks cover the full length of the card and utilizes all the original circuit board mounting points; this results in superior thermal interface with all the components, but more importantly it prevents bending and/or damage to the card compared to many competing solutions that leave critical components exposed for cost saving purposes; the Komodo NV-LE series continue this exclusive Swiftech® initiative as a true professional solution.
Moderate flow restriction by design The water channels are optimized for optimum flow rate in order to take into account multiple waterblocks in the same loop; additionally, the high efficiency of the thermal design authorizes better thermal performance at low flow rates.

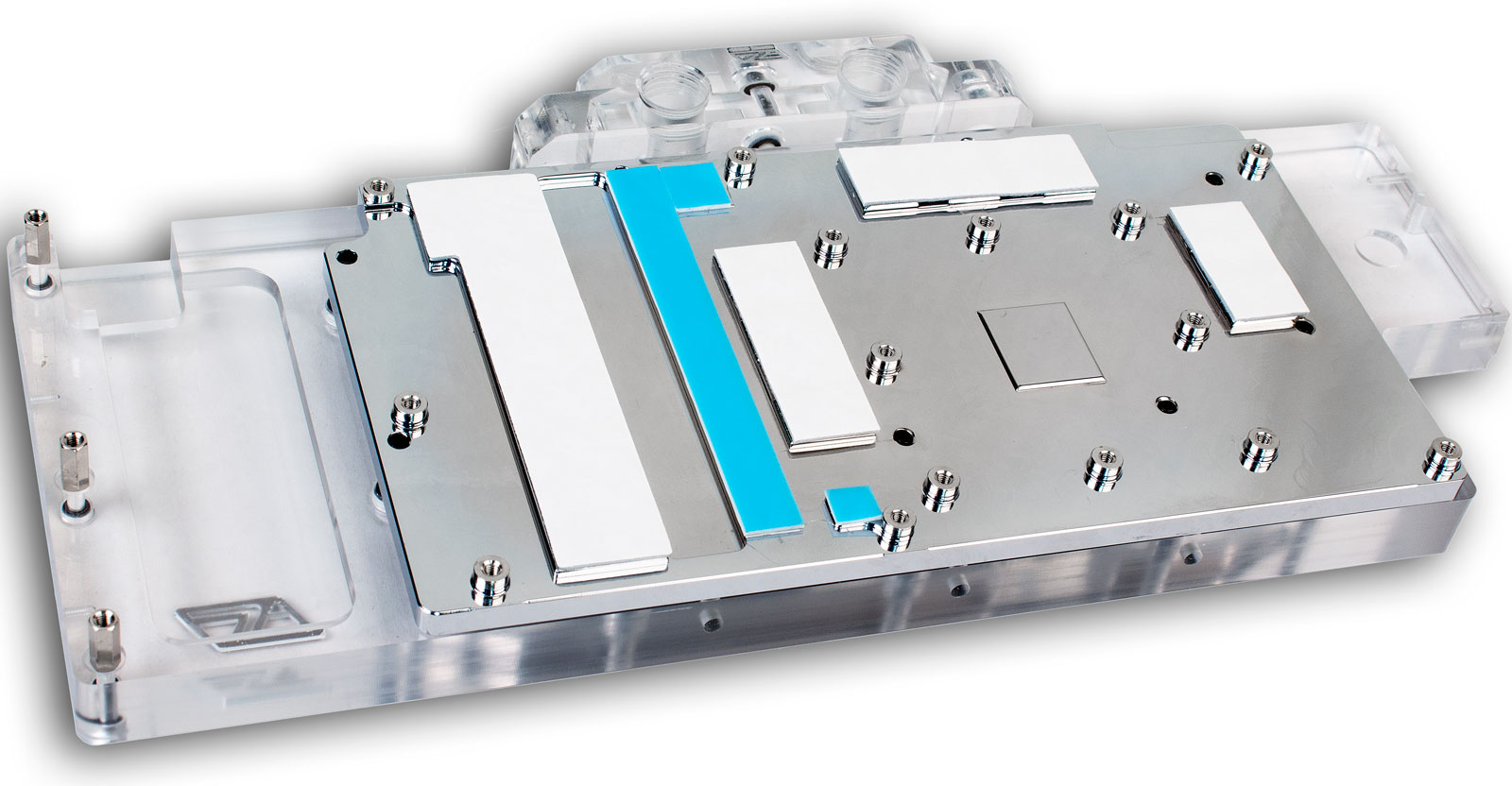

True Chrome Plated copper base plate Maintenance-free, corrosion-free, discoloration-free, and a brighter whiter color: the precision CNC machined copper base plate is plated with true chrome, as opposed to commonly used nickel plating (which is yellowish).
Precision CNC machined housing The main housing is precision CNC machined out of acrylic material.
Pre-applied thermal pads High conductivity thermal pads and reusable high performance gap-fillers are pre-applied to the memory, VR and other components;  there is no need to waste time cutting thermal pads as is often the case with competing solutions; our high quality Tim-Mate™ 2 thermal grease is included with the water-block for application to the GPU area.
SLI support
Up to four Komodo NV-LE GTX 1080 waterblocks can be interconnected using either Lok-Seal™ adjustable connector fittings, or our new upcoming generation of SLI bridges (to be announced).


Tab 2



What is included in the box
Water-block
ALED lighting system (pre-installed inside block)
Light controller (PWM splitter), and extension cable
Installation screws
Pre-installed thermal pads

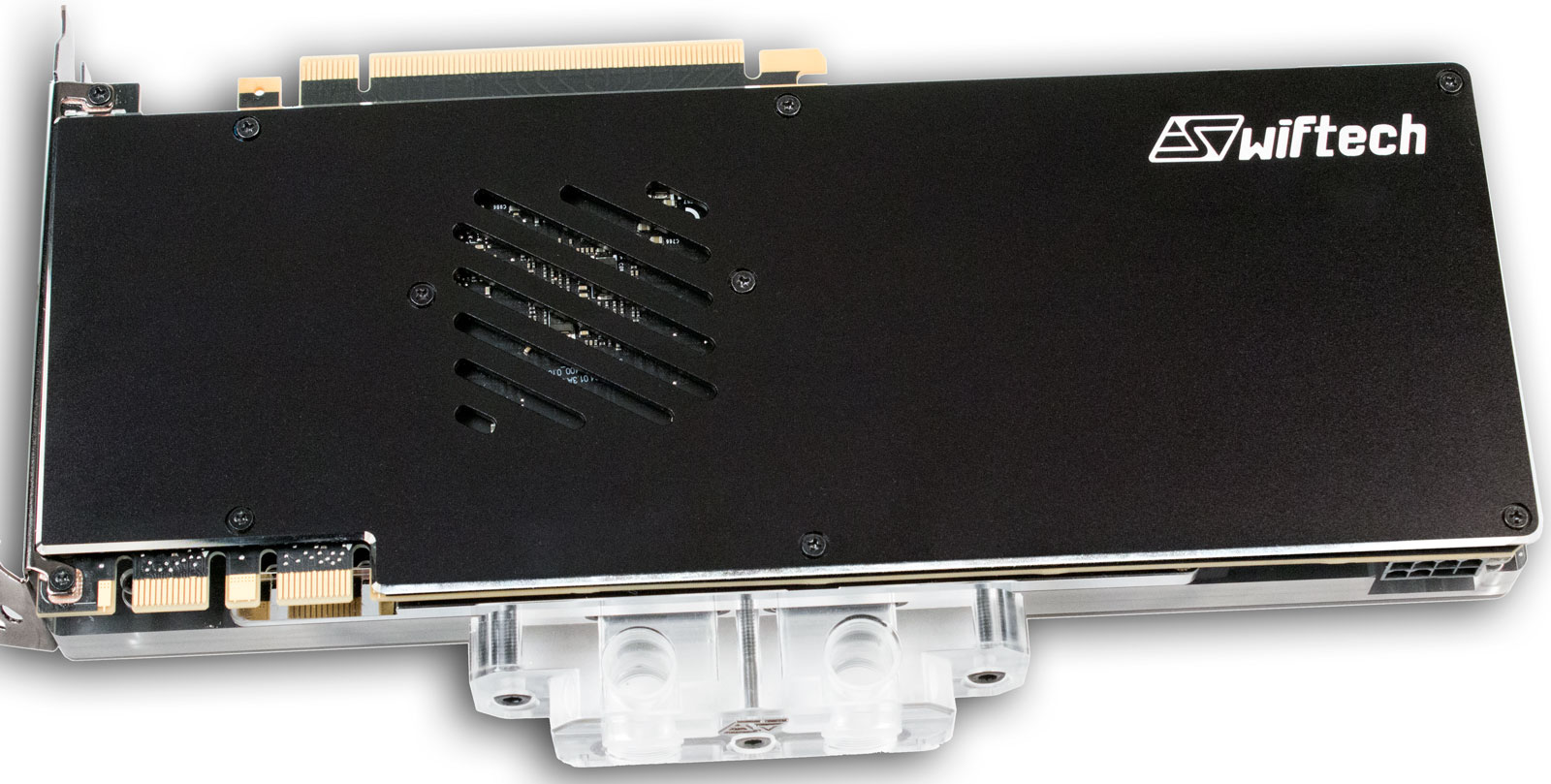

VGA back-plate
Tim Mate 2 Thermal grease
(2) G1/4 plugs
Installation guide

Technical Specifications
Inlet & Outlet port thread standard:: 1/4" BSPP (G1/4)
Quality assurance: leak tested at 30 PSI
Thermal joints installation:
  • GPU: thermal compound (included)
  • Memory & power fets: pre-installed 0.5mm thermal pads
  • Other components: high performance reusable 1mm gap filler
Housing material: acrylic
Base Plate material: Chrome plated C110 copper
Dimensions:  (L) 10.5" - 268mm x (W) 4.8" - 122mm x (H) .74" - 19mm (measured from GPU pedestal to top of housing)
Mass: 44 oz -  1247 g





Tab 3


The KOMODO-NV-LE GTX1080 is compatible with Nvidia® reference PCB designs PG413 (Geforce GTX1080) and PG411 (Geforce GTX1070).  The PCB revision number represents the deciding factor to go by when selecting your Swiftech product, rather than the brand and/or model number of the card.

Brand Model - PCB PG413 (GTX1080)
ASL GeForce GTX 1080 8GB Founders Edition
ASUS GeForce GTX 1080 8GB Founders Edition (90YV09W0-U0NA00)
BIOSTAR GeForce GTX 1080 8GB Founders Edition
Colorful GeForce GTX 1080 8GB GDDR5X Founders Edition
ELSA GeForce GTX 1080 8GB Founders Edition
ELSA GeForce GTX 1080 Ye-Batch Edition 8GB GDDR5X (GD1080-8GERXT)
EMTEK GeForce GTX 1080 8GB Founders Edition
EVGA GeForce GTX 1080 8GB ACX 3.0 (08G-P4-6181-KR)
EVGA GeForce GTX 1080 8GB Founders Edition (08G-P4-6180-KR)
EVGA GeForce GTX 1080 8GB GAMING (08G-P4-5180-KR)
EVGA GeForce GTX 1080 8GB SC GAMING (08G-P4-5182-KR)
EVGA GeForce GTX 1080 8GB SC GAMING ACX 3.0 (08G-P4-6183-KR)
FORSA GeForce GTX 1080 8GB Founders Edition
FORSA GeForce GTX 1080 8GB GAMING
GAINWARD GeForce GTX 1080 8GB Founders Edition (426018336-3620)
Galax Galax GeForce GTX 1080 Founders Edition 8GB GDDR5X (80NSJ6DHXXNM)
GALAX GeForce GTX 1080 8GB Virtual Edition
GIGABYTE GeForce GTX 1080 8GB Founders Edition (GV-N108HA-8GD5)
INNO3D GeForce GTX 1080 8GB Founders Edition (N1080-1DDN-P6DN)
INNO3D GeForce GTX 1080 8GB GAMING OC (N1080-1SDN-P6DNX)
INNO3D GeForce GTX 1080 8GB Twin X2 (N1080-1SDN-P6DN)
KFA2 GeForce GTX 1080 8GB Founders Edition (80NSJ6DHXXNK)
KFA2 KFA² GeForce GTX 1080 8GB GDDR5X (80NSJ6DHK5VK)
KUROUTOSHIKOU GeForce GTX 1080 8GB (GF-GTX1080-E8GB/BLF)
KUROUTOSHIKOU GeForce GTX 1080 8GB Founders Edition (GF-GTX1080-E8GB / FE)
KUROUTOSHIKOU GeForce GTX 1080 8GB OC (GF-GTX1080-E8GB / OC / DF)
LEADTEK GeForce GTX 1080 8GB WinFast
LEADTEK GeForce GTX 1080 8GB WinFast Founders Edition
MANLI GeForce GTX 1080 8GB (M-NGTX1080/5RGHDPPP)
MANLI GeForce GTX 1080 8GB Founders Edition
MANLI GeForce GTX 1080 8GB Gallardo (M-NGTX1080G/5RGHDPPP)
MANLI GeForce GTX 1080 8GB Twin Cooler (M-NGTX1080/5RGHDPPP)
MAXSUN GeForce GTX 1080 8GB Founders Edition
MSI GeForce GTX 1080 8GB 30th Anniversary Edition
MSI GeForce GTX 1080 8GB AERO
MSI GeForce GTX 1080 8GB AERO OC
MSI GeForce GTX 1080 8GB Founders Edition (912-V801-1289)
MSI GeForce GTX 1080 8GB SEA HAWK
MSI GeForce GTX 1080 8GB SEA HAWK X
PALIT GeForce GTX 1080 8GB Dual OC (NEB1080U15P2-1045D)
PALIT GeForce GTX 1080 8GB Founders Edition (NEB1080015P2-PG413F)
PNY GeForce GTX 1080 8GB (VCGGTX10808PB)
PNY GeForce GTX 1080 8GB Founders Edition (VCGGTX10808PB-CG)
PNY GeForce GTX 1080 8GB GDDR5X (GF1080GTXCD8GEPB)
PNY GeForce GTX 1080 8GB XLR8 GAMING (VCGGTX10808XGPB)
PNY GeForce GTX 1080 8GB XLR8 GAMING OC (VCGGTX10808XGPB-OC)
YESTON GeForce GTX 1080 8GB Deluxe Edition
YESTON GeForce GTX 1080 8GB Deluxe Edition (GTX 1080 8G D5 豪华版)
ZOTAC GeForce GTX 1080 8GB Founders Edition (ZT-P10800A-10P)

Brand Model - PCB PG411 (GTX1070)
ASL GeForce GTX 1070 8GB Founders Edition
ASUS GeForce GTX 1070 8GB Founders Edition (GTX1070-8G)
BIOSTAR GeForce GTX 1070 8GB Founders Edition
COLORFUL GeForce GTX 1070 8GB Founders Edition
ELSA GeForce GTX 1070 8GB Founders Edition
EMTEK GeForce GTX 1070 8GB Founders Edition
EVGA GeForce GTX 1070 8GB ACX 3.0 (08G-P4-6171-KR)
EVGA GeForce GTX 1070 8GB Founders Edition (08G-P4-6170-KR)
EVGA GeForce GTX 1070 8GB GAMING (08G-P4-5170-KR)
EVGA GeForce GTX 1070 8GB GAMING ACX 3.0 Black Edition (08G-P4-5171-KR)
EVGA GeForce GTX 1070 8GB HYBRID GAMING (08G-P4-6178-KR)
EVGA GeForce GTX 1070 8GB SC GAMING ACX 3.0 Black Edition (08G-P4-5173-KR)
EVGA GeForce GTX 1070 8GB SC GAMING MEA Edition (08G-P4-6173-KF)
FORSA GeForce GTX 1070 8GB Founders Edition
FORSA GeForce GTX 1070 8GB GAMING
GAINWARD GeForce GTX 1070 8GB Founders Edition
GALAX GeForce GTX 1070 8GB Founders Edition
GALAX GeForce GTX 1070 8GB Virtual Edition
GIGABYTE GeForce GTX 1070 8GB Founders Edition (GV-N1070D5-8GD-B)
INNO3D GeForce GTX 1070 8GB iChill X3 (C107V3-1SDN-P5DNX)
INNO3D GeForce GTX 1070 8GB iChill X4 (C107V4-1SDN-P5DNX)
INNO3D GeForce GTX 1070 8GB Twin X2 (N1070-1SDV-P5DN)
KFA² GeForce GTX 1070 8GB GDDR5 (70NSH6DHK6VK)
KFA² GeForce GTX 1070 Founders Edition 8GB GDDR5 (70NSH6DHXXNK)
KUROUTOSHIKOU GeForce GTX 1070 8GB (GF-GTX1070-E8GB / BLF)
KUROUTOSHIKOU GeForce GTX 1070 8GB Founders Edition (GF-GTX1070-E8GB / FE)
LEADTEK GeForce GTX 1070 8GB WinFast Founders Edition
MANLI GeForce GTX 1070 8GB (M-NGTX1070/5RGHDPPP)
MANLI GeForce GTX 1070 8GB Founders Edition (M-NGTX1070/5RGHDPPP)
MANLI GeForce GTX 1070 8GB Gallardo (M-NGTX1070G/5RGHDPPP)
MANLI GeForce GTX 1070 8GB Twin Cooler (M-NGTX1070/5RGHDPPP)
MANLI GeForce GTX 1070 8GB Ultimate (M-NGTX1070U/5RGHDPPP)
MAXSUN GeForce GTX 1070 8GB Founders Edition
MSI GeForce GTX 1070 8GB AERO
MSI GeForce GTX 1070 8GB Founders Edition
MSI GeForce GTX 1070 8GB SEA HAWK X
MSI GeForce GTX 1070 Aero 8G OC 8GB GDDR5 (V330-011R)
PALIT GeForce GTX 1070 8GB Founders Edition (NE51070015P2-PG411F)
PNY GeForce GTX 1070 8GB (VCGGTX10708PB)
PNY GeForce GTX 1070 8GB Founders Edition (VCGGTX10708PB-CG)
PNY GeForce GTX 1070 8GB V2 (VCGGTX10708PB)
PNY GeForce GTX 1070 8GB XLR8 GAMING (VCGGTX10708XGPB)
PNY GeForce GTX 1070 8GB XLR8 GAMING OC (VCGGTX10708XGPB-OC)
YESTON GeForce GTX 1070 8GB Founders Edition
Zotac GeForce GTX 1070 Founders Edition 8GB GDDR5 (ZT-P10700A-10P)

Brand Model -  (GTX1060)
EVGA GeForce GTX 1060 3GB FTW+ DT Gaming ACX 3.0 3GB GDDR5 (03G-P4-6365)
EVGA GeForce GTX 1060 3GB FTW+ Gaming ACX 3.0 3GB GDDR5 (03G-P4-6367)
EVGA GeForce GTX 1060 6GB FTW DT Gaming ACX 3.0 6GB GDDR5 (06G-P4-6266)
EVGA GeForce GTX 1060 6GB FTW Gaming ACX 3.0 6GB GDDR5 (06G-P4-6268)
EVGA GeForce GTX 1060 6GB FTW+ DT Gaming ACX 3.0 6GB GDDR5 (06G-P4-6366)
EVGA GeForce GTX 1060 6GB FTW+ Gaming ACX 3.0 6GB GDDR5 (06G-P4-6368)
EVGA GeForce GTX 1060 6GB SSC Gaming ACX 3.0 6GB GDDR5 (06G-P4-6267)
Inno3D GeForce GTX 1060 6GB Gaming OC 6GB GDDR5 (N1060-1SDN-N5GNX)
Inno3D iChill GeForce GTX 1060 6GB X3 6GB GDDR5 (C1060-1SDN-N5GNX)




Tab 4


Independant Reviews, and Related Product Reviews
Swiftech's Komodo NV-LE GPU Block receives HITech legion Editor's Choice Award - Read More
"the Komodo NV-LE exceeded all expectations in terms of performance. The gap between the Komodo NV-LE and the other blocks tested was large enough that I actually went back and remounted the other blocks to verify my findings"
