Komodo R9 FuryX Eco
Price: Starting at $29.95
Sale Price: Starting at $10.48
Part Number: KOMODO-R9 FuryX ECO
Bulk shipping information: 12 Pcs/Ctn

Product Options

Waterblock ($92.40)
Back Plate ($23.96)
on sale

Product Description
Product Description

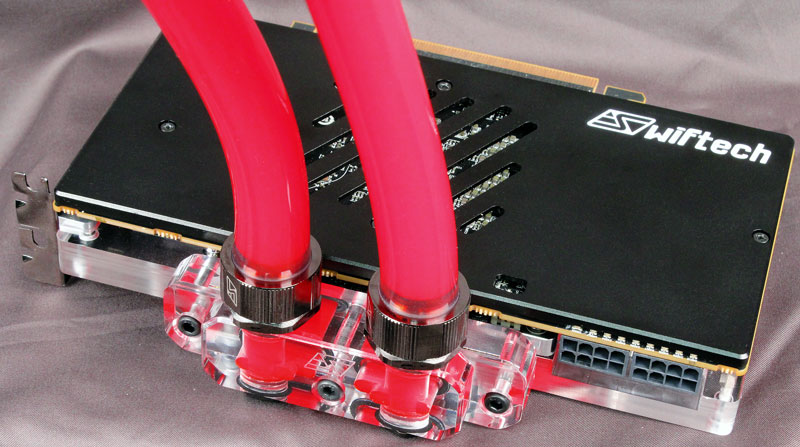

The Komodo-R9 FuryX Eco is a high performance cooling solution with advanced thermal design and low flow restriction compatible with AMD® Radeon R9 Fury and FuryX Graphics cards (AMD reference PCB design).  The coolant flow path includes all critical components such as GPU, memory and power mosfets. Proper cooling of all the critical components contributes to overclocking stability and reliable operations. The block covers the entire PCB, leaving no components exposed to possible damages during handling. An optional black anodized aluminum back plate is also available.




Tab 1



Why is the Komodo-R9 FuryX Eco a superior cooling solution ?
The only true full cover water-block The blocks cover the full length of the card and utilizes all the original circuit board mounting points; this results in superior thermal interface with all the components, but more importantly it prevents bending and/or damage to the card compared to competing solutions that leave critical components exposed for cost saving purposes.
Moderate flow restriction by design The water channels have been optimized for optimum flow rate in order to take into account multiple waterblocks in the same loop; additionally, the high efficiency of the thermal design authorizes better thermal performance at low flow rates.

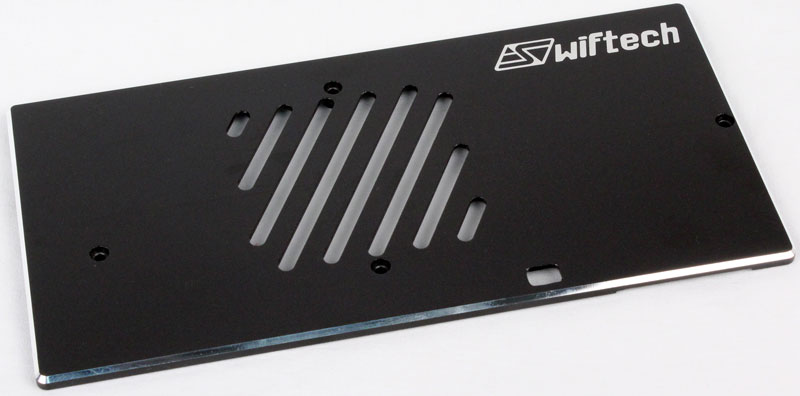

Back-plate A high quality black-anodized aluminum back-plate is available in option;  the original factory back plate is compatible with this product.

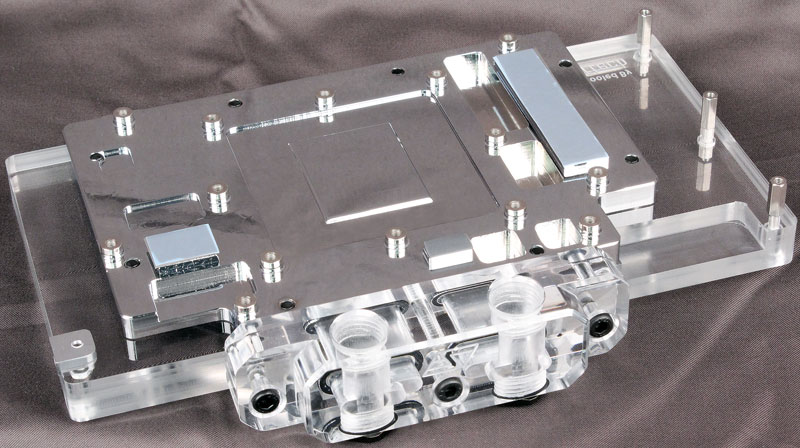

True Chrome Plated copper base plate Maintenance-free, corrosion-free, discoloration-free, and a brighter whiter color: the precision CNC machined copper base plate is plated with true chrome, as opposed to commonly used nickel plating (which is yellowish).

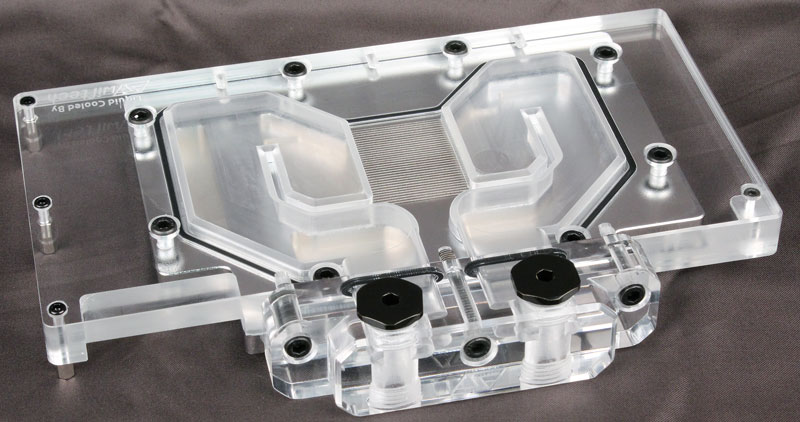

Precision CNC machined housing The housing is precision CNC machined out of top quality Acrylic material.
Pre-applied thermal pads High conductivity thermal pads are applied to the memory and VRM areas;  there is no need to waste time cutting thermal pads as is often the case with other blocks; high quality Tim-Mate™ 2 thermal grease is included with the water-block for application to the GPU area.
SLI support
Depending on your motherboard, up to four Komodo-R9 FuryX Eco waterblocks can be interconnected using Lok-Seal™ adjustable connector fittings.


Tab 2



What is included in the box
Water-block
Installation screws
Pre-installed thermal pads
Tim Mate 2 Thermal grease
(2) G1/4 plugs
Installation guide

Technical Specifications
Inlet & Outlet port thread standard:: 1/4" BSPP (G1/4)
Quality assurance: leak tested at 30 PSI
Thermal joints installation:
  • GPU: thermal compound (included)
  • Memory & power fets: pre-installed 0.5mm thermal pads
Housing material: Acrylic
Base Plate material: Chrome plated C110 copper
Optional back-plate material: Black anodized aluminum
Dimensions:  (L) 7.5" - 190mm x (W) 4.8" - 123mm x (H) .79" - 20mm (measured from GPU pedestal to top of housing)
Mass: 39 oz -  1105 g





Tab 3


Compatibility

The Komodo-R9 FuryX Eco is compatible with AMD® Radeon reference PCB designs (109-C88037-00_04).   The PCB revision number represents the deciding factor to go by when selecting your Swiftech product,rather than the brand and/or model number of the card. AMD® reference design boards usually bear the AMD® logo, with the PCB number positioned directly below it.  Please carefully inspect your card to locate the PCB revision number.

Brand Model
AMD Radeon R9 Fury X 4GB HBM
ASUS R9FURYX-4G Radeon R9 Fury X 4GB HBM (90YV08N0-U0NA00)
GIGABYTE Radeon R9 Fury X 4GB HBM (GV-R9FURYX-4GD-B)
MSI R9 Fury X 4G Radeon R9 Fury X 4GB HBM (V803-001R)
PowerColor Radeon R9 Fury 4GB HBM (AXR9 FURY 4GBHBM-DH)
PowerColor Radeon R9 Fury X 4GB HBM (AX R9 FURY X 4GBHBM-DH)
Sapphire Radeon R9 Fury Tri-X 4GB HBM (11247-00)
Sapphire Radeon R9 Fury Tri-X OC 4GB HBM (11247-01)
Sapphire Radeon R9 Fury X 4GB HBM (21246-00-40G)
VisionTek Radeon R9 Fury X 4GB HBM (900814)
VTX3D Radeon R9 Fury X 4GB HBM (VX R9 FURY X 4GBHBM-DH)
XFX Radeon R9 Fury Air-Cooled 4GB HBM
XFX Radeon R9 Fury Liquid-Cooled 4GB HBM
XFX Radeon R9 Fury X 4GB HBM (R9-FURY-4QFA)


Installation Guides (PDF)
