Komodo NV GTX TITAN X
Price: $29.95
Sale Price: $14.98
You Save: $14.97
Out of stock
Part Number: KOMODO-NV-TITAN-X-ECO
Bulk shipping information: 12 Pcs/Ctn

Product Options

Back Plate ($23.96)
on sale

Product Description
Product Description

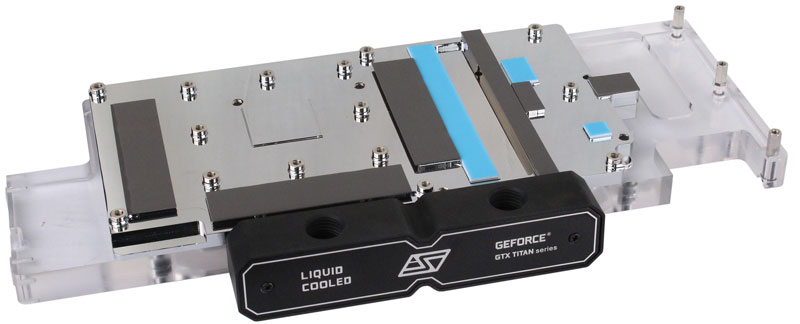

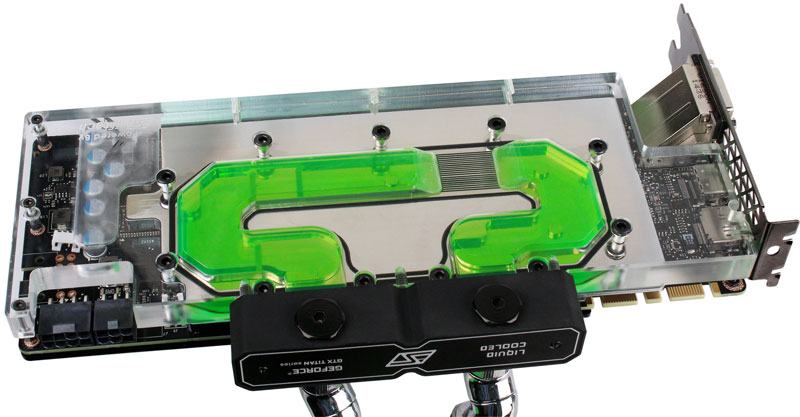

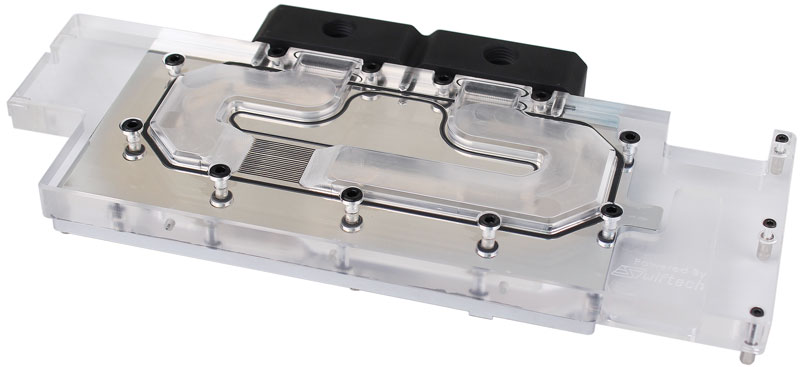

The Komodo™ NV TITAN X ECO full cover waterblock is a high performance cooling solution with advanced thermal design and low flow restriction, compatible with Nvidia's GeForce GTX TITAN X, and GTX 980 TI flagship graphics cards using Nvidia's reference PCB design (PG600).

The coolant flow path includes all critical components such as GPU, memory, power mosfets as well as all other power components specified in NVidia's "Thermal Solutions Design Guide". Proper cooling of all the critical components contributes to overclocking stability, reliable operations, and longevity of the graphics card.

In contrast to many competing liquid cooling solutions that prioritize cost savings over function, Swiftech Komodo-NV blocks covers the entire video card, leaving no components exposed to possible damages during handling. The block is constructed out of high quality acrylic material, and Swiftech's trademarked chrome plated copper base. Chrome plating is a step up compared to standard nickel plated solutions offered elsewhere because of its true white appearance (Nickel is yellowish), and superior durability.

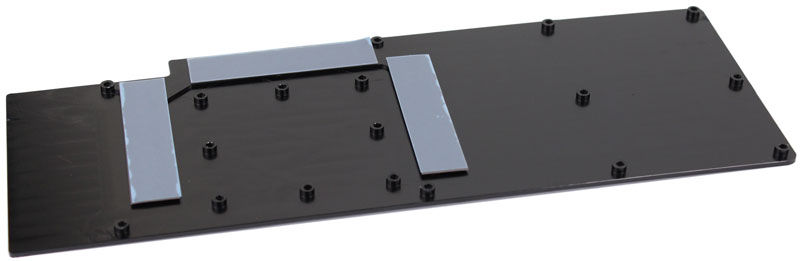

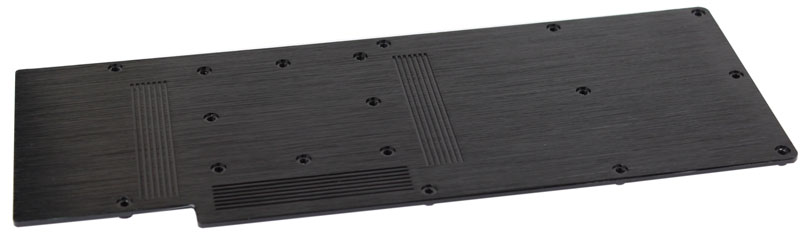

An optional back plate made of brushed black anodized aluminum is also available and it provides additional cooling for the backside memory modules in the Titan X model, protection for the components, and a finished high tech look for high-end builds. The back plate is fully compatible with the GTX980 TI version of the card.





Tab 1



Why is the Komodo-NV a superior cooling solution ?
The only true full cover water-block The blocks cover the full length of the card and utilizes all the original circuit board mounting points; this results in superior thermal interface with all the components, but more importantly it prevents bending and/or damage to the card compared to competing solutions that leave critical components exposed for cost saving purposes; the Komodo-NV series continue this exclusive Swiftech® initiative as a true professional solution (an industry first).
Moderate flow restriction by design The water channels have been optimized for optimum flow rate in order to take into account multiple waterblocks in the same loop; additionally, the high efficiency of the thermal design authorizes better thermal performance at low flow rates.
True Chrome Plated copper base plate Maintenance-free, corrosion-free, discoloration-free, and a brighter whiter color: the precision CNC machined copper base plate is plated with true chrome, as opposed to commonly used nickel plating (which is yellowish).
Precision CNC machined housing The main housing is precision CNC machined out of acrylic material.
Pre-applied thermal pads High conductivity thermal pads and reusable high performance gap-fillers are pre-applied to the memory, VR and other components;  there is no need to waste time cutting thermal pads as is often the case with other blocks; high quality Tim-Mate™ 2 thermal grease is included with the water-block for application to the GPU area.
SLI support
Depending on your motherboard, up to four Komodo-NV Titan X ECO waterblocks can be interconnected using Lok-Seal™ adjustable connector fittings.


Tab 2



What is included in the box
Water-block
Installation screws
Pre-installed thermal pads
A back-plate is NOT included (optional back-plate available)
Tim Mate 2 Thermal grease
(2) G1/4 plugs
Installation guide

Technical Specifications
Inlet & Outlet port thread standard:: 1/4" BSPP (G1/4)
Quality assurance: leak tested at 30 PSI
Thermal joints installation:
  • GPU: thermal compound (included)
  • Memory & power fets: pre-installed 0.5mm thermal pads
  • Other components: high performance reusable 1mm gap filler
Housing material: acrylic
Base Plate material: Chrome plated C110 copper
Dimensions:  (L) 10.5" - 268mm x (W) 4.8" - 122mm x (H) .74" - 19mm (measured from GPU pedestal to top of housing)
Mass: 44 oz -  1247 g





Tab 3


Compatibility

The Komodo-NV TITAN X ECO is compatible with Nvidia reference PCB design PG600.  The PCB revision number represents the deciding factor to go by when selecting your Swiftech product,rather than the brand and/or model number of the card.

Brand Model
ASUS GTX980TI-6GD5 GeForce GTX 980 Ti 6GB GDDR5 (90YV08M0-U0NM00)
ASUS GTXTITANX-12GD5 GeForce GTX Titan X 12GB GDDR5 (90YV0810-U0NA00)
Colorful GeForce GTX TITAN X 12GB
ELSA GeForce GTX 980 Ti 6GB GDDR5
EVGA GeForce GTX 980 Ti 6GB GDDR5 (06G-P4-4990)
EVGA GeForce GTX 980 Ti ACX 2.0+ 6GB GDDR5 (06G-P4-4991)
EVGA GeForce GTX 980 Ti Hybrid 6GB GDDR5 (06G-P4-1996)
EVGA GeForce GTX 980 Ti Hydro Copper 6GB GDDR5 (06G-P4-4999)
EVGA GeForce GTX 980 Ti Superclocked 6GB GDDR5 (06G-P4-4992)
EVGA GeForce GTX 980 Ti Superclocked ACX 2.0+ 6GB GDDR5 (06G-P4-4993)
EVGA GeForce GTX 980 Ti Superclocked+ ACX 2.0+ 6GB GDDR5 (06G-P4-4995)
EVGA GeForce GTX Titan X 12GB GDDR5 (12G-P4-2990)
EVGA GeForce GTX Titan X Hybrid 12GB GDDR5 (12G-P4-1999)
EVGA GeForce GTX Titan X Hydro Copper 12GB GDDR5 (12G-P4-2999)
EVGA GeForce GTX Titan X SuperClocked 12GB GDDR5 (12G-P4-2992)
Gainward GeForce GTX 980 Ti 6GB GDDR5 (3446)
Gainward GeForce GTX 980 Ti Phoenix 6GB GDDR5 (3484)
Gainward GeForce GTX 980 Ti Phoenix Golden Sample 6GB GDDR5 (3477)
Gainward GeForce GTX Titan X 12GB (426018336-3439)
GALAX GeForce GTX TITAN X 12GB (TIXXH5DH00G0)
GIGABYTE GeForce GTX 980 Ti 6GB GDDR5 (GV-N98TD5-6GD-B)
GIGABYTE GeForce GTX Titan X 12GB GDDR5 (GV-NTITANXD5-12GD-B)
GIGABYTE GeForce GTX Titan X Xtreme 12GB GDDR5 (GV-NTITANXXTREME-12GD-B)
Inno3D GeForce GTX 980 Ti 6GB GDDR5 (N980-1DDN-M5DN/N98T-1DDN-N5HN)
Inno3D GeForce GTX 980 Ti HerculeZ X3 6GB GDDR5 (N98TV-1SDN-N5HNX)
Inno3D GeForce GTX Titan X 12GB GDDR5 (NTX-1DDN-O5HN)
Inno3D iChill GeForce GTX 980 Ti Black Accelero Hybrid S 6GB GDDR5 (C98TP-1SDN-N5HNX)
Inno3D iChill GeForce GTX 980 Ti HerculeZ X3 Air Boss Ultra 6GB GDDR5 (C98T3-1SDN-N5HNX)
Inno3D iChill GeForce GTX 980 Ti HerculeZ X4 Air Boss Ultra 6GB GDDR5 (C98T4-1SDN-N5HNX)
Inno3D iChill GeForce GTX 980 Ti X3 DHS 6GB GDDR5 (C98TX-1SDN-N5HNX)
KFA² GeForce GTX 980 Ti 6GB GDDR5 (98IRH5DH00GA)
KFA² GeForce GTX 980 Ti 6GB GDDR5 (98IRH5DHG1SI)
KFA² GeForce GTX 980 Ti OC 6GB GDDR5 (98IRH5DH9WGT)
KFA² GeForce GTX 980 Ti OC Black Edition 6GB GDDR5 (98IRH5DHH2CG)
KUROUTOSHIKOU GeForce GTX TITAN 12GB (GF-GTX-TITAN-X-12GB)
MSI GeForce GTX 980 Ti Sea Hawk 6GB GDDR5 (V323-020R)
MSI GeForce GTX TITAN X 12GB (NTITAN X 12GD5)
MSI GTX 980Ti 6GD5 GeForce GTX 980 Ti 6GB GDDR5 (V801-1283R)
MSI GTX 980Ti 6GD5 V1 GeForce GTX 980 Ti 6GB GDDR5 (V323-008R)
MSI NTITAN X 12GD5 GeForce GTX Titan X 12GB GDDR5 (V801-1279R)
Nvidia GeForce GTX 980 Ti 6 GB GDDR5
Nvidia GeForce GTX Titan X 12GB GDDR5
Nvidia Quadro M6000 12GB GDDR5
Nvidia Quadro M6000 24GB GDDR5
Palit GeForce GTX 980 Ti 6GB GDDR5 (NE5X98T015JBF)
Palit GeForce GTX 980 Ti Jetstream 6GB GDDR5 (NE5X98T015JBJ)
Palit GeForce GTX 980 Ti Super Jetstream 6GB GDDR5 (NE5X98TH15JBJ)
Palit GeForce GTX Titan X 12GB GDDR5 (NE5XTIX015KB-PG600F)
PNY GeForce GTX 980 Ti 6GB GDDR5 (GF980IGTX6GEPB)
PNY GeForce GTX 980 Ti XLR8 OC 6GB GDDR5 (KF980IGTX6GEPB)
PNY GeForce GTX Titan X 12GB GDDR5 (TCSGTXTITANX-PB)
PNY Quadro M6000 12GB GDDR5 (VCQM6000-PB/XVCQM6000-PB)
PNY Quadro M6000 24GB GDDR5 (VCQM6000-24GB-PB)
Zotac GeForce GTX 980 Ti 6GB GDDR5 (ZT-90501-10P)
Zotac GeForce GTX 980 Ti AMP! 6GB GDDR5 (ZT-90503-10P)
Zotac GeForce GTX 980 Ti ArcticStorm 6GB GDDR5 (ZT-90502-10P)
Zotac GeForce GTX TITAN X 12GB GDDR5 (ZT-90401-10P)
Zotac GeForce GTX Titan X Arctic Storm 12GB GDDR5 (ZT-90402-10P)


Installation Guides (PDF)


Tab 4


Independant Reviews, and Related Product Reviews
Swiftech's Komodo NV-LE GPU Block receives HITech legion Editor's Choice Award - Read More
"the Komodo NV-LE exceeded all expectations in terms of performance. The gap between the Komodo NV-LE and the other blocks tested was large enough that I actually went back and remounted the other blocks to verify my findings"
