HD6970 Heatsink


Price: From $32.95 to $80.90

Product Options

Heatsink or MCW82 Combo:


Designed in the USA
ROHS Compliant
Introduction

The HD6970 heatsink is designed to cool surface mount components (memory, and mosfets) on the most recent revision of ATI Radeon™ HD 6970 2Gb Series Reference Design boards, as well as (1) HD 6950 2Gb Series reference design graphics board. Compatible Brand Models and PCB versions are listed hereafter.

The Heatsink is designed to be installed in conjunction with our MCW60, MCW80 and MCW82 VGA waterblocks and to allow stable overclocks of these high-end graphic cards while keeping them cool and silent or very quiet. For high-overclock applications where maximum voltage is added to the card, an optional slow speed (quiet) 80mm fan can be added to complement cooling of the power MOSFETS, resulting in up to 30% drop in these components temperature compared to stock cooling.

The performance advantage of  hybrid cooling which consists in cooling the GPU with a universal waterblock in combination with a heatsink compared to using a full-cover water-block solutions is well known among enthusiast users: improved thermal dissipation at the GPU level thanks to Swiftech's Diamond Pin Matrix and a better TIM joint, and less heat dumped into the liquid cooling loop coming from memory, and power MOSFETS since they remain air cooled. In addition, this combination provides a complete solution that is more economical than full-cover waterblocks because the GPU waterblock can be re-used over time with different VGA cards.

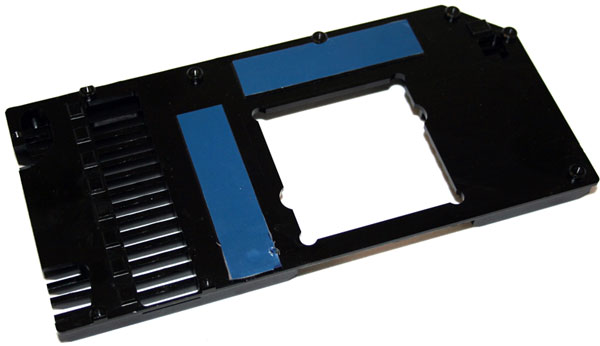

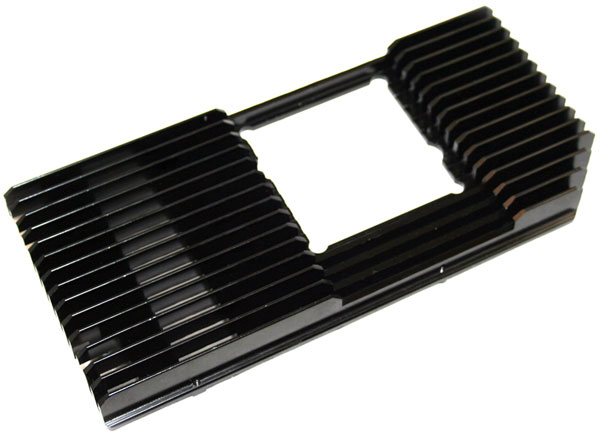

The heatsink is a custom Aluminum extrusions, and it is precision CNC machined to allow optimum TIM joints with the hottest components such as the voltage regulator modules, where high performance thermal grease is to be used. Less heat intensive components such as memory receive pre-applied thermal pads, as shown below.

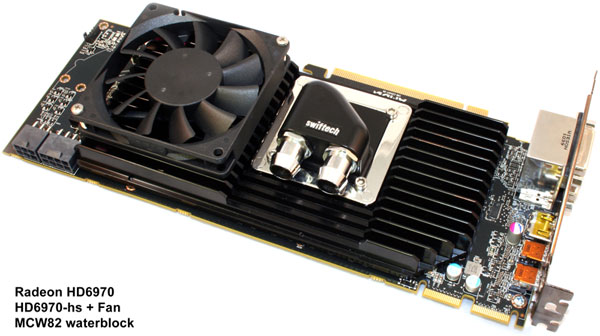

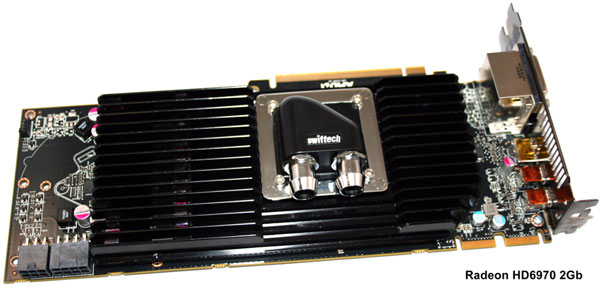

Examples of installation


Specifications
  • Material: black anodized aluminum extrusion
  • Dimensions (Inch): 7 1/2 " (L) x 3 5/8" (W) x .7" (H)
  • Dimensions (Metric): 162mm (L) x 92mm (W) x 18mm (H)
  • Weight: 8.4 oz (238 g)
  • Installation: high thermal conductivity pad for memory and direct-touch for power MOSFETS (Arctic Ceramique included).
  • Pre-existing mount holes for optional 80mm fan (2 in diagonal)
Support - (This list will be updated as new models using the latest PCB revision are introduced)

Critical information:

The PCB revision numbers noted below represent the deciding factor to go by when selecting your Swiftech product,
rather than the brand and/or model number of the card.

Please carefully inspect your card to locate the PCB revision number. All brands using AMD reference PCB's normally
print this number on the card. It is usually located immediately above the gold PCI contacts (GPU side of the board).

Here is an example showing a PCB number 109-C20547 (the -00P at the end can be ignored)
Caution: 1 digit may make the difference between supported or not supported!




Radeon™ HD 6970 2 Gb Series

Brand Model

PCB #

Compatible

Any 109-C20431 Yes
ASUS EAH6970 DCII/2DI4S/2GD5 Radeon™ HD 6970 2GB  Unknown No
DIAMOND 6970PE52G Radeon™ HD 6970 2GB 109-C20047  No
GIGABYTE GV-R697OC2-2GD Radeon™ HD 6970 2GB  Unknown No
HIS H697F2G2M Radeon™ HD 6970 2GB 109-C20047 No
HIS IceQ Turbo H697QT2G2M Radeon™ HD 6970 2GB  109-C20447 Yes
MSI R6970 Lightning Radeon™ HD 6970 2GB
  Unknown
No
MSI R6970-2PM2D2GD5 Radeon™ HD 6970 2GB 109-C20047 No
PowerColor PCS+ AX6970 2GBD5-PP2DHG Radeon™ HD 6970 Call of Duty Edition 2GB LF R99F Yes
SAPPHIRE 100311-2SR Radeon™ HD 6970 2GB 109-C20447 Yes
SAPPHIRE 100311BFVSR Radeon™ HD 6970 2GB 109-C20047 No
SAPPHIRE 100311SR Radeon™ HD 6970 2GB 109-C20047 No
VisionTek 900353 Radeon™ HD 6970 2GB - Same Model Number as below - Check PCB! C20401 Yes
VisionTek 900353 Radeon™ HD 6970 2GB -Same Model Number as above - Check PCB! C20047 No
XFX HD-697A-CNFC Radeon™ HD 6970 2GB- Same Model Number as below - Check PCB! 109-C20047 No
XFX HD-697A-CNFC Radeon™ HD 6970 2GB - Same Model Number as above - Check PCB! 109-C20447 Yes


Radeon™ HD 6950 2Gb Series

Brand Model PCB # Compatible
PowerColor PCS+ Vortex II Edition (COD Edition) AX6950 2GBD5-PPVG Radeon™ HD 6950 2GB LF R99F Yes
