H140-X CPU Liquid Cooling Kit


Price: $129.99
Sale Price: $84.99
You Save: $45.00
Part Number: H140-X
Bulk shipping information: 9 Pcs/Ctn


Designed in the USA
ROHS Compliant
Patent: Pending
Bulk Shipping Information: 9 Pcs/Ctn
on sale
5-5-15 - NEW accessory release

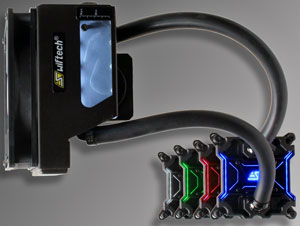

3 colored windows (Red, Blue, and Green) are now available for the integrated reservoir as a DIY accessory solution.  Dis-assembly of the reservoir is required, and product warranty will not be voided however, Swiftech will not guarantee the product for leaks once it has been disassembled by the user. The colored windows are available individually in the accessories section. Shown below on the H240-X CPU cooler version.

The patent pending H140-X  CPU liquid cooling system is the scaled down version of the award winning H220-X and H240-X cooling kits, formatted to fit space constrained systems. The radiator has been designed to exactly fit the width of a 140 mm fan, so that the product can be installed at the back of cases using a 140 mm exhaust fans without interference. The H140-X can also be installed at the top of the case, and there is sufficient tubing length to install it in this configuration.

The H140-X includes the same enthusiast grade components as the H220/H240-X kits, such as the built-in MCP30 pump, and the Apogee® XL waterblock. This product remains entirely focused on low to inaudible operating noise with extreme thermal performance, and it is engineered to appeal to the broadest possible spectrum of performance oriented users:

CASUAL USERS ENTHUSIAST USERS
  • The kit is shipped factory pre-filled, ready for plug-and-play installation, and it is maintenance free during its warranty period.
  • Both Swiftech's powerful MCP30 pump and high-pressure Helix fan are PWM compliant devices, allowing the H140-X to be recognized and speed-controlled by the motherboard depending on CPU temperature, just like a regular cooling fan.
  • As a bonus, the system also includes our PWM splitter allowing connection of up to 8 PWM devices which can then be controlled as one by the motherboard.
  • Finally, thanks to a clear and user-friendly pictorial installation guide, it could not be easier to install and setup!
  • The system can be entirely customized thanks to easily replaceable tubing and fittings.
  • Thanks to its powerful pump it can support additional liquid cooled components such as graphics cards and/or additional radiator(s).
  • The factory fittings can now be upgraded to any G1/4 compatible after-market fittings (an optional adapter is needed for the pump outlet and is available here, which allows enthusiast users to upgrade their system to 1/2" ID tubing if they wish to.

The H140-X leverages Swiftech's patent pending technology initially developed with the MCR-X20 Drive series of radiators; in this technology, the pump is fully integrated into the radiator instead of being built into the waterblock. Two major improvements were implemented compared to the original MCR-X20 series of radiators:

  • thanks to a revised placement of the pump and reservoir, the H140-X radiator is now the most compact 140mm heat exchanger on the market, thus facilitating installation of the unit in almost any case having space for a 140mm fan.

  • the reservoir is now transparent and LED backlit, allowing users to inspect the coolant level while enjoying the inner workings of the pump as can be seen below in a customized system featuring the smaller H220-X that we presented for CES 2014.
Image Source: xtremerigs.net

Finally, as an immediate benefit of this configuration we were able to use our new extreme performance flagship waterblock the  Apogee™ XL which resulted in enhanced thermal performance and flow rate, not to mention superb cosmetic appeal thanks to the XL's multi-color back-lighting capabilities. While only recently released, the Apogee XL has already received two Gold Awards below.







The H140-X carries Swiftech limited 3 year warranty.





Tab 1

From virtually silent to comfortable audible noise levels Our design objective for all Swiftech products is always to minimize the operating noise while preserving high thermal performance characteristics. At its lowest speed settings, the H140-X system is virtually inaudible. At its maximum speed, it remains within comfortable audible noise levels.
Plug-and-Play The H140-X is probably the easiest AIO liquid cooling kit to install bar none, and is even easier to setup than many high-end air coolers.
Superior Thermal Performance Thanks to its copper & brass 140mm radiator, high static pressure Helix 140mm pwm fan, more powerful DC pump than any other AIO on the market, and because it uses the Award winning Apogee™ XL waterblock, the H140-X kit delivers superior thermal performance to any comparably sized system on the market.
Expandable/Customizable

The H140-X differentiates itself from other AIO's by its ability to be fully customized, and to support additional liquid cooled components such as graphics cards, chipset,  and/or additional radiator(s).

  • From a practical standpoint, this is possible thanks to:
    • The presence of a reservoir including a fill-port built into the radiator so that the system can be easily emptied or refilled by the user at will,
    • Enthusiast grade 5/8” OD (3/8" ID) black EPDM tubing fastened to swivel fittings with an elegant clamping system that users can easily remove and safely re-install.
    • The factory tubing and fittings can be replaced by aftermarket G1/4 compatible offerings of your choice (an optional G1/4 adapter is needed for the pump outlet, and is available in the accessories section).
  • From a thermal performance standpoint, this is made possible by:
    • The high thermal capacity of the 140mm copper and brass radiator
    • The powerful high-pressure pump capable of driving sufficient flow to cool multiple devices in the loop.
    • The award winning flagship Apogee XL waterblock
Automatic speed control or fine-tuning right out of the box Both the pump and the fan are PWM compliant devices, allowing the H140-X to be recognized and speed-controlled by the motherboard depending on CPU temperature just like any standard CPU cooler. As a bonus, the system includes a PWM splitter allowing connection of up to 8 PWM devices which can then be controlled as one by the motherboard.
Maintenance-free As shipped from our factory and installed as directed (*), the H140-X CPU cooler requires no maintenance during its 3 year warranty period; a system refill is recommend at the end of 3 years. Under extreme ambient conditions, the system may need more frequent refills. If upgraded by the user, the interval of time between refills will depend on how users implement their customized loop.
Reliability Both fans and pump are rated for a 60,000 MTBF (Meantime Between Failures)
Support With over 10 years of experience designing, manufacturing and setting up liquid cooling systems, Swiftech® customer service can assist you in setting up and troubleshooting your system 6 days a week, 12 hours a day.

We are here to help!



Tab 2


Specifications
Radiator with integrated pump (1 each)
Radiator Material Brass tubes, louvered copper fins, 12~14 FPI
Radiator Body dimensions 150mm x 140mm x 115mm
Radiator Fill-port thread class G 1/4
Radiator Barb fittings Integrated swivel 90° elbows, 3/8" (10mm) OD
Radiator Installation hardware
  • Standard: (4) 6-32 x 1 3/16 (30mm)  Philips screws
Pump speed control
PWM
Pump Speed range
1200 ~ 3000 RPM
Pump nominal voltage
12 VDC
Pump nominal power
6W
Redundant fail safe
Software current limiting fail-safe AND hardware shutoff built-into the pump power wires. The hardware fail safe is only triggered in case of a firmware malfunction.
Pump Bearing type
Ceramic shaft, PTFE bearing
Pump Power connector
SATA
Pump RPM & PWM connector
Mini 4-pin
Pump MTBF
60,000 hours
ROHS Compliant
Pre-installed Fan
Dimensions 140mm x 140mm x 25mm
Speed control PWM
Speed range 700+/- 25% ~ 1800+/- 10%  RPM
Airflow range 35 ~ 90 CFM
Static pressure range 0.25 ~ 2.29 mmH20
Noise level range <8.3 ~ <28.8 dB/A
Nominal Voltage 12 v
Nominal current 0.25 A
Bearing Type Z-axis
Connector Mini 4-pin
MTBF 60,000 hours
ROHS Compliant
Apogee XL Waterblock (1 each)
Base plate material C110 copper
Cooling engine 0.25mm x 0.25mm  micro-pin array
Barb fittings Swivel elbows, 3/8" (10mm) OD
Port thread G1/4 standard
Installation hardware
  • For Intel LGA 1150, 1155, 1156 (pre-installed by default)
    • Back-plate
    • (4) Spring loaded screws & washers
  • For Intel LGA 2011
    • (4) Spring loaded screws & washers
  • For AMD AM2, AM3, FM1,FM2, 939
    • (2) Pre-assembled brackets & spring loaded screws
    • Bracket installation screws
  • Optional back-plate available for Intel legacy socket 775 and 1366
  • Optional Mounting hardware for AMD AM4
Tubing & Coolant
Material EPDM
Color Black
Dimensions 5/8" x 3/8" (16/10mm)
Coolant Pre-filled with non-toxic propylene glycol coolant mix
Clamps (4 each)
Material Black anodized aluminum
PWM splitter (1 each)
PWM Ports 8
RPM signal port Channel 1
Power connector SATA
PWM/RPM connector Mini 4-pin
Installation hardware Peel-off sticker,  mounting screws & nuts
ROHS Compliant
Tim-Mate 2, 1g syringe thermal compound
Quick Installation Guide




Radiator Dimensions






Tab 3

Our Test Results:



Tab 4



Quick Installation Guide (pdf)
PWM Troubleshooting
"All the devices connected to my PWM splitter work at 100% but I cannot vary their speed"
  1. Check that the splitter mini-4 pin PWM signal cable is correctly connected to the CPU_Fan connector of the motherboard
  2. Enable "Manual Fan Control" in the motherboard BIOS
"The device(s) connected to my PWM splitter do not work"
  1. Check that the splitter power cable is connected to the power supply
  2. Check that the non-functioning device female 4-pin connector is correctly inserted in all 4 pins of the splitter connector: in effect, it may be possible to inadvertently offset the female connector by one pin by slightly forcing its insertion, so be careful about this!
"I am getting a "CPU fan error" when I turn on the computer"
  1. Make sure that a device is connected to channel 1 of the PWM splitter. If the motherboard CPU_Fan header does not read an RPM signal, it will return such error by default.
  2. Check that the device connected to Channel 1 of the PWM splitter is correctly inserted in its connector.
  3. Check that the power cable of the PWM splitter is connected to power supply.
"I connected the PWM splitter to an auxiliary 4-pin connector that was indicated as PWM capable by my Motherboard manual, but I can't vary the speed of my devices"
  1. Other than the CPU_Fan connector which is PWM enabled by default, most of the motherboards 4-pin connectors feature two methods of speed adjustment in order to allow control of both types of fans, the 3-pins which are voltage controlled, and the 4-pins which are PWM controlled. As a result, the PWM functionality must be enabled in the BIOS before it can actually work. Please consult your motherboard manual for a "how To".
  2. Since the "CPU_Fan" motherboard connector is PWM enabled by default, we recommend that you connect the splitter to the CPU_Fan connector in order to ascertain its functionality.
"I am connecting the splitter to a PWM fan controller instead of the motherboard, and it doesn't work"
  • Not all PWM fan controllers are compatible. Please read this white paper for further explanations and a list of compatible devices.
