Lok-Seal Quick Disconnect Non Spill Couplings
Product Options
| Part #: |
|
| Color: |
|
|

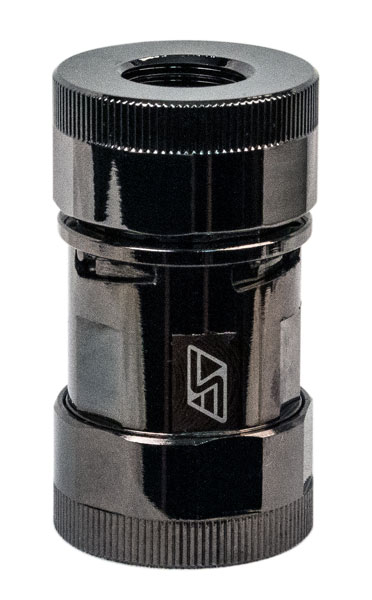

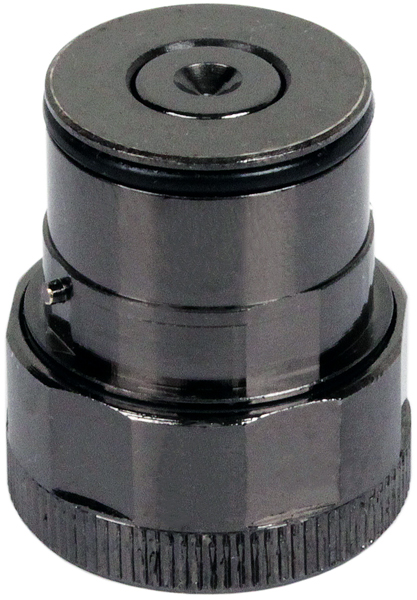

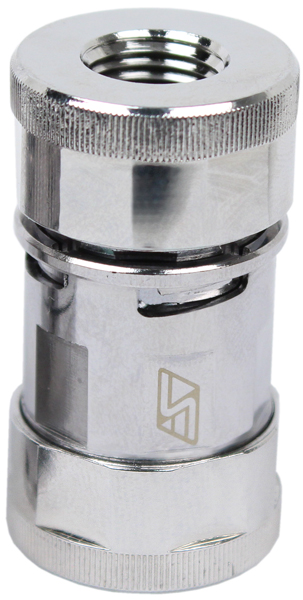

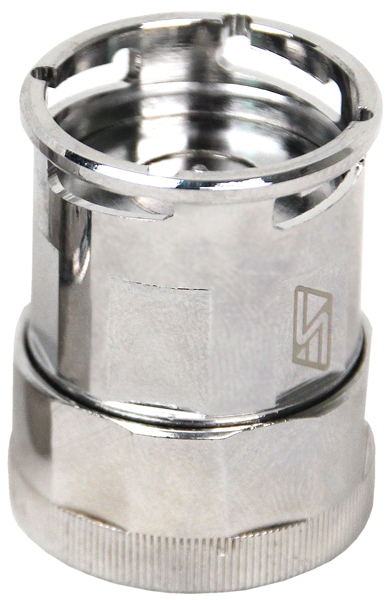

 QC-NS Coupling set, Black Chrome QC-NS Coupling Set QC-NS Female coupling QC-NS Male coupling 3/4x1/2" Compression Fitting End Cap QC-NS 5/8x3/8" Compression Fitting End Cap QC-NS 1/2x3/8" Compression Fitting End Cap QC-NS G1/4 Male End Cap QC-NS G1/4 Female End Cap QC-NS Bulkhead/Panel Mount End Cap QC-NS Female coupling, Black Chrome QC-NS Male coupling, Black Chrome QC-NS 3/4x1/2" Compression Fitting Tip, Black Chrome QC-NS 5/8x1/2" Compression Fitting Tip, Black Chrome QC-NS 1/2x3/8" Compression Fitting End Cap, Black Chrome QC-NS G1/4 Male End Cap, Black Chrome QC-NS G1/4 Female End Cap, Black Chrome QC-NS Bulkhead/Panel Mount End Cap, Black Chrome |
|
|
Product Description
Product Description:
Swiftech's newest entry in the Lok-Seal™ family of high-end fittings is a new type of Quick Disconnect Non-Spill fitting, called the QC-NS series, and based on a sliding-sleeve style hydraulic coupling design. The Flush Face mating valves design allows users to connect or disconnect a line with little or no coolant spillage. This new generation of couplings represents yet another breakthrough innovation in the world of quick-disconnect fittings for two reasons:
- At similar flow-rate characteristics, they are substantially more compact than most types of couplings from competing brands, thus offering precious space savings in space-constrained applications.
- A world's first innovation, Swiftech couplings can be completely disassembled. As a result, they can be configured with multiple types of end caps, thus offering considerable cost savings: there is no need to purchase multiple bodies with specific fittings for different applications: just unscrew the end cap of your QC-NS coupling and replace it with the type of fitting that you need for your new application.
|

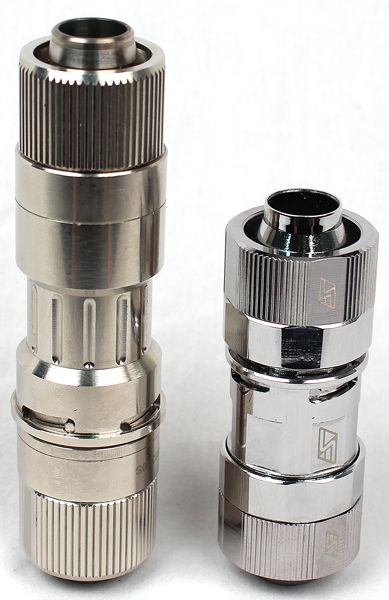

Height compared:
Left, other brand - Right, Swiftech QC-NS

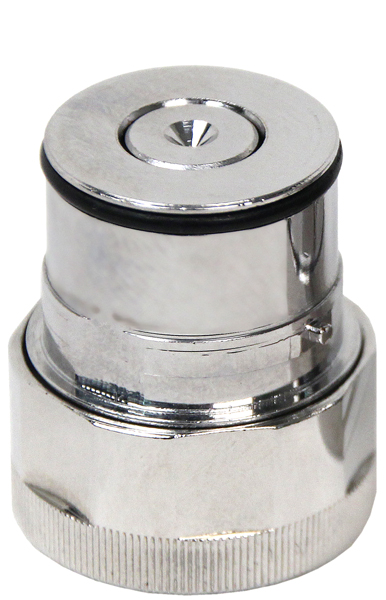

(QC-NS shown with optional 3/4x1/2"
Compression Fitting Caps)
|
This radically different design concept has two direct consequences:
- Swiftech's couplings requires a firm push-and twist motion to connect or disconnect due to the reduced fitting length.
- They necessitate that the end caps be correctly fastened prior to being placed in service so that they will not loosen when being operated.

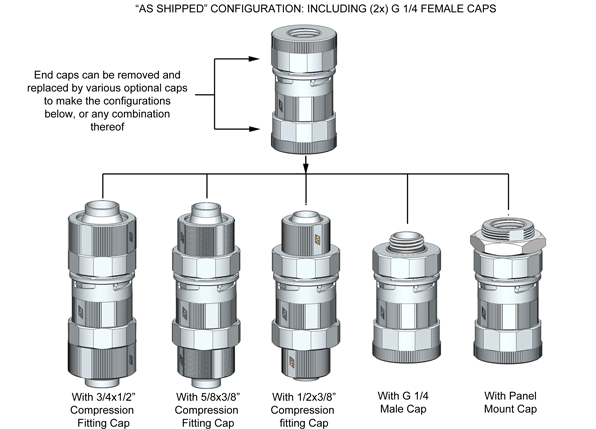

Multiple Configurations

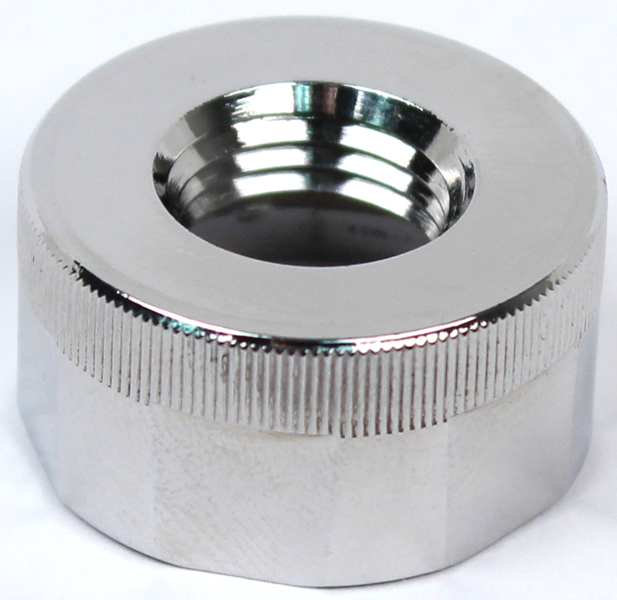

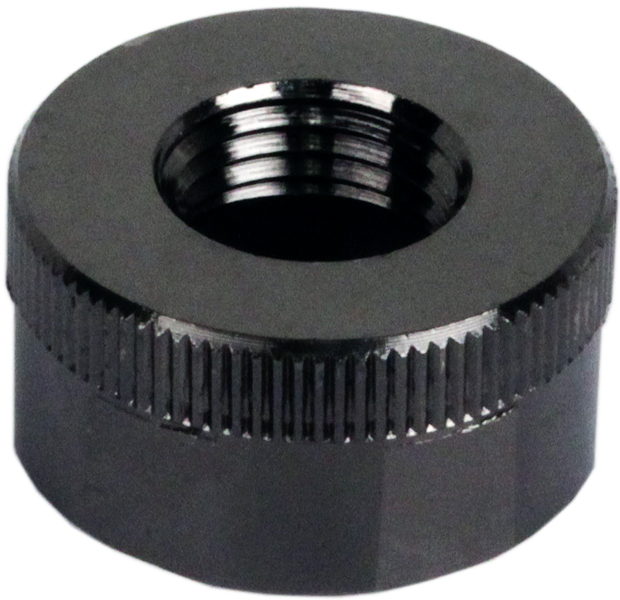

- In stock configuration, the couplings are shipped with 2 pre-assembled G1/4 female threaded end caps, allowing users to screw in any G1/4 fittings (barbs, compression etc..)
- Optional end caps include:

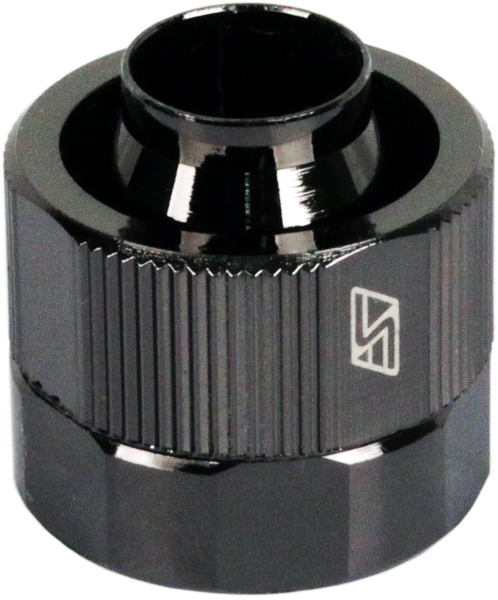

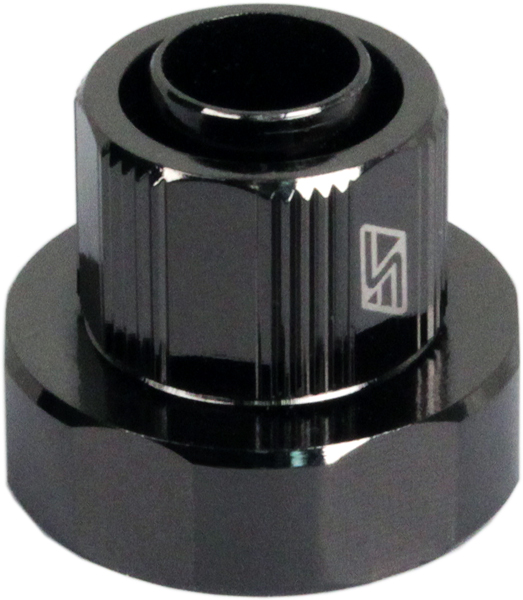

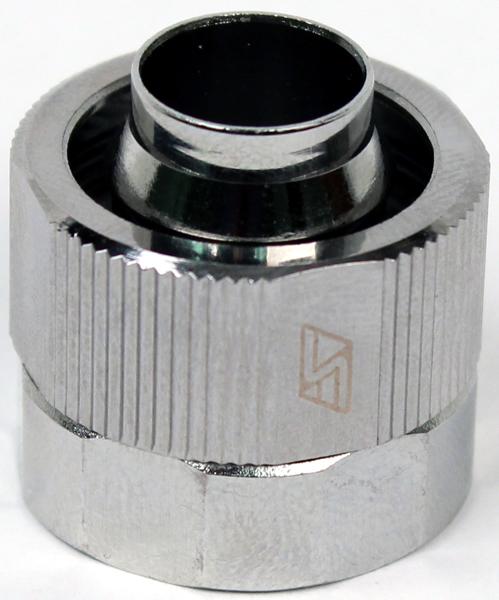

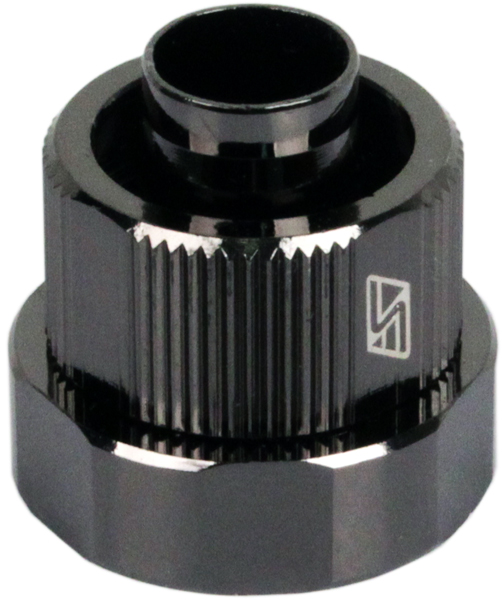

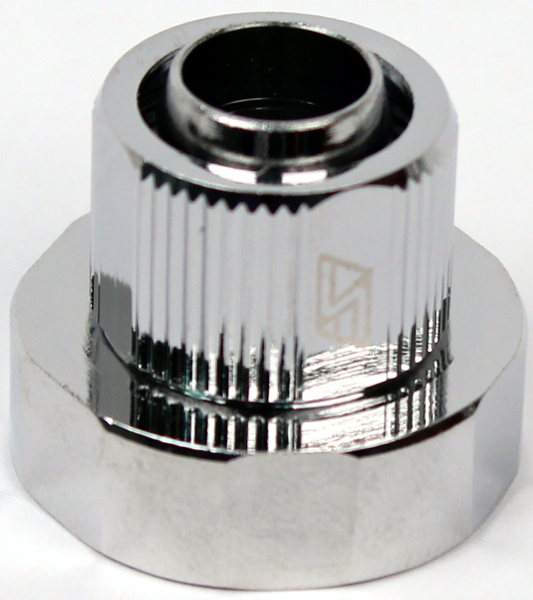

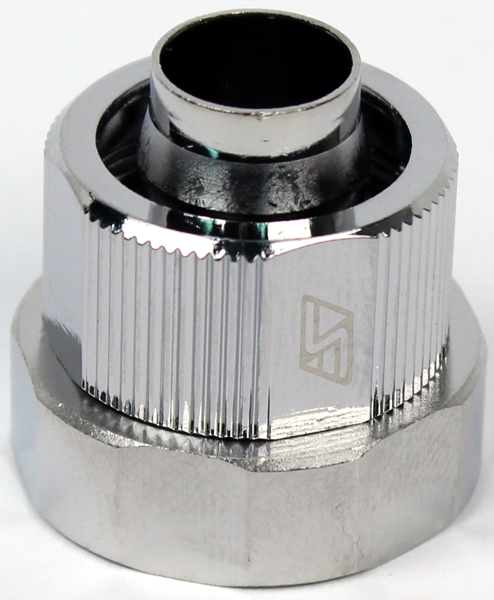

- Compression fittings (reducing the overall length of the assemby by 18mm) for 3/4x1/2", 5/8x3/8", and 1/2x3/8" tubing

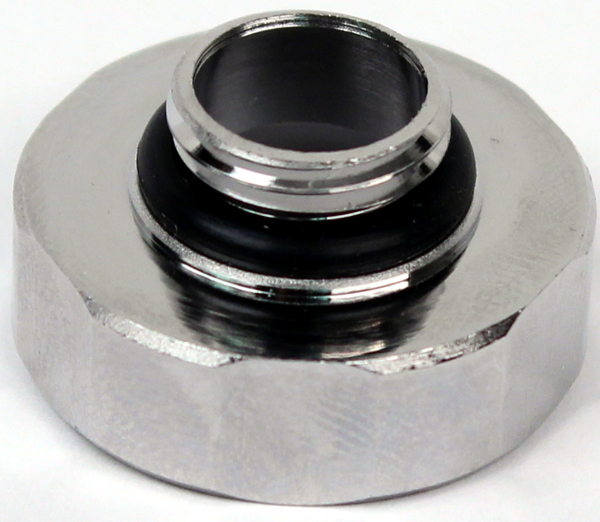

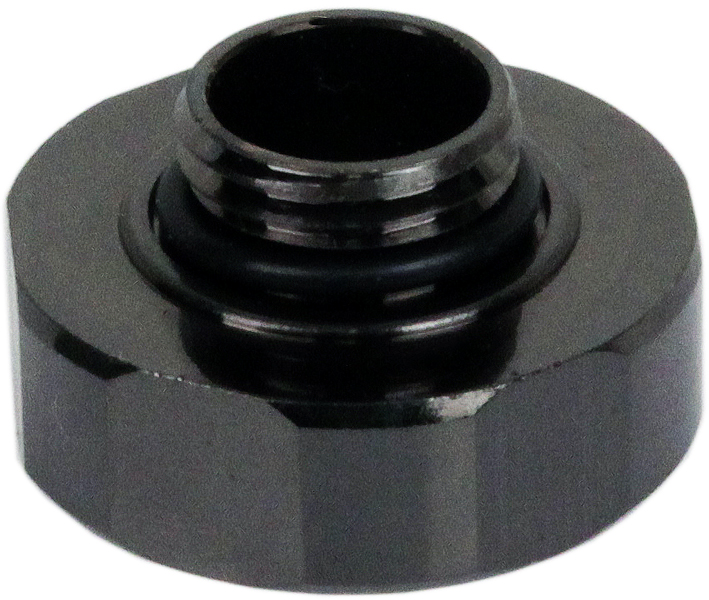

- G1/4 Male Cap: to install the fitting to a water block or to a radiator for exemple.

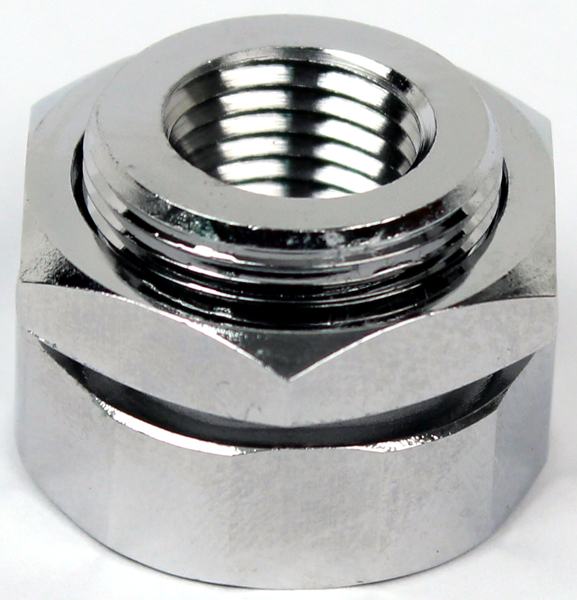

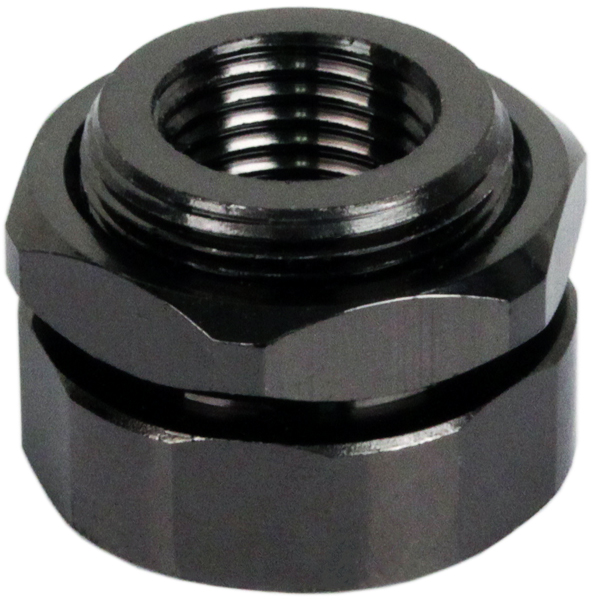

- A Bulkhead/Panel Mount Cap (20mm opening) with G1/4 female thread to install any G1/4 fitting on the back-side.
Specifications
| Construction
|
Flush face, non spill design (0.2ml or less)
|
| Material
|
Chrome plated brass
|
| Max. working pressure
|
7 Bar (100 PSI)
|
| Operating Temperature range
|
-20° to 212° F (-28° to 100° C)
|
| Seals material
|
Buna-N
|
| Spring material
|
Stainless steel (AISI SUS631)
|
| Dimensions
|

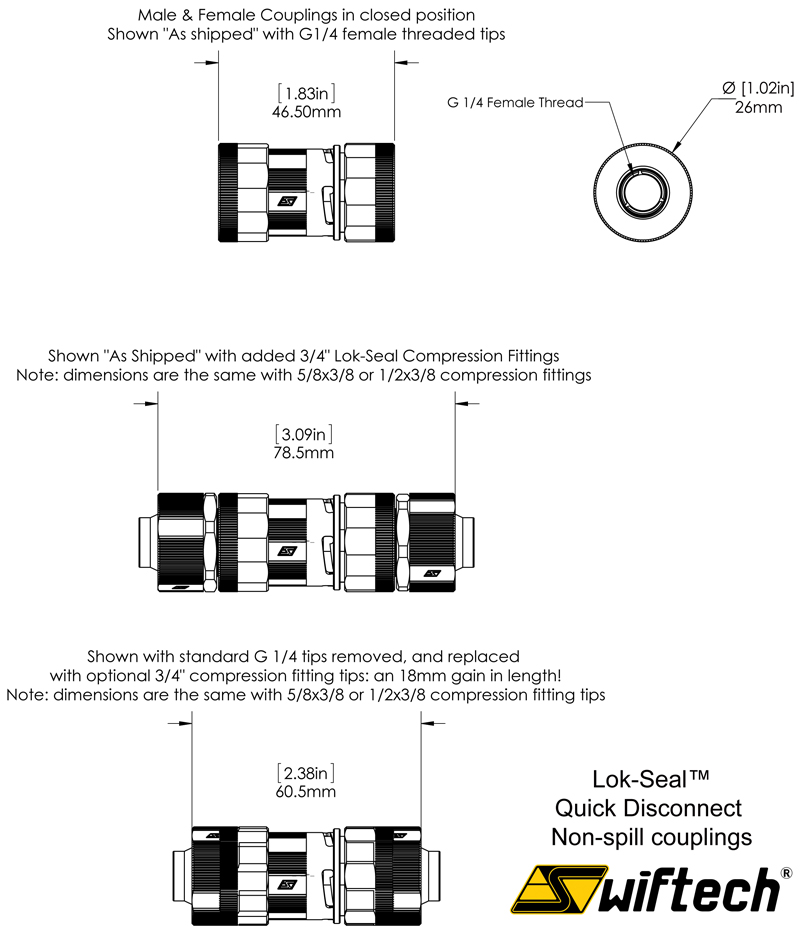

See schematics below
|
 Support
- How to use Video (to be published)
- How to install optional end caps Video (to be published)
Where to buy (as of 3-21-13)
| North America
|
| USA
|
| FrozenCPU (ETA 4/20/13)
|
|
| Performance-pcs (ETA 4/20/13)
|
|
| Sidewinder Computers (ETA 4/20/13)
|
|
|
End User Reviews
| (2 Ratings, 1 Review) |
Average Rating:
|
Years of quality use!
Clair Hardesty
(Georgetown, TX)
5/14/2016 7:32 PM
I have been using these fittings for over three years and they are truly non-spill. I have four fittings in my dual loop system and they have been through over twenty disconnect/connect cycles each with no more than five or six drops of fluid released in all that time. My setup uses 1/2" ID tubing and these couplings present very little flow restriction (each loop has a MCR320-DRIVE-R3 pump/radiator/tank combo which uses the MCP35X integrated pump). My radiators and pumps are external to the computer chassis and these fittings make it a snap to make modifications and/or perform routine system maintenance. The only drawback is the price, but even that is good when compared to lesser performing and bulkier competition.
|
|
|
|
