MCX159-CU
ratingratingratingratingrating
Price: $34.80
Part Number: MCX159-CU
Bulk shipping information: 50 Pcs/Ctn

Product Description
Features

Introducing the Extreme Duty all-copper MCX159-CU chipset heatsink, a whisper-quiet cooling solution designed for motherboards with overclocked front-side bus.

  • The all-copper forged thin-pin design provides nominally better performance than earlier MCX159 designs.
  • The Ultra quiet (18 dBA) VAPO bearing Sunon 40mm fan offers superior MTBF to most stock chipset fans, guaranteeing peace of mind for 5 years or more.
  • This extreme duty heatsink, coupled with Sunon's whisper quiet and high reliability fan make the MCX159-CU an ideal companion to our "V" series heatsinks.
  • This solution is also suggested as an alternative for use with liquid cooling systems in lieu of a chipset waterblock. It provides in effect more than sufficient cooling performance without adding unnecessary restrictions to high-flow cooling systems. This will result in overall lower temperatures at the CPU and VGA level, where it really counts.

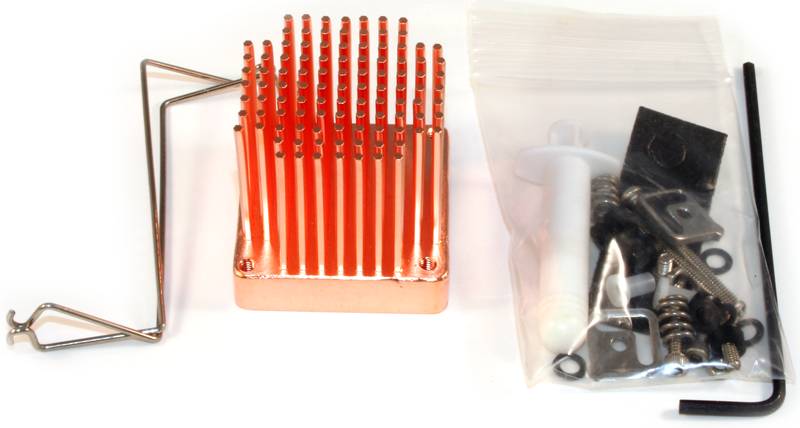

  • The MCX159-CU is shipped with hold-down mechanisms for both Intel® and AMD® platforms. See important notes below for compatibility with your motherboard.

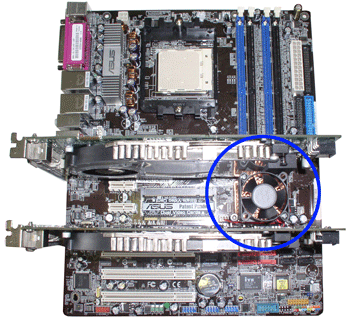

MCX159-CU-ASUS-A8N-SLI

Example of installation with the Asus A8N-SLI and 2 VGA cards

Important notification to users: due to the extreme variety existing among chipset retention mechanisms, as well as location of the chipset relative to the CPU and/or other components, Swiftech® simply cannot keep track of all motherboard configurations, and guarantee compatibility. As a result, Swiftech's customer service will respond to specific queries with respect to motherboard compatibility by referring users to this page. It is the responsibility of the user to determine compatibility based on the information posted below.
As we receive information from various sources, a "known compatibility" list for system integration purposes is published below and will be updated on an ongoing basis. End-users who will send us a picture of their installed system will receive a $5.00 credit towards their next purchase of a Swiftech® product (restrictions apply)

Known Compatibility list for system integration

CPU
socket
Motherboard Make
Model
462
Abit
NF7-S Rev 2
478
Abit
IS7
478
Abit
IC7-G MAXII
478
AOpen
AX4SG MAX
775
Asus
P5AD2 series
775
Gigabyte
GA-8AENXP-D
462 Asus A7N8X
478 Asus P4C800E
478 Asus P4P800E
754 Asus K8V
939 Asus NA8V
939 Asus
A8N-SLI Series with 2 VGA cards installed
462 DFI Lan party NFII
462 Epox 8RDA+
478 Gigabyte GA-8INXP
939
Soltek
N4pro

Retention mechanisms

    How to make sure that your MCX159-CU will fit on your motherboard ?

    The heatsinks ships with two styles of retention mechanisms:

  • To fasten the heatsink via two holes through the motherboard (Mostly AMD® systems, and some Intel® compatible Motherboard), use the provided brackets, posts, and springs.
Brackets allow adjustments as follows: center to center distance between mounting holes ranges from 2.05" (52.1mm) to 2.41" (61.4mm).

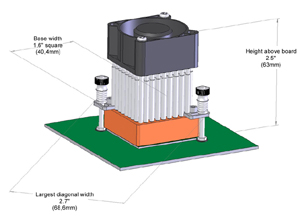

mcx159-a-dimensions



MCX159-CU-AMD®

Example of installation with an AMD® compatible motherboard

  • If your motherboard uses two or four loops (Always Intel® systems), then use the provided wire-clips, as shown below.

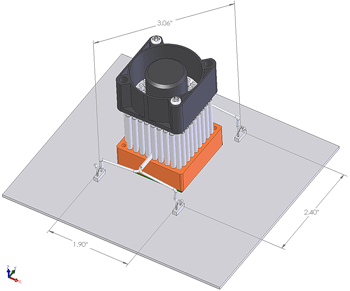

MCX159-CU-loo

    Compatibility: center to center diagonal distance between loops is 3" (77mm).

MCX159-CU-inte
Wire clips fasten the heatsink to the motherboard loops in Intel® based systems

Fan


This particular fan was selected specifically for its low noise characteristics.

Model VDC AMP WATTS RPM CFM Inch-H2O dBA
KDE1204PKV3
(vapo bearing)
2 wires
12
0.05
0.6
5200
6.3
0.11
18

Specifications

MCX159-CU
Base dimensions 1.59 x 1.59 x 0.375" - 40.4 x 40.4 x 12.7mm
Base material   Copper C110
Base flatness +/- .0003"
Heatsink overall dimensions without fan 1.59 x 1.59 x 1.63" - 40.4 x 40.4 x 42 mm
Heatsink overall dimensions with fan 1.59 x 1.59 x 2.34" - 40.4 x 40.4 x 59.4mm
Weight with fan 7.9 oz - 223 g
Fan summary specs 40x20mm fan 12V DC 2 wires (no RPM output) - 6 CFM 18dBA
Performance * 1.25 °C/W

*C/W shown is the heat sink to air values, excluding thermal resistance of the TIM joint, which will vary depending on the thermal interface used and bench test conditions. For reference, Swiftech's TIM joint bench test value is 0.07 °C/W. All tests are performed in an environmental chamber using Industry standard procedures, and calibrated equipment.
