MC800 SMC Cooling Kit


ratingratingratingratingrating
Price: $39.95
Part Number: mc8800
Bulk shipping information: 36 Pcs/Ctn


Designed in the USA
ROHS Compliant
Engineered in the USA

Product Description

The MC8800 SMC kit is a companion product to our MCW60 series GPU water-blocks, and provides a passive cooling solution to critical surface mount components for nVidia 's GeForce™ 8800 series graphics cards: I/O chip, memory, and V/Core mosfets.

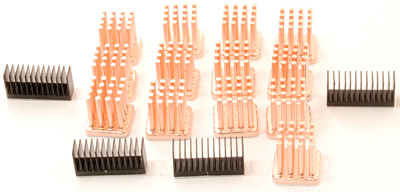

The kit is composed (13) MC14 heatsinks: (1) for the I/O chip, and 12 for the memory, and (4) MC21 heatinks for the Vcore mosfets.

When coupled with the MCW60 water-block, the kit provides a totally silent, high performance, and relatively low cost approach to liquid cooling of the GeForce™ 8800 series cards.

Example of installation of nVidia 's GeForce™ 8800 GTX

MC21

Individual Components Specifications


  • MC14
    Material
    Forged C110 Copper
    Dimensions
    14 mm (L) x 14 mm (W) x 14.5 mm (H)
    Weight
    0.3 oz (8.5g)
    C/W
    9.0 (including TIM joint)
    Recommended Heat Load
    5 Watts per heatsink

  • MC21

Material
black anodized aluminum
Dimensions (Metric)
21mm (L) x 6mm (W) x 10mm (H)
Dimensions (Inch)
.825" (L) x .236 (W) x .393" (H)
Weight
0.1 oz (2.8 g)
Installation
high thermal conductivity peel-off tape
