GTX580-HS Heatsink


ratingratingratingratingrating
Price: From $35.25 to $82.98

Product Options

Heatsink or MCW82 Combo:


Designed in the USA
ROHS Compliant
Introduction

The GTX580-HS heatsink is designed to cool surface mount components (memory, and voltage mosfets) on nVidia 's GeForce™ GTX580 series graphics cards (P1261 reference design).

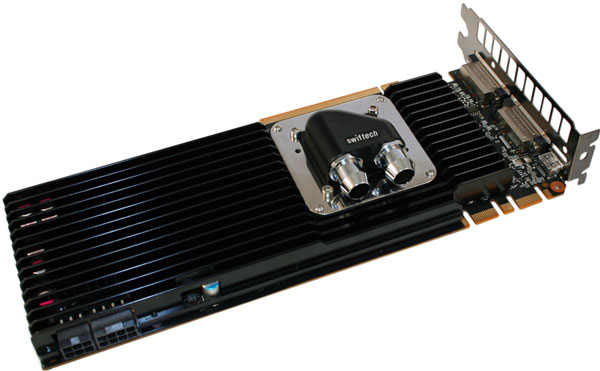

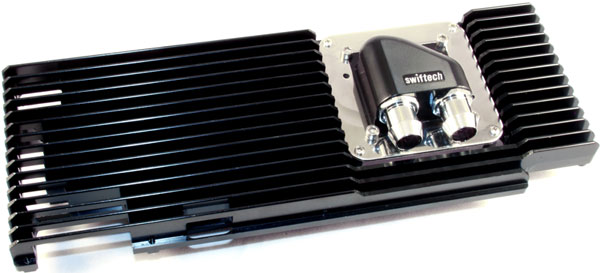

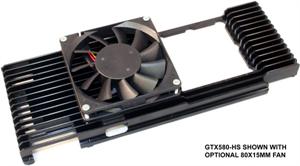

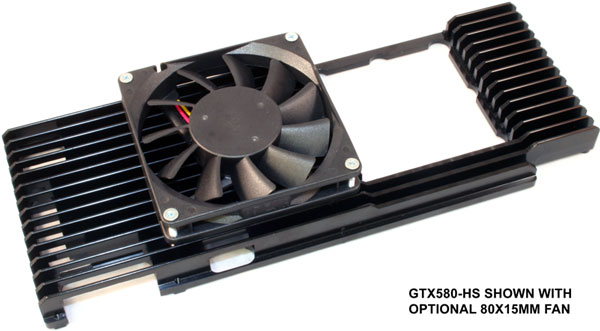

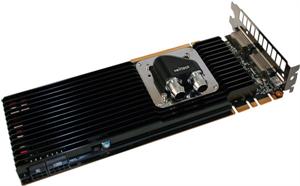

The product is designed to be installed in conjunction with our MCW60, 80 and 82 VGA waterblocks and it allows the highest possible stable overclocks of these high-end graphic cards while keeping them cool and quiet. For high-overclock applications where maximum voltage is added to the card, an optional slow speed (quiet) 80mm fan can be added to complement cooling of the power MOSFETS, resulting in up to 30% drop in these components temperature compared to stock cooling (see actual temperature data below).

The performance advantage of  hybrid cooling which consists in cooling the GPU with a universal waterblock in combination with a heatsink compared to using a full-cover water-block solutions is well known among enthusiast users: improved thermal dissipation at the GPU level thanks to Swiftech's Diamond Pin Matrix and a better TIM joint, and less heat dumped into the liquid cooling loop coming from memory, and power MOSFETS since they remain air cooled. In addition, this combination provides a complete solution that is more economical than full-cover waterblocks because the GPU waterblock can be re-used over time with different VGA cards.

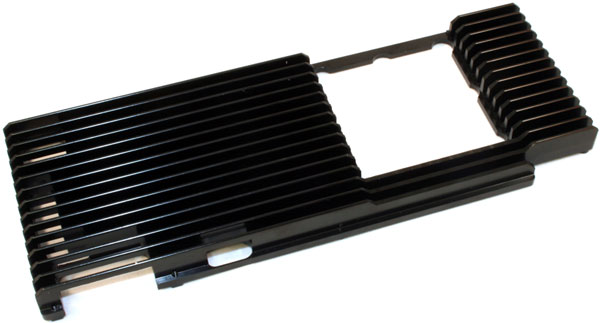

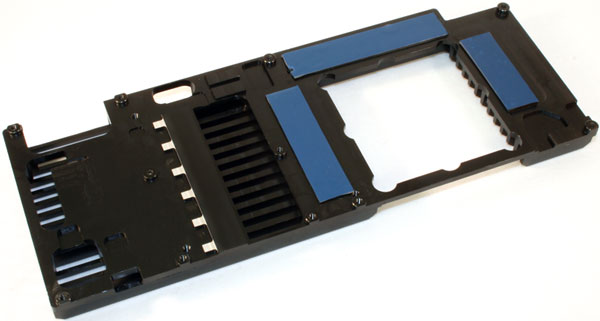

The heatsink is a custom Aluminum extrusions, and it is precision CNC machined to allow optimum TIM joints with the hottest components such as the voltage regulator modules, where high performance thermal grease is to be used. Less heat intensive components such as memory receive pre-applied thermal pads, as shown below.

Pictures Gallery



Temperature Data
  • Environment & methodology:
    • Open bench
    • Temperature probe affixed to back of the PCB directly behind the Power Mosfets
    • Load application: Furmark full screeen, 1920x1080, extreme burn mode, duration 30mn
    • Ambient temp: 24 °C +/- 1 °C  (74 °F)
    • Stock speed & voltage
  • Passive mode (no additional cooling fans): 70 °C +/- 1 °C  (158 °F)
  • With optional Sunon KD1208PHB1 80x15mm fan, rated at 3300rpm, 35cfm & 40dbA fan (noticeably audible):  40 °C +/- 1 °C  (104 °F)
  • With optional Hiper HFF-1G08G-UV 80x5mm fan, rated at 2000rpm, 21cfm & 19dbA fan (ultra quiet): 50 °C +/- 1 °C (122 °F)
Specifications
  • Material: black anodized aluminum extrusion
  • Dimensions (Inch): 9 3/8 " (L) x 3 5/8" (W) x .7" (H)
  • Dimensions (Metric): 238mm (L) x 92mm (W) x 18mm (H)
  • Weight: 10.6 oz (302 g)
  • Installation: high thermal conductivity pad for memory and direct-touch for power MOSFETS (Arctic Ceramique included).
  • Pre-existing mount holes for optional 80mm fan
Support


How to check for compatibility?

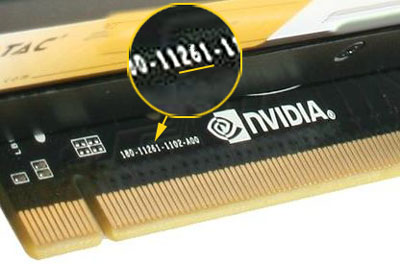

The nVidia reference design number can be usually be found in a code located below or next to the nVidia® logo, as can be seen below; in the case of this particular heatsink, the code to look for would be "1261".
Compatibility Database (as of 5-23-11)

Brand Model - GTX580 Series
PCB #
Compatible
ASUS ENGTX580 DCII/2DIS/1536MD5 GeForce™ GTX 580 (Fermi) 1536MB
P1261
Under investigation
ECS NGTX580-1536PI-F GeForce™ GTX 580 (Fermi) 1536MB
P1261
Yes
EVGA 015-P3-1580-AR GeForce™ GTX 580 (Fermi) 1536MB
P1261
Yes
EVGA 03G-P3-1584-AR GeForce™ GTX 580 (Fermi) 3072MB
P1261
Yes
EVGA DS Superclocked 015-P3-1587-AR GeForce™ GTX 580 (Fermi) 1536MB
P1261
Yes
EVGA SuperClocked 015-P3-1582-AR GeForce™ GTX 580 (Fermi) 1536MB
P1261
Yes
Galaxy 58NLH5HS3PXZ GeForce™ GTX 580 (Fermi) 1536MB
Unknown
No
GIGABYTE Super Overclock Series GV-N580SO-15I GeForce™ GTX 580 (Fermi) 1536MB
Unknown
No
MSI N580GTX Lightning GeForce™ GTX 580 (Fermi) 1536MB
Unknown
No
MSI N580GTX Twin Frozr II/OC GeForce™ GTX 580 (Fermi) 1536MB
P1261
Yes
Palit NE5X5800F10CB GeForce™ GTX 580 (Fermi) 1536MB
Unknown
No
PNY SuperClocked VCGGTX580XPB-OC GeForce™ GTX 580 (Fermi) 1536MB
P1261
Yes
PNY VCGGTX580XPB GeForce™ GTX 580 (Fermi) 1536MB
P1261
Yes
SPARKLE Calibre Series X580 GeForce™ GTX 580 (Fermi) 1536MB
P1261
Yes
ZOTAC AMP! ZT-50102-10P GeForce™ GTX 580 (Fermi) 1536MB
P1261
Yes
ZOTAC AMP2! ZT-50104-10P GeForce™ GTX 580 (Fermi) 3072MB
P1261
Yes
ZOTAC ZT-50101-10P GeForce™ GTX 580 (Fermi) 1536MB
P1261
Yes
ZOTAC ZT-50103-10P GeForce™ GTX 580 (Fermi) 3G
P1261
Yes
Brand Model - GTX570 Series
PCB Compatible
ECS NGTX570-1280PI-F GeForce GTX 570
P1261
Yes
EVGA 012-P3-1571-KR GeForce GTX 570
Unknown
No
EVGA 012-P3-1570-AR GeForce GTX 570
P1261
Yes
EVGA SuperClocked 012-P3-1572-TR GeForce GTX 570 P1261
Yes
EVGA SuperClocked 012-P3-1572-AR GeForce GTX 570 P1261 Yes
EVGA SuperClocked 012-P3-1573-KR GeForce GTX 570 P1263 No
EVGA 012-P3-1578-AR GeForce GTX 570 "Classified" P1261
Yes
EVGA SuperClocked 012-P3-1573-AR GeForce GTX 570 P1263 No
EVGA 012-P3-1577-KR GeForce GTX 570 "Doubleshot" P1263 No
EVGA 012-P3-1571-AR GeForce GTX 570 P1263
No
Galaxy 57NKH3HS4GXK GeForce GTX570 Unknown No
Galaxy 57NKH3HS00GZ GeForce GTX 570 P1261 Yes
GIGABYTE Super Overclock Series GV-N570SO-13I GeForce GTX 570 Unknown No
GIGABYTE GV-N570OC-13I Rev2.0 GeForce GTX 570 Unknown No
MSI N570GTX Twin Frozr II OC GeForce GTX 570 P1261 Yes
MSI N570GTX-M2D12D5 GeForce GTX 570
P1261
Yes
MSI N570GTX Twin Frozr III PE/OC GeForce GTX 570 Unknown
No
SPARKLE SXX5701280D5NM GeForce GTX 570 P1261 Yes
ZOTAC AMP! ZT-50204-10M GeForce GTX 570 Unknown No
