MCW-NB MAX


ratingratingratingratingrating
Price: Discontinued
Part Number: MCW-NBMAX


Designed in the USA
ROHS Compliant
Features

The MCW-NBMAX is a North Bridge waterblock designed in collaboration with the AsusCorporation as an alternative to their "Fusion" waterblock. It primarily features:

  •   Removable 1/4" BSPP fittings allowing the use of 1/2", 3/8" or 1/4" tubing (shipped with 1/2" and 3/8" chrome plated brass barb fittings)
  • Unrestricted water chamber to minimize pressure drop in high-flow applications and promote better overall system thermal performance
  • A sober design matching that of current Swiftech® high-end waterblocks such as the Apogee™ GTZ.

Motherboard Compatibility & Retention Mechanism

The MCW-NBMAX is compatible with the Asus Maximus II formula, Rampage Extreme,and Rampage II Extreme; it is also expected to be compatible with upcoming high-end Asus motherboards that will feature the Fusion water-block in removable version.

Pictures

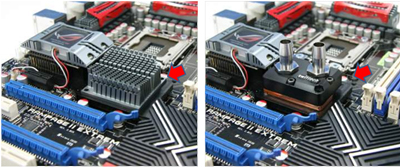

MCW-NBMAX-motherboard

                             With the rampage II Extreme

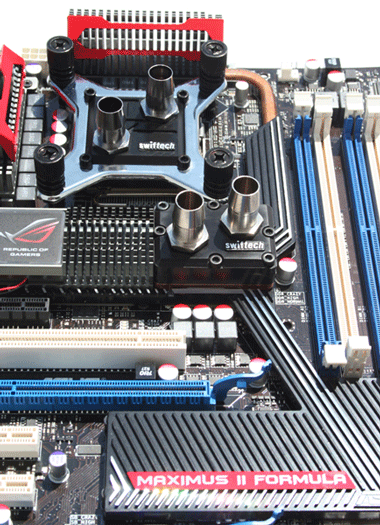

MCW-NBMAX-Formula
                     with the Asus Maximus II Formula

Overall quality & attention to details

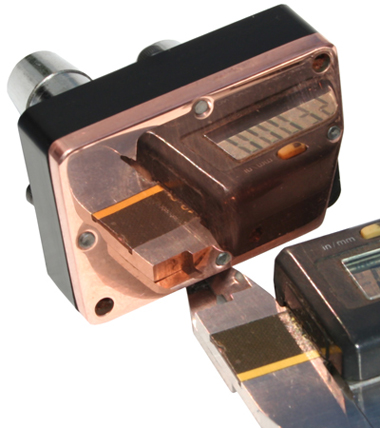

Exceptional quality and attention to details: the copper base is lapped and mirror polished to promote optimum thermal conductivity, and passivated to slow down surface oxidation.

MCW-NBMax-mirror

Specifications

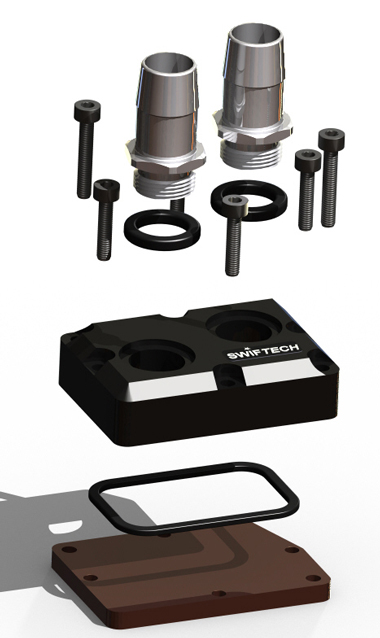

  • Internal configuration

MCW-NBMAX-view

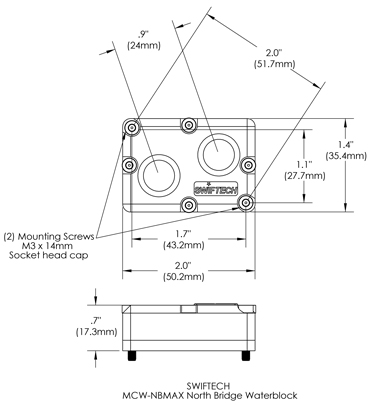

  •   Dimensions
MCW-NBMAX-dimensions

Base Plate
  • C110 Copper
  • passivated, lapped and mirror polished
Housing
  • CNC machined Delrin
  • 1/4" BSPP threads
  • O-ring seals
Dimensions   Length 2.0 " (50.2mm) x Width 1.40" (35.4mm) x Height .7" (17.3mm)
Weight
103 g
