MCP35X2 Heat Sink


ratingratingratingratingrating
Price: $27.95
Part Number: MCP35X2-HS


Designed in the USA
ROHS Compliant
Product Description


The MCP35X2-HS is an optional heatsink compatible with Swiftech's MCP35X2 dual pumps. The heatsink is intended to provide additional cooling to pumps running under high stress and/or high ambient temperature conditions. The substantial reduction in operating temperature may result in increased components life.

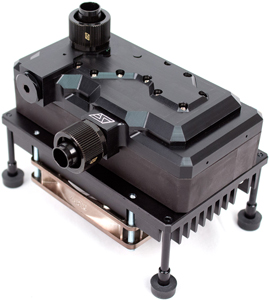

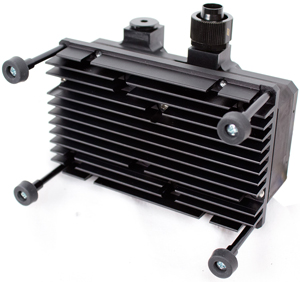

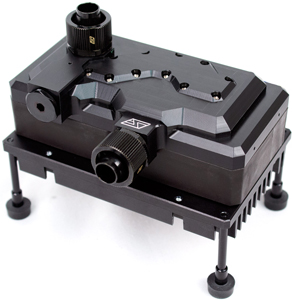

The product also forms a convenient stand for the pump assembly thanks to 4 feet terminated by rubber bushings for noise and vibration insulation which are included with the package.

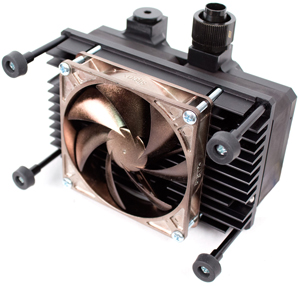

The MCP35X2-HS heatsink is designed to operate either in passive mode (without a fan), or can also be fitted with an optional 80x15mm fan.  It is thermally mated to the base of the pumps using high performance thermal pads and secured by screws.

Configuration Examples

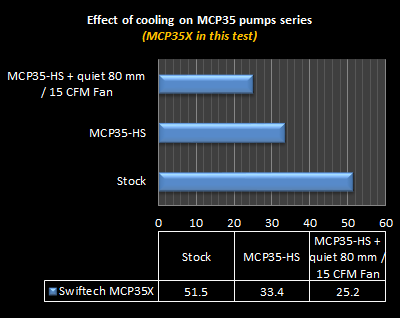

Performance Data


The following data is based on the single MCP35X heatsink but can be used as reference for the MCP35X2 heatsink.

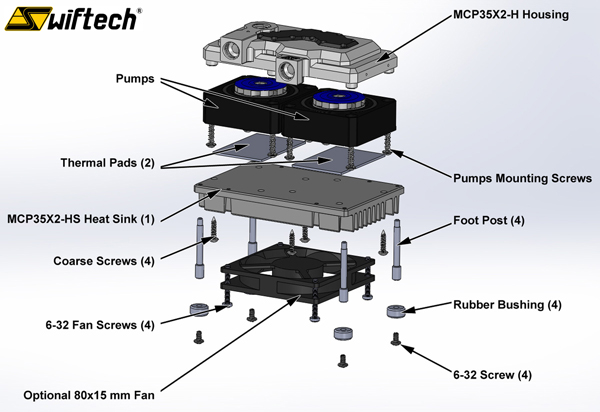

Included accessories:
  • Heatsink & mounting screws
  • (2) Thermal Pads
  • (4) Custom feet
  • (4) Rubber bushing & screws
Specs and Support:

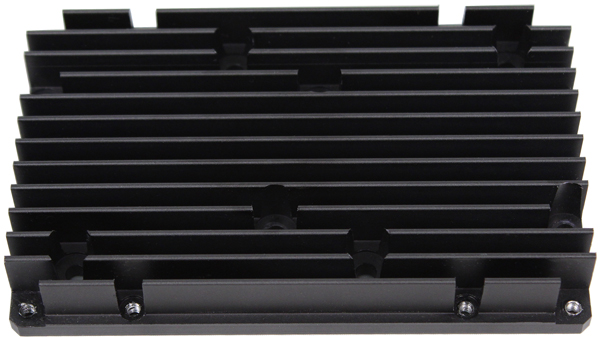

Material: Black Anodized Aluminum Extrusion
Dimensions: 126x80x18mm
Supported fans: 80x15mm
Weight: 8.8 oz (250g)
