GTX560-TI Heatsink
ratingratingratingratingrating
Price: Starting at $33.25
Out of stock

Product Options

Heatsink or MCW82 Combo:

Product Description
Introduction

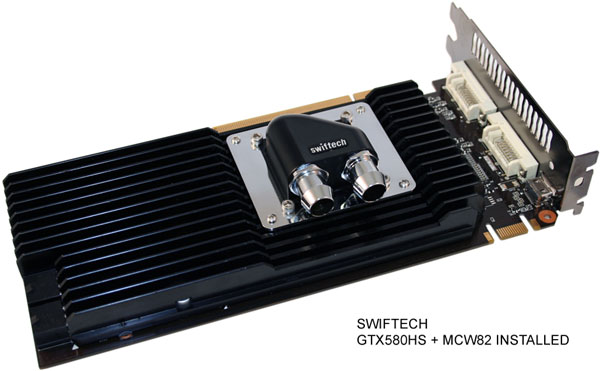

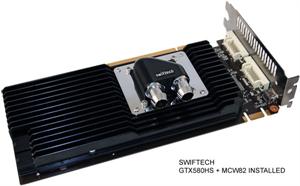

The GTX560-TI heatsink is designed to cool surface mount components (memory, and voltage mosfets) on nVidia 's GeForce™ GTX560-TI series graphics cards (P1040 reference design).

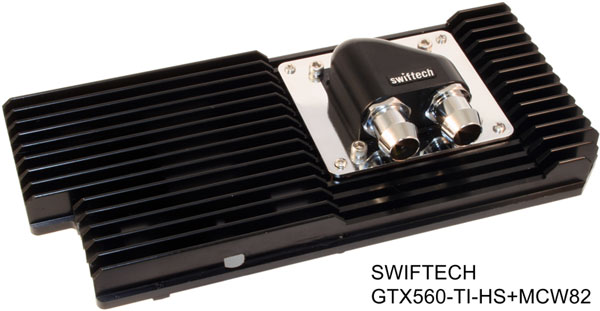

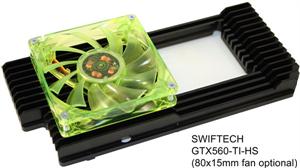

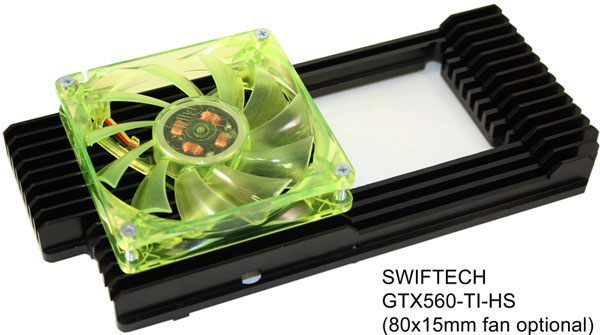

The product is designed to be installed in conjunction with our MCW60, 80 and 82 VGA waterblocks and it allows the highest possible stable overclocks of these high-end graphic cards while keeping them cool and quiet. For high-overclock applications where maximum voltage is added to the card, an optional slow speed (quiet) 80mm fan can be added to complement cooling of the power MOSFETS, resulting in up to 30% drop in these components temperature compared to stock cooling.

The performance advantage of  hybrid cooling which consists in cooling the GPU with a universal waterblock in combination with a heatsink compared to using a full-cover water-block solutions is well known among enthusiast users: improved thermal dissipation at the GPU level thanks to Swiftech's Diamond Pin Matrix and a better TIM joint, and less heat dumped into the liquid cooling loop coming from memory, and power MOSFETS since they remain air cooled. In addition, this combination provides a complete solution that is more economical than full-cover waterblocks because the GPU waterblock can be re-used over time with different VGA cards.

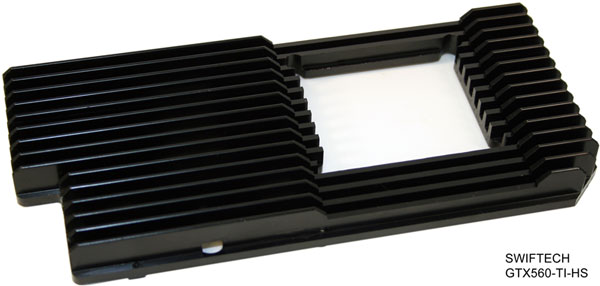

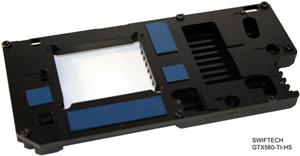

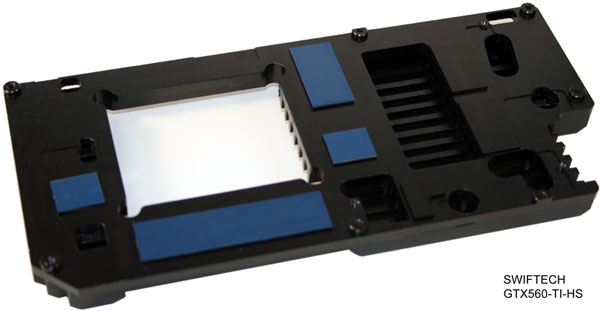

The heatsink is a custom Aluminum extrusions, and it is precision CNC machined to allow optimum TIM joints with the hottest components such as the voltage regulator modules, where high performance thermal grease is to be used. Less heat intensive components such as memory receive pre-applied thermal pads, as shown below.

Pictures Gallery







Specifications
  • Material: black anodized aluminum extrusion
  • Dimensions (Inch): 7 3/4 " (L) x 3 5/8" (W) x .7" (H)
  • Dimensions (Metric): 198mm (L) x 92mm (W) x 18mm (H)
  • Weight: 8.7 oz (248 g)
  • Installation: high thermal conductivity pad for memory and direct-touch for power MOSFETS (Arctic Ceramique included)
  • Pre-existing mount holes for optional 80mm fan (x4)
Support

How to check for compatibility?

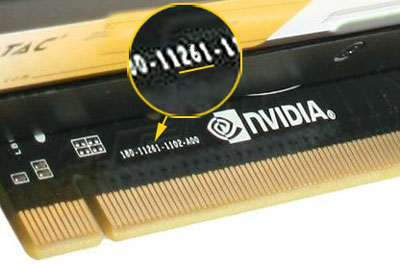

The nVidia reference design number can often be found in a code located below or next to the nVidia® logo, as can be seen below; in the case of this particular heatsink, the code to look for would be "1040".
Compatibility Database (as of 6-7-11)

Brand Model
PCB #
Compatible
ASUS ENGTX560 TI DCII TOP/2DI/1GD5 GeForce™ GTX 560 Ti (Fermi) 1GB C1040P
No
ASUS ENGTX560 TI DCII/2DI/1GD5 GeForce™ GTX 560 Ti (Fermi) 1GB C1040P
No
ECS NGTX560TI-1GPI-F GeForce™ GTX 560 Ti (Fermi) 1GB P1040
Yes
EVGA 01G-P3-1561-AR GeForce™ GTX 560 Ti FPB (Fermi) 1GB 180-11040
Yes
EVGA 01G-P3-1563-A1 GeForce™ GTX 560 Ti (Fermi) Maximum Graphics Edition Crysis 2 1GB 180-11040
Yes
EVGA DS SuperClocked 01G-P3-1567-AR GeForce™ GTX 560 Ti (Fermi) 1GB 180-11040
Yes
EVGA SuperClocked 01G-P3-1563-AR GeForce™ GTX 560 Ti (Fermi) 1GB 180-11040
Yes
EVGA SuperClocked 01G-P3-1567-KR GeForce™ GTX 560 Ti (Fermi) 1GB
180-11040
Yes
Galaxy 56NGH6HS4IXZ GeForce™ GTX 560 Ti (Fermi) 1GB Unknown
No
GIGABYTE GV-N560OC-1GI GeForce™ GTX 560 Ti (Fermi) 1GB Unknown
No
GIGABYTE Super Overclock Series GV-N560SO-1GI-950 GeForce™ GTX 560 Ti (Fermi) 1GB Unknown
No
MSI N560GTX-Ti Hawk GeForce™ GTX 560 Ti (Fermi) 1GB Unknown
No
MSI N560GTX-Ti Twin Frozr II GeForce™ GTX 560 Ti (Fermi) 1GB N1996
No
MSI N560GTX-Ti Twin Frozr II Golden Edition GeForce™ GTX 560 Ti (Fermi) 1GB N1996
No
MSI N560GTX-TI Twin Frozr II/OC GeForce™ GTX 560 Ti (Fermi) 1GB N1996
No
Palit NE5X56T01102-1140F GeForce™ GTX 560 Ti (Fermi) 1GB Unknown
No
Palit NE5X56T01142-1041F GeForce™ GTX 560 Ti (Fermi) 2GB Unknown
No
Palit NE5X56TS1102-1140F GeForce™ GTX 560 Ti (Fermi) SONIC 1GB Unknown
No
PNY VCGGTX560TXPB GeForce™ GTX 560 Ti (Fermi) 1GB
P1040
Yes
PNY VCGGTX560TXPB-OC2-S GeForce™ GTX 560 Ti (Fermi) 1GB P1040
Yes
PNY VCGGTX560TXPB-OC-BDL GeForce™ GTX 560 Ti (Fermi) 1GB P1040
Yes
SPARKLE SX560T1024D5MH GeForce™ GTX 560 Ti (Fermi) 1GB 180-11040
Yes
ZOTAC AMP! ZT-50302-10M GeForce™ GTX 560 Ti (Fermi) 1GB 236-DN209-040 Yes
ZOTAC ZT-50301-10M GeForce™ GTX 560 Ti (Fermi) 1GB 23A-DN166-04E No
