45° Swivel Elbow Lok-Seal™ adapter
Price: $8.49

Product Options

Color:

Product Description
Product Description:

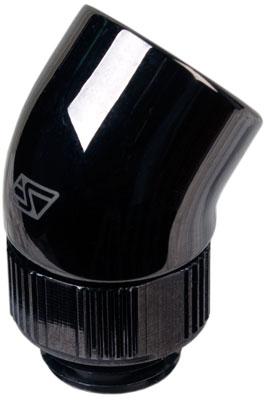

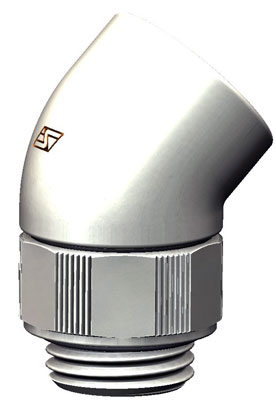

45° Swivel Elbow Lok-Seal™ adapter:  the base freely rotates 360° and the female thread allows installation of a compression fitting to make a 45° Swivel elbow fitting.

Contents & Features Specifications
  • Blister pack of 1 fitting & collar
  • Material: brass
  • G¼" Male and Female threads
  • Finish: high polish Natural or Black chrome plating
  • 360° swivel with hi-flow 10.2mm bore
  • Hex nut:
    • Inch: .67"
    • Metric: 17mm

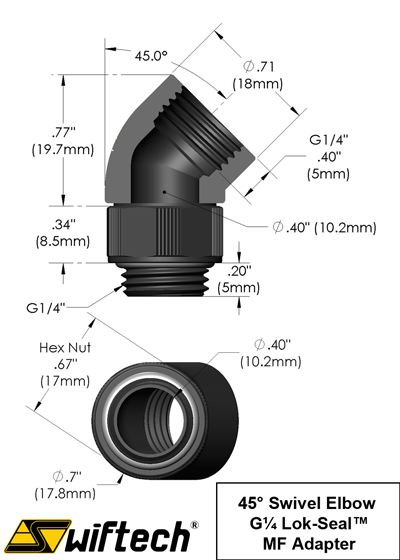

Dimensions




Recommended use

  • Initial Tip:  If possible, attach the fittings to the cooling devices first! While not mandatory,  it is always preferable to fasten a fittings to a cooling device prior to installing the device inside the case. This will eliminate interference issues that may be encountered when working with tools inside of space constrained enclosures.
  • Fasten the fitting by hand until it mates with the surface of the cooling device. The amount of force necessary to screw the fittings down in “finger tight” mating position may vary from one device to another depending on various factors.  Users are advised to always visually check on the actual position of the fitting relative to the device surface rather than solely relying on feel. There should be little -not to exceed the thickness of a sheet of paper, or no visible gap between the fitting lower lip and the device surface. See the illustration below.



  • For complete long-term safety and leak-free operations, Swiftech® recommends that the fittings be locked in place using the recommended tools and that the torque levels specified below be applied:

Recommended Torque

Soft Material

Minimum

Maximum (*)

Acetal (POM) and acrylics

1/4 of a turn after initial contact between mating surfaces

1/2 of a turn after initial contact between mating surfaces

Hard Materials

Recommended

Copper, brass, aluminum

1/8 of a turn after initial contact between mating surfaces

(*) For full 5mm thread depth – please inspect the device threads prior to applying the maximum
recommended torque – when partial threads exist due to application necessity, only apply the
minimum torque.


Recommended Tools



A small adjustable wrench with jaw opening up to 1” (25.4mm)
may be used as a universal tool instead of the specific tools listed below


Specific tool sizes

Adapter

Fitting Base Hex:
Flat wrench

90° Swivel Elbow

Inch: 5/8"  - Metric: 17mm

90° Dual Swivel Elbow

Inch: 5/8" - Metric: 17mm

45° Swivel Elbow

Inch: 5/8" - Metric: 17mm
