MCR-H220 Radiator
Price: $71.34
Sale Price: $57.07
You Save: $14.27
Out of stock
Part Number: MCR-H220
on sale

Product Description
The MCR-H220 radiators are reconditioned units from the Award Winning H220 CPU cooling kits. Some minor cosmetic paint defects may be found; each products has been thoroughly inspected and is sold "As Is" at a specially discounted price of $39.95.   LIMITED INVENTORY - GET YOURS WHILE SUPPLIES LAST !

There is no return on this product. A (1) One Year fan warranty applies.

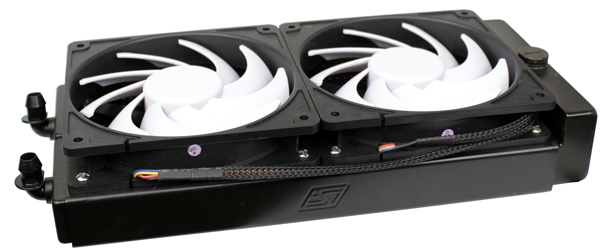

  • Dual 120 mm radiator, with built-in reservoir, and 3/8" SWIVEL built-in (non removable) barb fittings.
  • (2) pre-installed Helix PWM 120 mm fans
  • Clamps for 5/8" OD tubing
  • Installation hardware
  • (1) Year Fan warranty

Qty Specifications
1 Radiator
Material Brass tubes, louvered copper fins
Body dimensions 269mm x 128mm x 29mm
Fill-port thread class G 1/4
Reservoir capacity 90 cc
Barb fittings Integrated swivel 90° elbows, 3/8" (10mm) OD
Installation hardware
  • Standard: (8) coarse thread fans screws
  • Alternate: (8) 6-32 x 1 3/16 (30mm)  Philips screws
ROHS Compliant
2 Pre-installed Helix Fan
Dimensions 120mm x 120mm x 25mm
Speed control PWM
Speed range 800+/- 25% ~ 1800+/- 10%  RPM
Airflow range 24 ~ 55 CFM
Static pressure range 0.53 ~ 2.29 mmH20
Noise level range <16 ~ <33 dB/A
Nominal Voltage 12 v
Nominal current 0.2 A
Bearing Type Z-axis
Connector Mini 4-pin
MTBF 60,000 hours
ROHS Compliant
2 Clamps
Material Black anodized aluminum, for 5/8" OD tubing only (non adjustable to smaller or larger tubing diameters)

Radiator Dimensions

H220 dimensions
