KOMODO-NV-GTX9
Price: $159.95
Sale Price: $79.98
You Save: $79.97
Out of stock
Part Number: KOMODO-NV-GTX9
Bulk shipping information: 12 Pcs/Ctn
on sale

Product Description
Product Description

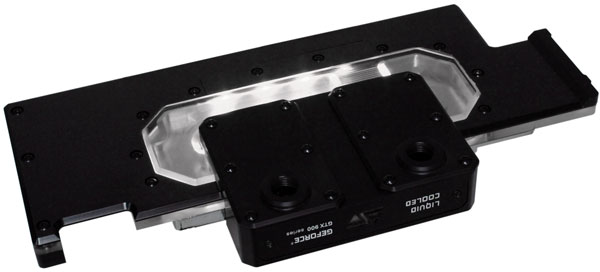

The Komodo™NV- GTX9 is part of the LE (Luxury Edition) family of full cover waterblocks, and is compatible with Nvidia® GeForce™ GTX 980 reference boards (PCB PG401). The coolant flow path includes all critical components such as GPU, memory, power mosfets as well as all other power components specified in NVidia's "Thermal Solutions Design Guide".
Proper cooling of all the critical components contributes to overclocking stability, reliable operations, and longevity of the graphics card. The block covers the entire PCB, leaving no components exposed to possible damages during handling.

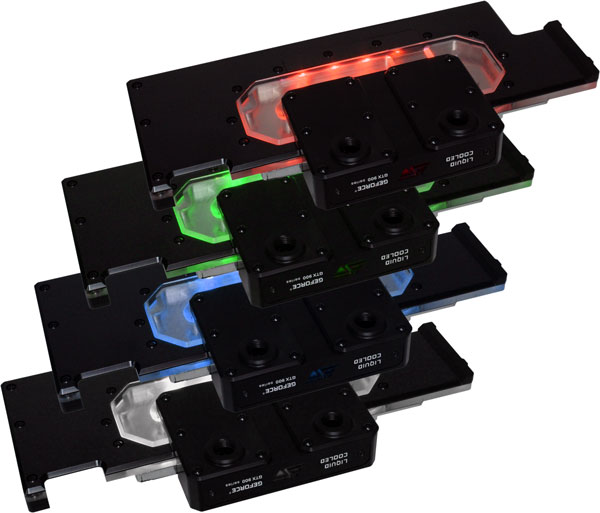

The product includes interchangeable color strips to light up the coolant window and front logo plate in 4 colors: Green (as shipped), red, blue or clear.  The Komodo NV-GTX9 can be compared to the award winning Komodo NV-LE reviewed below.




Tab 1



Why is the Komodo-NV a superior cooling solution ?
The only true full cover water-block The blocks cover the full length of the card and utilizes all the original circuit board mounting points; this results in superior thermal interface with all the components, but more importantly it prevents bending and/or damage to the card compared to competing solutions that leave critical components exposed for cost saving purposes; the Komodo-NV series continue this exclusive Swiftech® initiative as a true professional solution (an industry first).
Moderate flow restriction by design The water channels have been optimized for optimum flow rate in order to take into account multiple waterblocks in the same loop; additionally, the high efficiency of the thermal design authorizes better thermal performance at low flow rates.
Multi Color Illuminated coolant window and bridge logo The product includes interchangeable color strips to light up the coolant window and front logo plate in 4 colors: Green (as shipped), red, blue or clear.
True Chrome Plated copper base plate Maintenance-free, corrosion-free, discoloration-free, and a brighter whiter color: the precision CNC machined copper base plate is plated with true chrome, as opposed to commonly used nickel plating (which is yellowish).
Precision CNC machined housing The main housing is precision CNC machined out of acrylic material and covered with a 3 mm thick brushed aluminum cover plate with an elegant cutout for visual effects on the flow-path.
Pre-applied thermal pads High conductivity thermal pads and reusable high performance gap-fillers are pre-applied to the memory, VR and other components;  there is no need to waste time cutting thermal pads as is often the case with other blocks; high quality Tim-Mate™ 2 thermal grease is included with the water-block for application to the GPU area.
SLI support
Depending on your motherboard, up to four Komodo-NV GTX9 waterblocks can be interconnected using Lok-Seal™ adjustable connector fittings.


Tab 2



What is included in the box
Water-block
Color Strips
Installation screws
Pre-installed thermal pads
A back-plate is NOT included (re-use the original graphics card back-plate)
Tim Mate 2 Thermal grease
(2) G1/4 plugs
Installation guide

Technical Specifications
Inlet & Outlet port thread standard:: 1/4" BSPP (G1/4)
Quality assurance: leak tested at 30 PSI
Thermal joints installation:
  • GPU: thermal compound (included)
  • Memory & power fets: pre-installed 0.5mm thermal pads
  • Other components: high performance reusable 1mm gap filler
Housing material: acrylic
Base Plate material: Chrome plated C110 copper
Cover-plate material: Black anodized brushed aluminum
Dimensions:  (L) 10.5" - 268mm x (W) 4.8" - 122mm x (H) .74" - 19mm (measured from GPU pedestal to top of housing)
Mass: 44 oz -  1247 g





Tab 3


Compatibility

The Komodo-NV GTX9 is compatible with Nvidia reference PCB design PG401 for GeForce® GTX980 as well as some GTX 970 models (listed below).  The PCB revision number represents the deciding factor to go by when selecting your Swiftech product,rather than the brand and/or model number of the card. Nvidia reference design boards normally bear the Nvidia logo, with the PCB number positioned directly below it.  Please carefully inspect your card to locate the PCB revision number.

Brand Model
ASUS GTX980-4GD5 GeForce GTX 980 4GB GDDR5 (90YV07H0-U0NA00)
Biostar GeForce GTX 980 4GB GDDR5 (VN9805XV42)
Colorful GeForce GTX 980 4GB
ELSA GeForce GTX 980 4GB GDDR5 (GD980-4GERX)
ELSA GeForce GTX 980 S.A.C 4GB GDDR5 (GD980-4GERXS)
EVGA GeForce GTX 980 4GB GDDR5 (04G-P4-1980)
EVGA GeForce GTX 980 4GB GDDR5 (04G-P4-2980)
EVGA GeForce GTX 980 ACX 2.0 4GB GDDR5 (04G-P4-2981)
EVGA GeForce GTX 980 SuperClocked 4GB GDDR5 (04G-P4-1982)
EVGA GeForce GTX 980 SuperClocked 4GB GDDR5 (04G-P4-2982)
EVGA GeForce GTX 980 SuperClocked ACX 2.0 4GB GDDR5 (04G-P4-2983)
FORSA GeForce GTX 980 4GB
Gainward eForce GTX 980 4GB GDDR5 (3347)
Galax GeForce GTX 980 4GB GDDR5 (98NQH6DHC8XX)
Galax GeForce GTX 980 4GB GDDR5 DVI (98NQH6DHXXXX)
GIGABYTE GeForce GTX 980 4GB GDDR5 (GV-N980D5-4GD-B)
Inno3D GeForce GTX 980 4GB GDDR5 (N980-1DDN-M5DN)
Inno3D GeForce GTX 980 HerculeZ X3 4GB GDDR5 (N98V-1SDN-M5DNX)
Inno3D iChill GeForce GTX 970 HerculeZ X4 Air Boss 4GB GDDR5 (C97V-1SDN-M5DNX)
Inno3D iChill GeForce GTX 970 HerculeZ X4 Air Boss Ultra 4GB GDDR5 (C97U-1SDN-M5DNX)
Inno3D iChill GeForce GTX 980 HerculeZ X4 Air Boss 4GB GDDR5 (C98V-1SDN-M5DNX)
Inno3D iChill GeForce GTX 980 HerculeZ X4 Air Boss Ultra 4GB GDDR5 (C98U-1SDN-M5DNX)
KFA2 GeForce GTX 980 4GB HOF (98NQH6DND2UZ)
KUROUTOSHIKOU GeForce GTX 980 4GB (GF-GTX980-E4GB)
Leadtek WinFast GeForce GTX 970 4GB GDDR5
MANLI GeForce GTX 980 4GB (M-NGTX980/5RDHDPPP)
MSI GTX 970 4GD5 OC GeForce GTX 970 4GB GDDR5 (V317-001R)
MSI GTX 980 4GD5 GeForce GTX 980 4GB GDDR5 (V801-1275R)
MSI GTX 980 4GD5 OCV1 GeForce GTX 980 4GB GDDR5 (V317-005R)
Nvidia GeForce GTX 970 GTX 4GB GDDR5
Nvidia GeForce GTX 980 4GB GDDR5
Palit GeForce GTX 980 4GB GDDR5 (NE5X980015G2F)
PNY GeForce GTX 980 4GB GDDR5 (GF980GTX4GEPB / VCGGTX9804XPB-CG)
Point of View GeForce GTX 980 (VGA-980-A1)
Point of View GeForce GTX 980 4GB GDDR5 (VGA-980-A1-4096)
Zotac GeForce GTX 970 AMP! 4GB GDDR5 (ZT-90110-10P)
Zotac GeForce GTX 970 AMP! Extreme Core Edition 4GB GDDR5 (ZT-90107-10P)
Zotac GeForce GTX 970 AMP! Omega Core Edition 4GB GDDR5 (ZT-90106-10P)
Zotac GeForce GTX 980 4GB GDDR5 (ZT-90201-10P)
Zotac GeForce GTX 980 AMP! Edition 4GB GDDR5 (ZT-90204-10P)
Zotac GeForce GTX 980 OC 4GB GDDR5 (ZT-90205-10P)



Tab 4


Independant Reviews, and Related Product Reviews
Swiftech's Komodo NV-LE GPU Block receives HITech legion Editor's Choice Award - Read More
"the Komodo NV-LE exceeded all expectations in terms of performance. The gap between the Komodo NV-LE and the other blocks tested was large enough that I actually went back and remounted the other blocks to verify my findings"
