KOMODO-HD5800

Tab 1

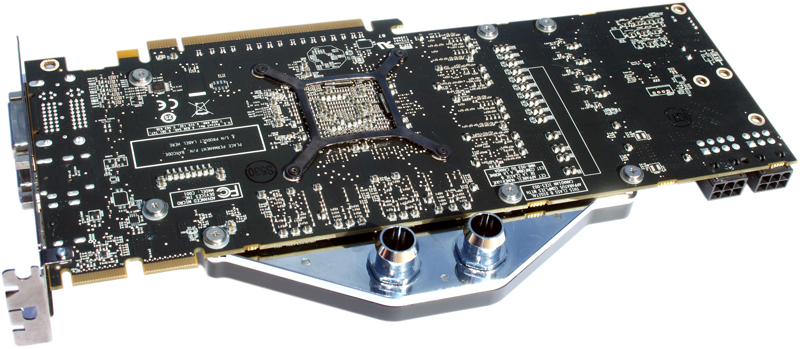

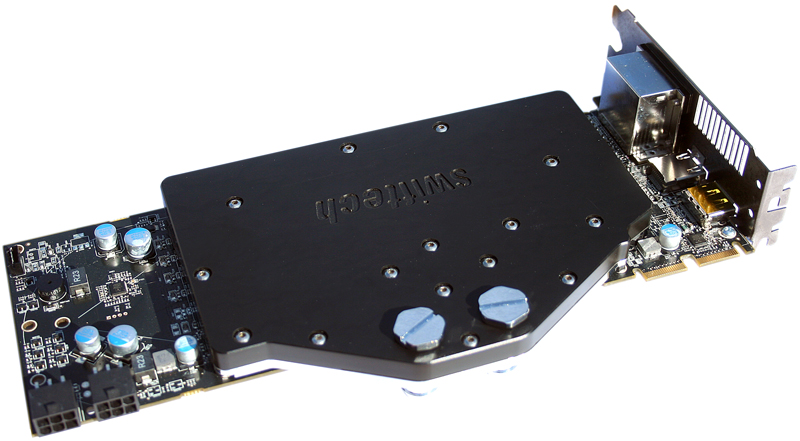

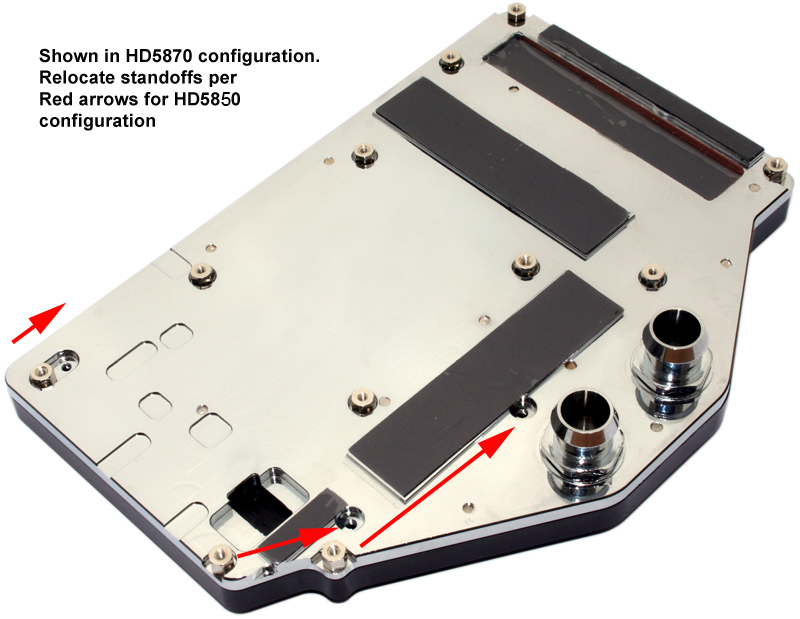

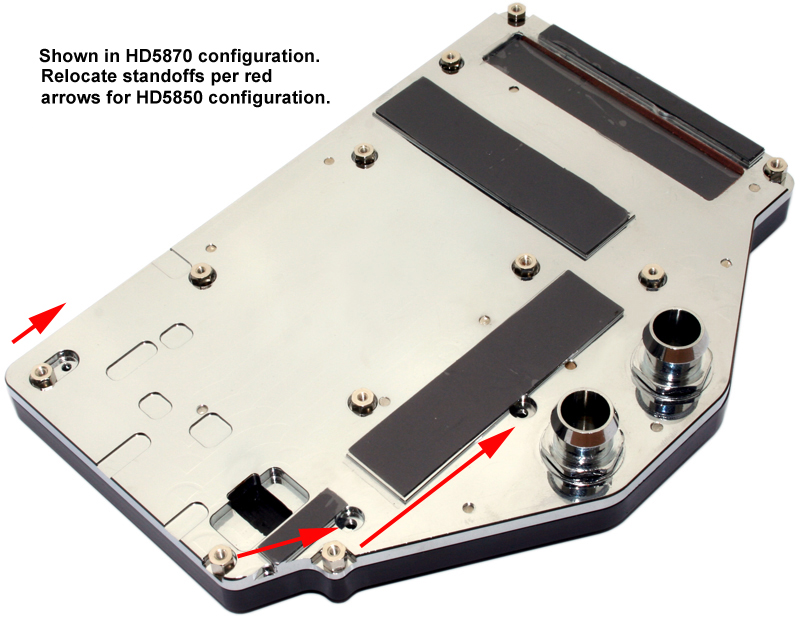

• The product is compatible with both Radeon™ HD5850 & 5870 reference boards, thanks to our exclusive system of removable and adjustable standoffs allowing to easily reconfigure the base plate for either models.

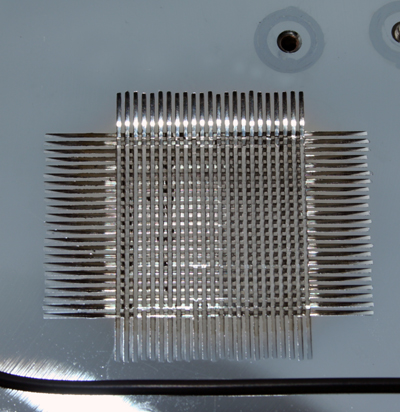

• The Komodo™ thermal design offers superior cooling performance at the GPU level thanks to an embedded thin-pin matrix located directly above the GPU area.

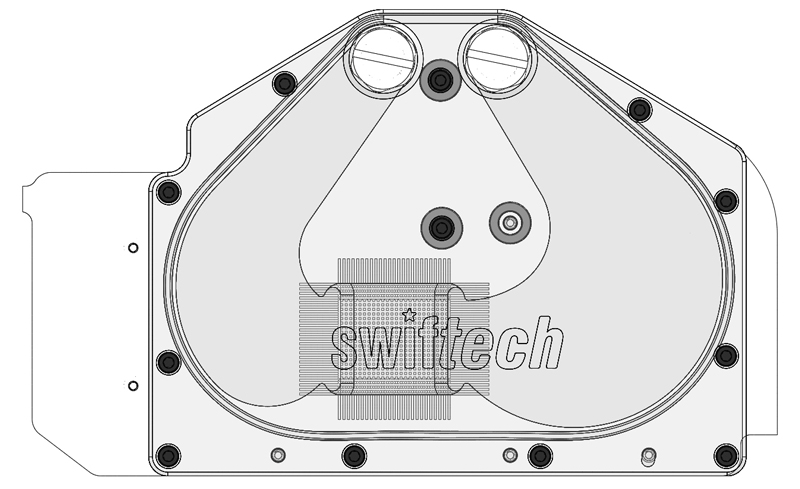

  The flow path is carefully engineered to accelerate the coolant at the pin-matrix level.

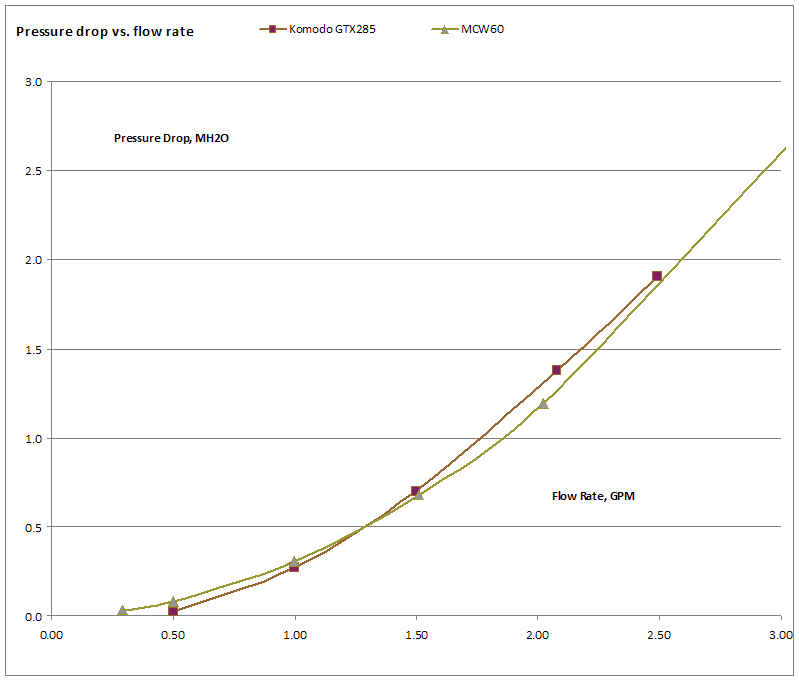

• Flow restriction is moderate by design in order to take into account multiple water-blocks in the same loop, and is similar to that of the classic MCW60 (See pressure drop vs. flow rate curve).

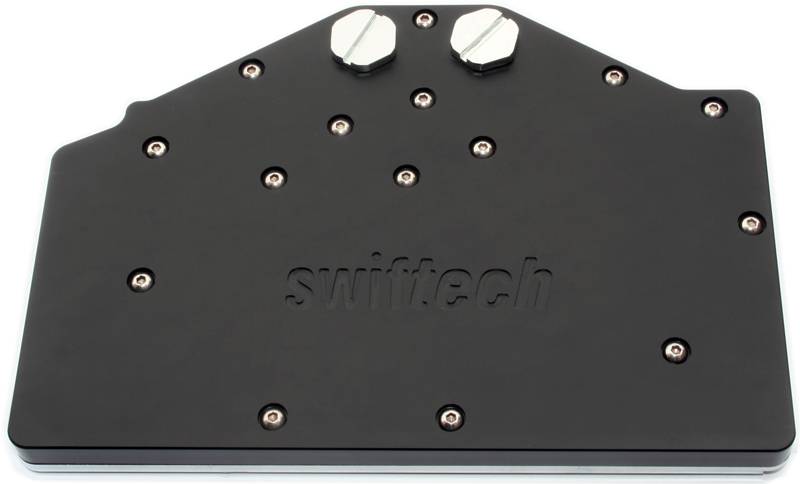

• The base plate is made of chrome plated electrolytic copper, as opposed to commonly used nickel plating which is yellowish, and the top is CNC machined out of  black acetal.High thermal conductivity grease pads are pre-applied in the memory and mosfet areas for user convenience.
• Short barb fittings are included with the block for both 3/8" and 1/2" tubing for CrossFire setups.

Tab 2

Tab 3

• Base plate: C110 copper with 0.6x0.6mm Pin Matrix
• Housing body: Black Acetal Copolymer
• Inlet/outlet port threads: 1/4" BSPP (G 1/4)
• Thermal joint installation: thermal grease (GPU) and pre-applied pads for memory,and mosfets,
• Dimensions (Inch): 7 3/4 " (L) x 4 3/4" (W) x .1/2" (H)
• Dimensions (Metric): 198mm (L) x 122mm (W) x 13mm (H)
• Weight: 1.7 lb (772 g)
