H320 X2


Price: $164.95
Part Number: H320X2


Designed in the USA
ROHS Compliant
Bulk Shipping Information: 6 pcs/carton
Compared to previous generations, the new "X2" series of CPU coolers represents the culmination of Swiftech's efforts to offer upgradable AIO's that look and perform like custom kits, while preserving and improving upon the characteristics that have made AIO’s so popular today: reasonable cost, superior performance to air cooling, plug-and-play functionalities, and no maintenance. As in previous Swiftech® offerings, this product line remains entirely focused on low to inaudible operating noise with extreme thermal performance.



Tab 1

 What's New !

  • Three radiator sizes are now available for dual 120mm fans, triple 120mm fans, and dual 140mm fans. Each series is available in two versions:
    • Standard, using barb fittings and Swiftech® Helix™ fans, or
    • Prestige, using Swiftech® Lok Seal™ black chrome compression fittings and Noiseblocker™ NB-eLoop fans.

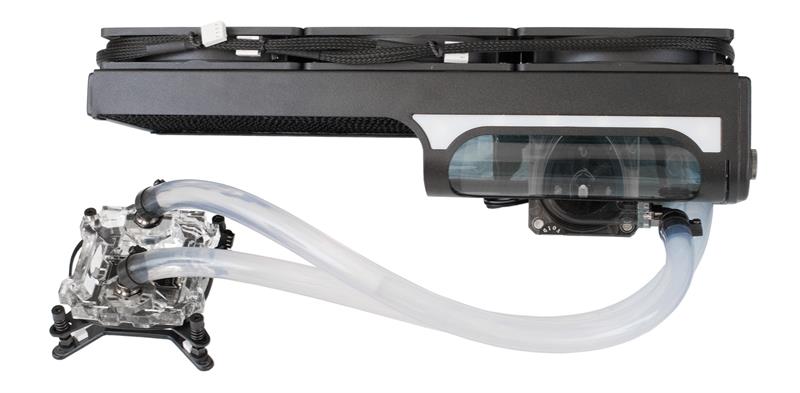

  • A fully redesigned patent-pending radiator/reservoir/pump combo featuring a large clear acrylic reservoir of tubular shape, and showing the inner workings of the system’s powerful pump.  The large coolant reserve prolongs operations without maintenance well beyond the 3 year product warranty. The quality of the radiator, its paint in particular , has been vastly improved.

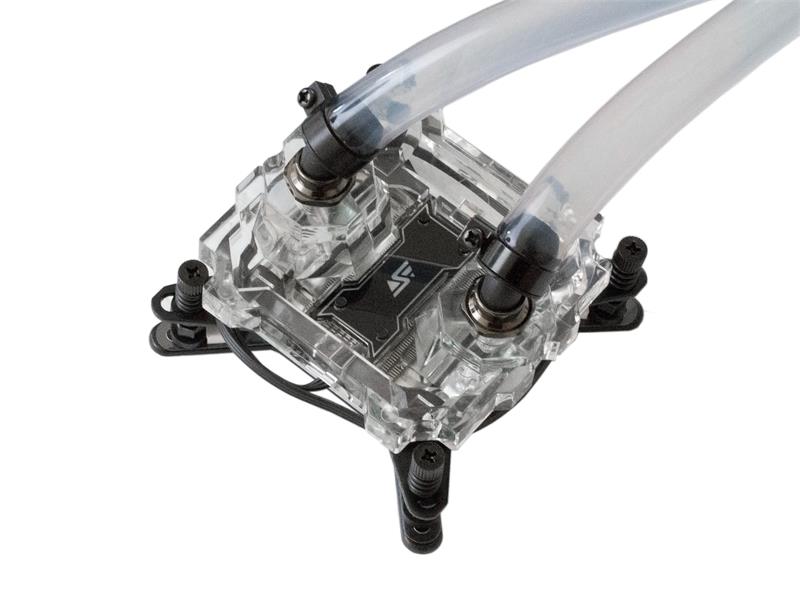

  • A new CPU waterblock, the Apogee™ XL2, which now features chrome plated copper base plate and a redesigned housing with enhanced flow characteristics for better hydraulic performance. The housing is now made of clear acrylic material to visualize the coolant flow path, and to create fantastic color and light reflections. The installation hardware has been enhanced for an even easier and trouble-free installation, and it is compatible with all current desktop processors from Intel® and AMD.

  • A clear departure from all other AIO's: the use of maintenance free Mayhem ultra-clear tubing, providing the overall custom looks and feel of the product: now, you can clearly see that your system is liquid cooled!

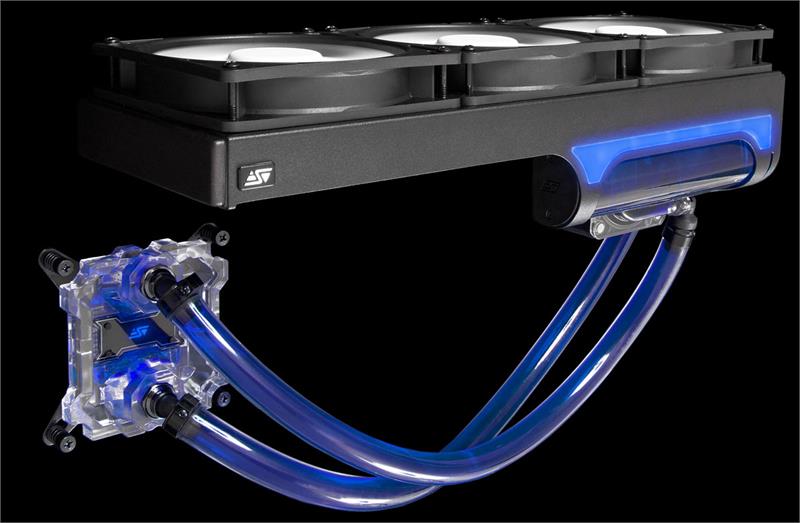

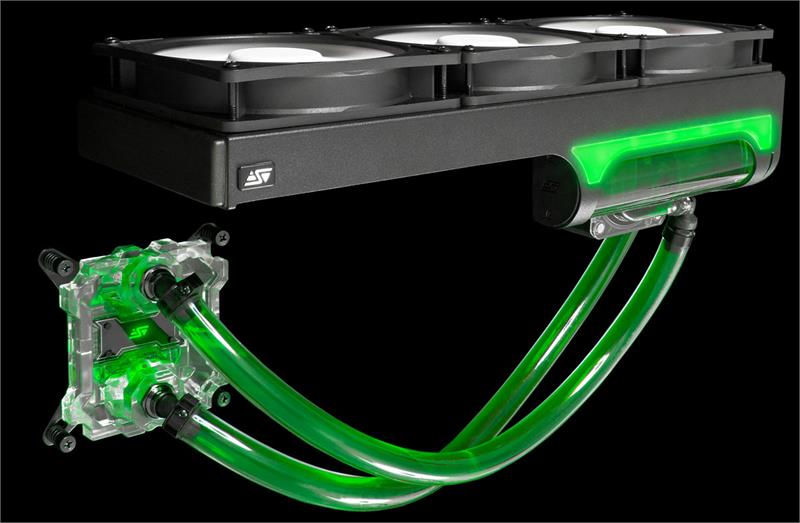

  • The use of addressable RGB LED’s (ALED) lighting throughout the system: on the waterblock, reservoir, and radiator accent piece; addressable LED’s are the latest and greatest in the world of LED lighting, providing control over each individual LED for unparalleled possibilities in terms of lighting effects.

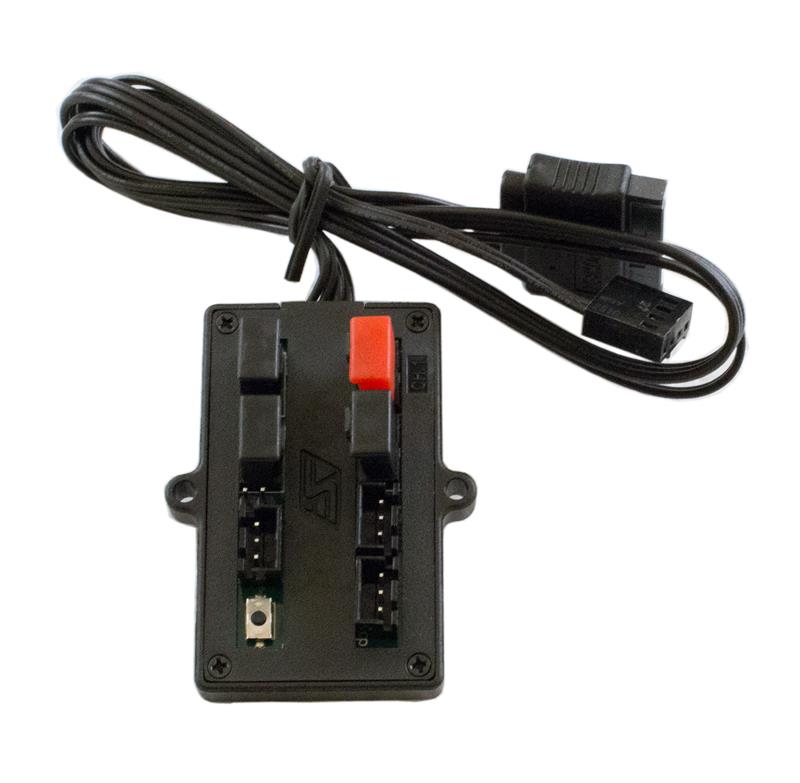

  • A new PWM splitter including the ALED lighting control button, allowing users to connect the system PWM devices (fans and pump), and to switch the LED’s to 7 different colors and 3 gradually increasing intensities; the device also includes connectivity to the chassis control panel, utilizing the ubiquitous reset button for instance to switch colors of the LED’s at will.

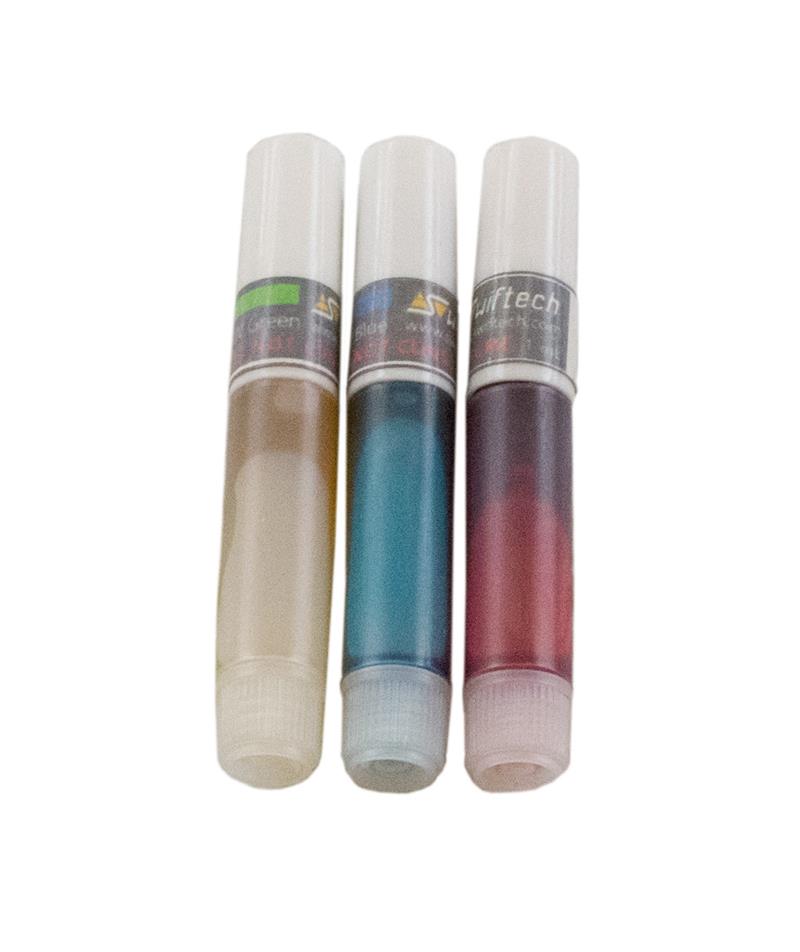

  • The inclusion of red, blue and green Mayhem color dyes, so users can customize their own color experience and give their system the finishing touch of their choice.

What has NOT changed

  • Copper & brass radiator with patent pending integrated high pressure pump & reservoir capable of driving multiple additional devices in the loop.

  • Enthusiast grade Apogee™ class waterblock.



Tab 2

"From virtually silent to comfortable audible noise levels" Our design objective for all Swiftech® products is always to minimize the operating noise while preserving high thermal performance characteristics. At its lowest speed settings, the H320 X2 system is virtually inaudible. At its maximum speed, it remains within comfortable audible noise levels.
"Plug-and-Play" With pre-installed fans, and the new Apogee™ XL2 mounting system, the H320 X2 is probably the easiest AIO liquid cooling kit to install bar none, and is even easier to setup than many high-end air coolers.
"Superior Thermal Performance" Thanks to its copper & brass triple 120 mm radiator, high static pressure Helix 120 mm fans, more powerful DC pump than any other AIO on the market, and because it uses the Award winning Apogee™ XL2 series waterblock, the H320 X2 kit delivers superior thermal performance to any comparably sized system on the market.
"Expandable/Customizable"

The H320 X2 differentiates itself from other AIO's by its ability to be fully customized, and to support additional liquid cooled components such as graphics cards, chipset,  and/or additional radiator(s).

  • From a practical standpoint, this is possible thanks to:
    • The presence of a reservoir including a fill-port built into the radiator so that the system can be easily emptied or refilled by the user at will,
    • Enthusiast grade 5/8” OD (3/8" ID) clear PVC tubing fastened to swivel fittings with an elegant clamping system that users can easily remove and safely re-install.
    • The factory fittings can be replaced by aftermarket G1/4 compatible offerings of the user's choice.
  • From a thermal performance standpoint, this is made possible by:
    • The high thermal capacity of the triple 120mm copper and brass radiator,
    • The powerful high-pressure pump capable of driving sufficient flow to cool multiple devices in the loop,
    • The award winning flagship Apogee XL2 series waterblock.
"Automatic speed and lighting control right out of the box" Speed control of fan and pump are PWM compliant, allowing the H320 X2 to be recognized and controlled by the motherboard depending on CPU temperature just like any standard CPU cooler. The system includes a PWM splitter allowing connection of up to 4 PWM devices (2 to 3 fans depending on model + the pump)  which can then be controlled as one by the motherboard.

For lighting control, the PWM splitter also includes 3 more connectors for the all new ALED lighting system, a two-pin connector that can be used for remote control (utilizing the mostly unused reset switch for instance), and finally a small button to change both colors and intensity of the LED's.
"Maintenance-free" As shipped from our factory and installed as directed, the H320 X2 CPU cooler requires no maintenance during its 3 year warranty period. If upgraded by the user, the interval of time between refills will depend on how users implement their customized loop.
"Installation in any orientation"

The radiator can be installed horizontally or vertically  - right side up or upside down in both configurations: in other words, horizontally with the pump/reservoir facing down (top of the case), horizontally with the pump/reservoir facing up (bottom of the case - * see important note below), vertically with the pump/reservoir at top (back of the case), vertically with the pump/reservoir at bottom (front of the case), or it can also be installed on the side.

* Important note: when installed horizontally with the pump/reservoir facing up, the amount of space available for air trap is reduced, therefore necessitating to keep the reservoir always full of coolant, particularly at high pump speed, in order to avoid entrainment of air into the pump. Because of this limitation, the 3 year no-maintenance representation stated above cannot be ascertained in such configuration.

"Best Case Compatibility" Thanks to the location of the integrated pump & reservoir, the overall radiator length is in fact the shortest in its class of all AIO's on the market. This will help to fit the H320 X2 in cases where most other AIO's would not.
"Reliability" Both fans and pump are rated for a 60,000 MTBF (Meantime Between Failures)
"Support" With over 10 years of experience designing, manufacturing and setting up liquid cooling systems, Swiftech® customer service can assist you in setting up and troubleshooting your system 6 days a week, 12 hours a day.

We are here to help!



Tab 3



Specifications
Radiator with patent pending integrated pump and reservoir (1 each)
Radiator body
Material Brass tubes, louvered copper fins
Body dimensions 127 x 375 x 28 mm
Fill-port thread class G 1/4
Barb fittings Integrated swivel 90° elbows, 3/8" (10mm) OD
Installation hardware
  • Standard: (12) coarse thread fans screws
  • Alternate: (12) 6-32 x 1 3/16 (30mm)  Philips screws
Lighting type ALED
Reservoir
Material Acrylic
Capacity 109 ml
Lighting type ALED
Pump
Pump speed control PWM
Pump Speed range 1200 ~ 3000 RPM
Pump nominal voltage 12 VDC
Pump nominal power 6W
Max. Static Pressure 2.8 mH₂O
Max. discharge 11 l/mn
Redundant fail safe
  • Software current limiting fail-safe and
  • Hardware shutoff built-into the pump power wires. The hardware fail safe is only triggered in case of a firmware malfunction.
Pump Bearing type Ceramic shaft, PTFE bearing
Pump Power connector SATA
Pump RPM & PWM connector Mini 4-pin
Pump MTBF 60,000 hours
ROHS Compliant
Pre-installed Helix™ Fan (3 each)
Dimensions 120 mm x 120 mm x 25 mm
Speed control PWM
Speed range 800+/- 25% ~ 1800+/- 10%  RPM
Airflow range 24 ~ 55 CFM
Static pressure range 0.53 ~ 2.29 mmH₂O
Noise level range <16 ~ <33 dB/A
Nominal Voltage 12 v
Nominal current 0.2 A
Bearing Type Z-axis
Connector Mini 4-pin
MTBF 60,000 hours
ROHS Compliant
Apogee™ XL2 Waterblock (1 each)
Housing material Clear acrylic
Base plate material C110 copper
Cooling engine 0.25mm x 0.25mm  micro-pin array
Barb fittings Swivel elbows, 3/8" (10mm) OD
Port thread G1/4 standard
Installation hardware & processor + socket compatibility
  • For Intel LGA 1150/51/55/56
    • M4 to M3 Standoffs + Back-plate
  • For Intel LGA 2011
    • (4) Spring loaded screws with M4 thread
  • For AMD AM2, AM3, FM1,FM2, 939
    • (2) Pre-assembled brackets & spring loaded screws
    • Bracket installation screws
Lighting type ALED
Tubing & Coolant
Material PVC tubing
Color Clear
Dimensions 5/8" x 3/8" (16/10mm)
Coolant Pre-filled with non-toxic propylene glycol coolant mix
Clamps (4 each)
Material Black anodized aluminum
PWM splitter (1 each)
PWM Ports 4
RPM signal port Channel 1
ALED connectors 3
2 pin connector 1
Power connector SATA
PWM/RPM connector Mini 4-pin
Installation hardware Peel-off sticker,  mounting screws & nuts
ROHS Compliant
Tim-Mate 2, 1g syringe thermal compound

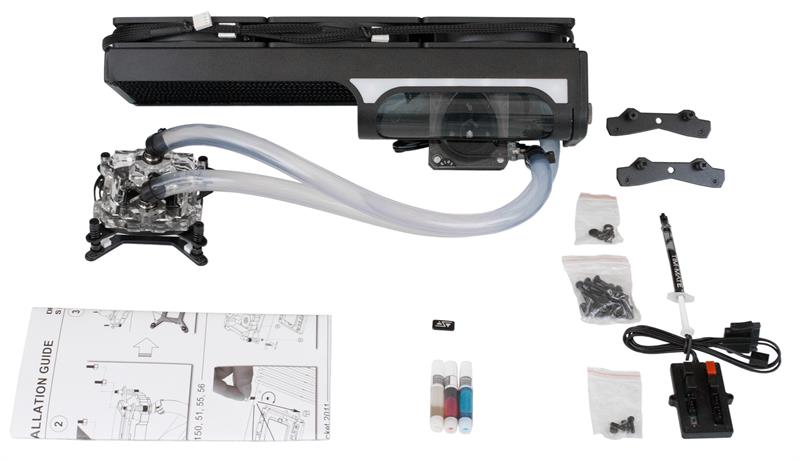

Quick Installation Guide




Radiator Dimensions






Tab 4

Our Test Results:




Tab 5



Quick Installation Guide (pdf)
Radiator Orientations
PWM Troubleshooting
"All the devices connected to my PWM splitter work at 100% but I cannot vary their speed"
  1. Check that the splitter mini-4 pin PWM signal cable is correctly connected to the CPU_Fan connector of the motherboard
  2. Enable "Manual Fan Control" in the motherboard BIOS
"The device(s) connected to my PWM splitter do not work"
  1. Check that the splitter power cable is connected to the power supply
  2. Check that the non-functioning device female 4-pin connector is correctly inserted in all 4 pins of the splitter connector: in effect, it may be possible to inadvertently offset the female connector by one pin by slightly forcing its insertion, so be careful about this!
"I am getting a "CPU fan error" when I turn on the computer"
  1. Make sure that a device is connected to channel 1 of the PWM splitter. If the motherboard CPU_Fan header does not read an RPM signal, it will return such error by default.
  2. Check that the device connected to Channel 1 of the PWM splitter is correctly inserted in its connector.
  3. Check that the power cable of the PWM splitter is connected to power supply.
"I connected the PWM splitter to an auxiliary 4-pin connector that was indicated as PWM capable by my Motherboard manual, but I can't vary the speed of my devices"
  1. Other than the CPU_Fan connector which is PWM enabled by default, most of the motherboards 4-pin connectors feature two methods of speed adjustment in order to allow control of both types of fans, the 3-pins which are voltage controlled, and the 4-pins which are PWM controlled. As a result, the PWM functionality must be enabled in the BIOS before it can actually work. Please consult your motherboard manual for a "how To".
  2. Since the "CPU_Fan" motherboard connector is PWM enabled by default, we recommend that you connect the splitter to the CPU_Fan connector in order to ascertain its functionality.
"I am connecting the splitter to a PWM fan controller instead of the motherboard, and it doesn't work"
  • Not all PWM fan controllers are compatible. Please read this white paper for further explanations and a list of compatible devices.




Tab 6


HiTech legion, Gabe Rouchon Interview, CES 2016 product Line presentation

Linus tech Tips, CES 2016 product Line presentation

Swiftech H320 X2 Prestige CPU cooler receives Proclockers.com Elite Hardware Award - Read the entire article

"When we tested the standard version of Swiftech’s H220-X2 a couple of days ago we were seriously impressed. Performance was very good and we thought this is one of the best looking, if not the best looking all in one CPU liquid coolers on the market right now. The H320-X2 Prestige is even more impressive."

Swiftech H320 X2 CPU cooler receives Tweaktown.com Editor's Choice Award - Read the entire article

"[...] We are almost at a loss for descriptive words to offer our true feelings of just how awesome these kits are. If installed as per the guide, this system is one of the most silent offerings we have ever tested in our time at TweakTown [...] it is a pleasure to have in the system [...] If you look at it like we do, the noise is still less than the H110i GTX [...] Then again, that H110i GTX [...] looks like a model or child's toy version of what Swiftech sent over. The H320 X2 Prestige has won us over, [...] when comparing this to all other custom loops offered to test, Swiftech beat them all [...] It is funny that we picked on EKWB for a design that mimics the older Swiftech products [...] However, a cooler like the Predator has just been trumped with the next evolution in what open loop water cooling systems can, or should be from now on [...] there is no doubt you are getting the best of all world's with this Swiftech product."

Swiftech H220 X2 CPU cooler receives Proclockers.com Editor's Choice Award - Read the entire article

"While beauty is in the eye of the beholder, I personally think this is one of the best looking, if not the best looking all in one CPU liquid coolers on the market right now. From top to bottom, the quality looks top notch and the RGB LED lighting sets the whole system off."
