Epsilon-HD5970AC

Introduction

Named after the Epsilon™ Aurigae binary star system, the Epsilon™ series of waterblocks are single slot, full cover liquid cooling solutions for dual GPU graphic cards. "Full cover" means that the waterblock cools both GPU's, Voltage Regulators, I/O chip, memory modules, and other critical components.

Available Models:

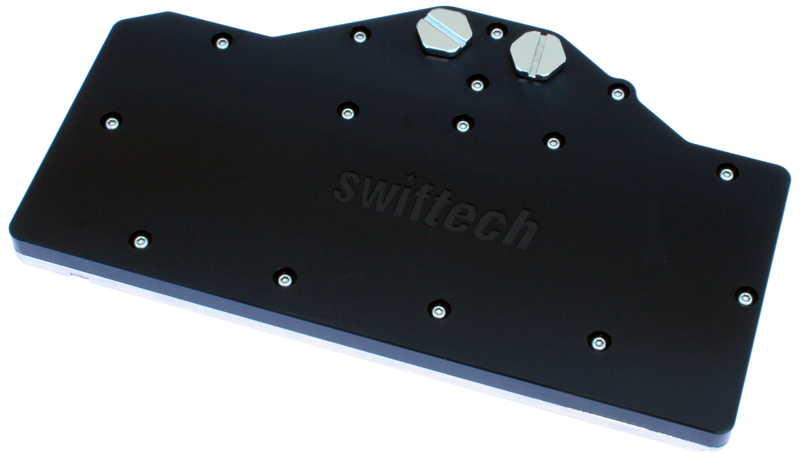

• The Epsilon™ GTX295, for nVidia reference design (P658*) GeForce™ GTX295 graphics cards, is available with either clear polycarbonate or black acetal housing.
• The Epsilon™ HD5970, for ATIreference design Radeon™ HD5970 graphics cards, is available with black acetal housing, and features a custom high performance black-anodized aluminum back-plate


Superior Performance
The Epsilon™ waterblock offers superior thermal performance at the GPU level thanks to an embedded thin-pin matrix located directly above the GPU areas. Flow restriction is moderate by design in order to take into account multiple water-blocks in the same loop.

Superior convenience for the user
High thermal conductivity grease pads are pre-applied in the memory and mosfet areas for user convenience. Inlet and outlet ports are G1/4 compatible and spaced to accomodate large compression fittings. Short fittings are available for quad SLI setups.

Superior quality
The CNC machined copper base is chrome plated for a durable and bright finish. Stainless steel standoffs are used to guaranty safe and reliable mounts to the PCB.

Pictures Gallery

Epsilon™ GTX295

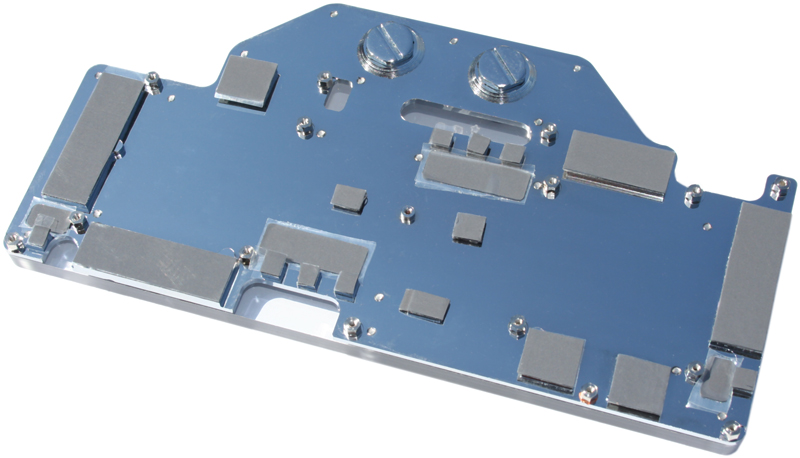

The Epsilon™ GTX295 base plate ships with pre-applied peel-off thermal pads

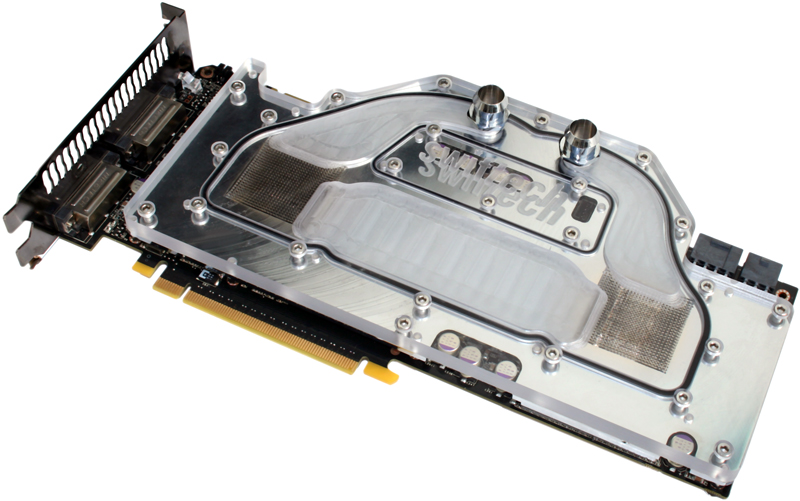

The Epsilon™ GTX295 Clear polycarbonate version waterblock installed
The stock back plates are used to fasten the block to the card

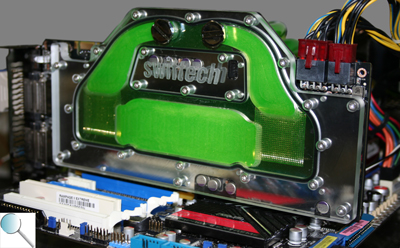

During operations: the flow path is carefully engineered to accelerate the coolant at the pin matrix level

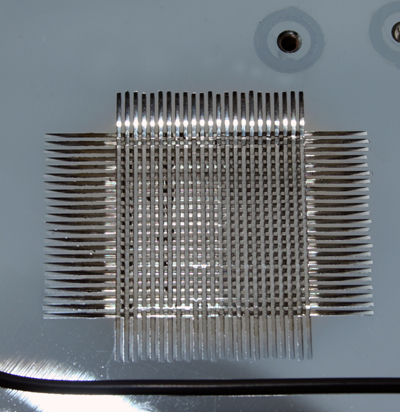

The 0.6x0.6mm thin pin matrix machined over the GPU areas lowers thermal resistance, and allows superior performance even at reduced flow rates

Performance and Specifications

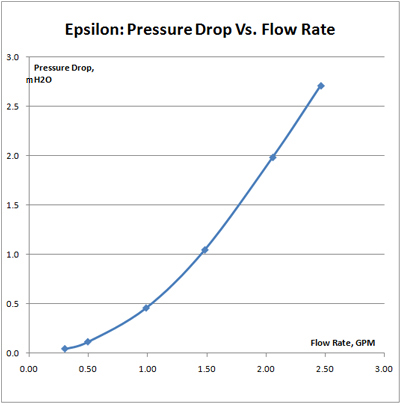

Performance




(*) Compatibility

• Epsilon™ GTX295: nVidia GTX295 reference board design P658 (single board)
• Epsilon™ HD5970: ATIRadeon™ HD5970 reference board design


How to check for compatibility with nVidia® boards?

The nVidia reference board number is usually printed on the back of the circuit board, in a code located below the nVidia® logo, as can be seen below. This example shows a P891 board.

Specifications

• Base plate: Chrome plated C110 copper with 0.6mm Pin Matrix
• Housing body: Clear polycarbonate or black acetal
• Inlet/outlet port threads: 1/4" BSPP (G 1/4)
• Thermal joint installation: thermal grease (GPU) and pre-applied pads for memory, nvio and mosfets
• Dimensions (Inch): 9 1/2 " (L) x 4.9" (W) x .350" (H*)
• Dimensions (Metric): 243mm (L) x 125mm (W) x 9mm (H*)
• Weight: 33.5 oz (949 g)


(*) Height over GPU
