Caldera Heatsink

Introduction

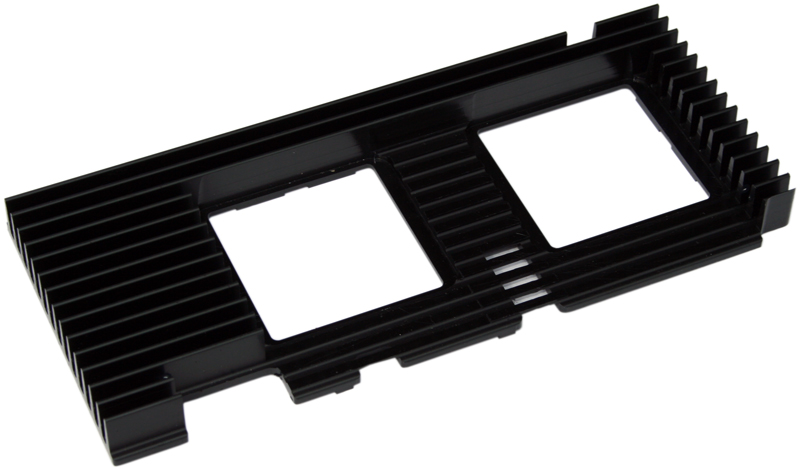

The Caldera heatsink is designed to cool surface mount components (memory, voltage mosfets, I/O chip) on AMD® 's reference series HD4870X2 graphics cards.

The Caldera Heatsink is compatible with the MCW60 VGA water-block, as well as the upcoming Caldera 4870X2 water-block. In both cases, it will allow the highest possible stable overclocks of these high-end graphic cards while keeping them cool and silent.

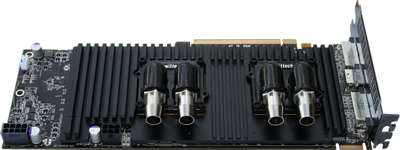

The Caldera heatsink installed with (2) MCW60's (Heatsink Rev1 shown)

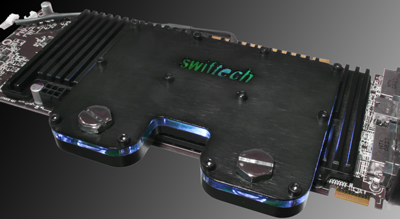

The Caldera full-coverage solution - Rev 1 heatsink shown

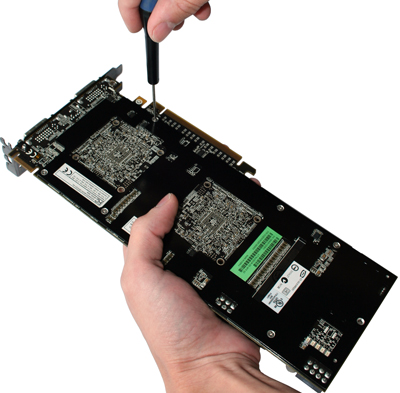

solution back-plate

Specifications

• Material: black anodized 6061 Extruded Aluminum
• Dimensions (Inch): 8.2" (L) x 3.6 (W) x .47" (H)
• Dimensions (Metric): 208mm (L) x 93mm (W) x 12mm (H)
• Weight: 6.4 oz (181 g)
• Installation: high thermal conductivity pad
