Apogee XT (Rev 2)


ratingratingratingratingrating
Price: $79.95
Out of stock
Part Number: apogee-xt
Bulk shipping information: 20 Pcs/Ctn


Designed in the USA
ROHS Compliant
Product Description
ap.o.gee: The farthest or highest point; the apex; a final climactic stage

The Apogee™ XT is Swiftech's flagship CPU waterblock. It represents the culmination of months of research and development marked by hundreds of hours of competitive testing. The end result is a product that manages to surpass everything that made its predecessor -the Apogee™ GTZ, one of the best water-blocks in the world; a substantial increase in thermal performance, sumptuous functional elegance,  unique convenience features for beginners and extreme users alike, all contribute to place the new "XT" in a class of its own.

Revision 2 of the Apogee™ XT focuses on improving the block flow rate without affecting its thermal performance. Comparative pressure drop curves between Rev1 and Rev2 are presented in the Performance Data section below. The housing is internally redesigned as shown in the specifications section below. There are no other modifications to the product.


Tab 1

Summary of benefits compared to the Apogee™ GTZ
  • PERFORMANCE:  Best water-block in the world for thermal performance validated by numerous independant reviews.

  • MODERATE FLOW RESTRICTION: Revision 2 of the Apogee™ XT retains all the thermal performance benefits of the original, but now features a relatively moderate pressure drop profile, thus improving overall peformance of the liquid cooling loop in a multi-block environment.

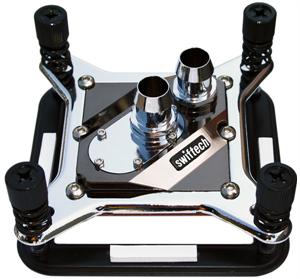

  • STUNNING ELEGANCE: the XT water-block is entirely machined from copper and brass. The subtly sculpted brass housing receives a luxurious black chrome plating finish.

  • UNIQUE CONVENIENCE FEATURES: Swiftech's retention mechanism is universally recognized as the simplest and safest to use. It has been further improved to feature universal compatibility with all Intel® Core™ desktop processors. The XT also features a unique detachable inlet plate that can be rotated at 180 Degreeto allow installation of extra large compression fittings as shown on the right.

Tab 2


  • Thermal Design: The Apogee™ XT is optimized for Intel® Core™ i5 and Core™ i7 processors but it will also yield world-class performance results with all compatible processors from AMD® and/or Intel® server class processors. Thermal design of the cooling engine combines the benefits of direct coolant impingement over the CPU area with a copper base plate characterized by a pin matrix composed of 225 µm (0.009") micro structures.

  • Pressure Drop Specification: Effective March 8, 2011 all Apogee™ XT's are being shipped with an internally revised housing that substantially improves the water-block pressure drop specifications without affecting the thermal performance of the block. A comparative Pressure Drop vs. Flow rate curve is presented here to quantify the improvement.

  • Mechanical Design: Mechanical design of the copper base plate is optimized for Intel® socket LGA 771, 775, 1156 and 1366. The topographically mapped mating surface has been considerably enhanced to yield dominating results with Intel® socket LGA 1156 and 1366 processors. Other types of processors such as AMD® socket F, AM2, AM3 and 940 may also benefit from the enhanced contact area.

  • Retention Mechanism: The Swiftech's tool free retention system uses springs and limited travel thumb-screws for high quality and repeatable mounts. The waterblock hold-down plate features elongated holes providing compatibility with all Intel® Core™ desktop processors. Motherboard back-plates provide server-class rigidity to the assembly.

  • Comparative Temperature Data: The following tables report the data collected from testing performed with actual retail processors under 100% load using CPU Burn. Published results are the best of a minimum of 5 mounts. These results are indicative of our test bench settings and of the tested processors only. Results may vary from one processor to another. Competitive data is provided for comparative purposes, and is only representative of the specific waterblock samples tested here. Two samples of the same competitive blocks were used for validation purposes.

Intel® Core™ i7 920 (Bloomfield D0) @4095 Mhz - 1.392 V Actual
Waterblock
Delta T (*)
Apogee™ GTZ
40.82 °C
Apogee™ XT (factory inlet configuration)
37.88 °C
Apogee™ XT (alternate inlet configuration) (**)
37.99 °C
Reference competitive data (Heatkiller rev3.0)
39.39 °C

Comments:
  • In factory configuration, the Apogee™ XT showed a 3 °C improvement over the Apogee™ GTZ.
  • A 1.5 °C improvement was observed compared the best competitive waterblock tested in our lab.
  • The temperature degradation between factory inlet configuration and alternate inlet configuration was 0.1 °C
(*) Delta T is the difference in temperature between averaged CPU Core™ temperature as reported by RealTemp and averaged air temperature reported by 3 thermal probes located at the fans inlets.

(**) Alternate inlet configuration is when the inlet is rotated at 180 Degreeto allow installation of extra large compression fittings.

Tab 3



The Original Apogee™ XT Housing
Revision 2 of the Apogee™ XT Housing shipping effective 3/11/2011

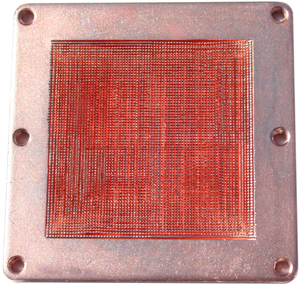

The 250 µm (0.009") micro pin matrix is at the heart of the Apogee™ XT lowest ever thermal resistance. Minor imperfections in the regularity of the pin matrix, such as pin dissymetry of +/- 0.1mm or slight bends can be observed, and represent a normal by-product of the manufacturing process

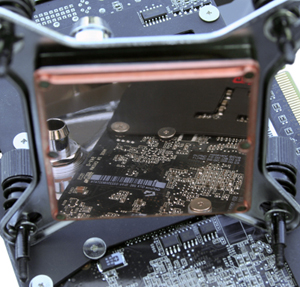

The mating surface with the CPU receives a mirror finish


The cold plate surface is topographically mapped to provide an optimized TIM joint with socket LGA 771, 775, 1155, 1156 and 1366 compatible processors. As a result, the Apogee™ XT requires a specific mounting orientation with respect to the CPU socket in order to optimize performance as illustrated above
The housing is CNC machined out of brass, and designed for impingement cooling over the CPU hottest area. The flow path, as illustrated above shows that the Apogee™ XT is port specific: inlet and outlet cannot be interchanged.

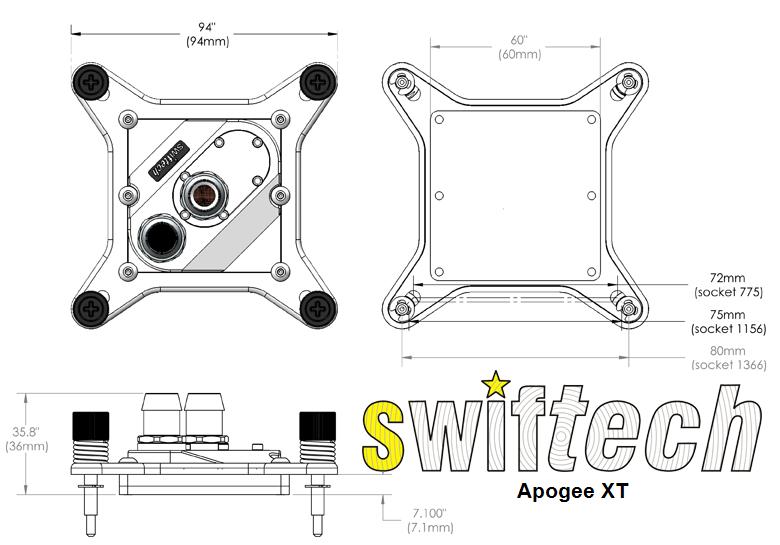

Dimensions:

Net Weight: 15.1 ounces (428 grams)

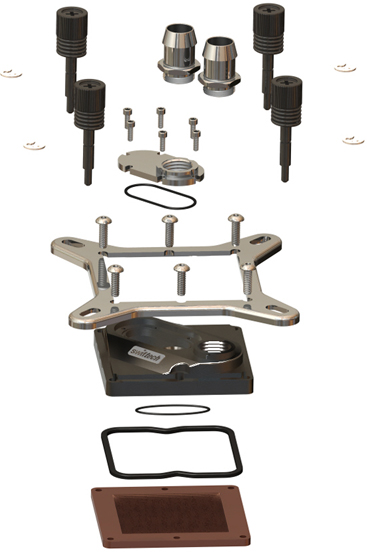

Exploded view
Motherboard and CPU Compatibility

The Apogee™ XT is shipped with a Universal hold-down plate and retention mechanism compatible with all Intel® Core™ desktop processors: sockets LGA775, 1155, 1156, and 1366. All Apogee™ XT waterblocks shipped to retail channels after November 1st 2009 include the motherboard back-plates for sockets LGA1366 (Core™ i7) and 1155/1156 (Core™ i5 and i7). The socket 775 motherboard back-plate is not included with the block and is mailed to users free of charge upon request.

Part # S1366-BP is the motherboard back-plate for Socket LGA1366 platforms (Intel® Ci7)  and is installed by default to teh Apogee™ XT.
Part # S1156-BP is the motherboard back-plate for Socket LGA1156 platforms (Intel® Ci7 and Ci5) and is also compatible with Intel® s new Sandy Bridge class processors (socket 1155). It is included with the Apogee™ XT installation hardware.


Part # S775-BP is the motherboard back-plate for Socket LGA775 platforms (Intel® Core™ 2) . It is not included with the block and is mailed to users free of charge upon request (Procedure depends on the country where you live; see details below)

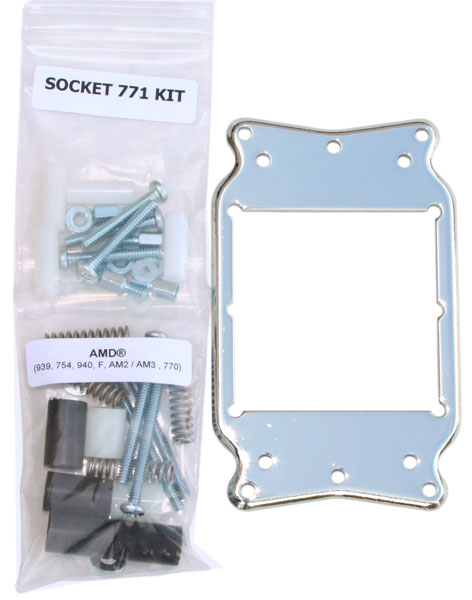

Part # AP-XT Multi-Mount HDP is a multi-mount hold-down plate for the following processors is available in option, and is compatible with:
 Intel® Server, socket 771
 AMD® processors, sockets 754, 939, 940, AM2, AM3, 770, F



Fittings and Tubing Compatibility

  • The Apogee™ XT ships pre-installed with chrome plated high flow 1/4" BSPP x 1/2" Eurostyle barbs; 3/8" barb fittings are available in option.

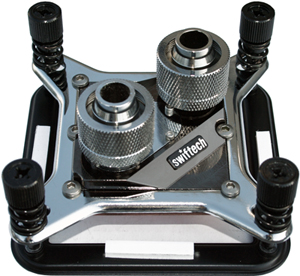

  • The product is compatible with large (1/2) compression fittings by rotating the inlet plate as shown below:

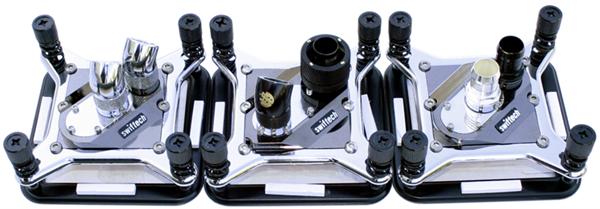

The Apogee™ XT is compatible with all known G1/4 OEM fittings

Documentation



Tab 5

"The Swiftech Apogee™ XT Revision 2 builds upon the excellent XT Revision 1 by offering the same great block package and thermal performance while reducing restriction.excellent!" - May 2011

editors choice

Pure OC logo

Core™ i7 Water Block Roundup:
Watercool Heatkiller 3.0 vs. Koolance CPU 360 vs. EK Supreme HF vs. SwiftechApogee™ XT
"The Apogee™ XT provides the best overall combination of design, ease of installation, included accessories, and thermal performance in the roundup" May 2010


overclockers tech award

overclockers tech logo

"The Apogee™ XT is a superb water block, without question. Swiftech has once again reclaimed the title of best block on the market...Due to the outstanding nature of this block, its construction, its performance and the astounding customer service Swiftech has to back up its product ... we are happy to award the  Apogee™ XT Overclockers Tech's [..] first ever 10/10 and a gold award to go along with it!" Jan 2010


legit reviews logo

"Im rather impressed with the Swiftech Apogee™ XT Extreme Performance CPU Waterblock. Combined with the rest of the cooling system this is the coolest the test bench has run when overclocked...If you're looking to make the jump to a full on custom water cooling setup, or even upgrade your current setup, the Swiftech Apogee™ XT should be on your short list of waterblocks." December


madshrimps Logo

"With the Apogee™ XT, Swiftech has regained precious ground on the top European block, the Heatkiller 3.0. It even manages to beat it on my test configuration!.. We got a new king to cool down your favorite CPU, even though the win isn't by a big margin on my simple loop setup. The improvement however over the previous flagship, the GTZ, is incredible." December 2009



German Web Site AwardFabrik reviews 10 top performance Waterblocks and declares Apogee™ XT the winner

"As mentioned the winner is clear - and it is the Apogee™ XT from Swiftech. This water cooler has everything your heart desires. Our processor he could in the cold stress test on the top and in the flow test it reaches values corresponding to the average. Furthermore, the right equipment, it shall submit to the Swiftech cooler a backplate for optimal assembly and also with very good thermal paste and matching high-flow ports. The harmonious overall package with super power is available for 70 ." December 2009



Skinnee labs logo

"Pardon me while I gush for a bit, but this [Apogee™ XT] block is amazing. With it you get the best performance of any block on the market, you get the best mounting system of any block on the market (with no extra cost or disassembly procedures to switch sockets), you get full compatibility with all G1/4 fittings (something that's increasingly rare with high performance blocks), and you even can get a little more performance out of it if you've got tinker-itis. The other amazing thing about this block is just how well it performs in low flow scenarios. Of all the blocks I've tested, it's the most resilient to low flow rates and when you add that to best-as-tested performance in normal and high flow scenarios, that equates to untouchable performance in low flow scenarios." October 2009
