MCR-X20 Drive™ (Rev.2) Series Heat Exchangers with Integrated Pump and Reservoir
|
|
Price: From $111.95 to $205.95
Sale Price: From $78.37 to $144.17
Out of stock
Product Options
| |
| |
Designed in the USA
ROHS Compliant
|
Product Description
The patent pending MCR-X20 Drive™ series are high performance heat exchangers with a truly revolutionary design featuring and integrated pump and a reservoir. Following the initial release of the MCR Drive product line, the new Revision 2 series adds yet another level of functionality and performance with two major improvements:
-
While the radiators in the initial release were only fully functional in vertical orientation, they are now fully functional in both vertical and horizontal orientations thanks to a new reservoir design; this adds the much sought after top-of-the case installation to the range of configurations;
-
The inclusion of Swiftech's new PWM motherboard-controlled MCP35X pump, which can operate at variable speed from 1300rpm to 4500 rpm, compared to a fixed speed of 3500 rpm in the earlier version; this new functionality allows users to fully tune the product to their needs and/or preferences, from virtually silent operations at low speed, to ultra high flow at maximum speed for optimum performance with multiple water-blocks and/or radiators in the cooling loop.

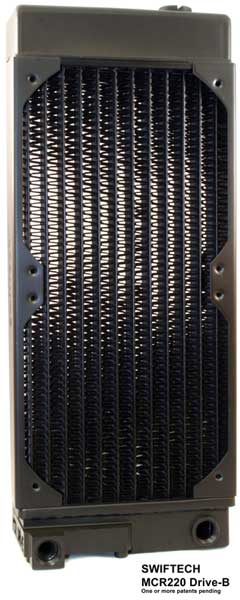

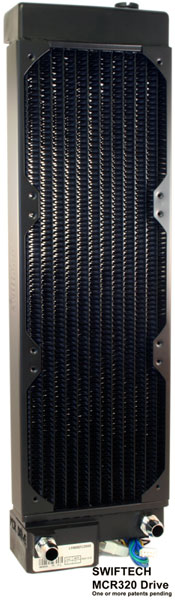

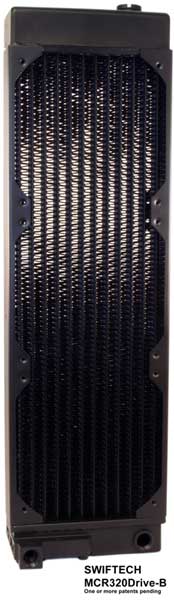

The MCR Drive™ heat exchangers are available in two versions: dual 120mm, and triple 120mm, and in two configurations each, with or without the pump. When sold without the pump, any of Swiftech's MCP3X series can be installed (MCP350, 355, 35B, 35X)
They are also available in complete kits: the H20 X20 Edge series of liquid cooling kits.
Tab 1
High performance Features
|
Benefits
|
|
The dual or triple 120mm radiator form factors provide 2 to 3 times the heat dissipation capacity afforded by the single 120mm radiators found in entry level kits.
|
Superior performance headroom
Substantially reduced operating temperatures
Ability to daisy-chain multiple water-blocks in the loop with reduced impact on CPU cooling performance
Higher overclocks
|
|
The high-pressure MCP35X pump now runs at up to 4500 rpm, and allows vastly superior system flow rates than comparably sized pumps found in entry level kits, allowing users to daisy-chain multiple water-blocks in the loop.
|
|
Integration of the pump into the radiator reduces the overall system pressure drop compared to conventional setups.
|
|
Convenience and Versatility Features
|
Benefits
|
|
The patent pending integrated pump and built-in reservoir of the MCR Drive™ heat exchanger combine 3 of the 4 typical elements found in conventional CPU liquid cooling systems.
|
Easier to integrate in any PC
Simplified installation
Safer, more reliable operations (less joints)
|
| The product is fully functional in both vertical and horizontal orientations
|
Easier to integrate in any PC
|
| PWM controlled pump enables variable speed from 1300 to 4500 rpm
|
From virtually silent operations at low speed to ultra-high flow rates in multiple waterblocks (CPU + VGA's) and/or radiator configurations
|
|
Only the water-block(s) will need to be changed in case of platform upgrade.
|
Future-proof concept reduces the cost of ownership over the long term, and guarantees that the core cooling system can be migrated from one computer to another.
|
Tab 2
Performance curves of the radiators are similar to their respective non-integrated counterparts, the MCRX20 QP series and can be accessed in the links provided below.
It should be noted that overall system pressure drop is noticeably improved compared to a traditional setup comprising a separate pump and reservoir due to a substantial reduction in the length of the flow path, as well as in the number of fittings (2 fittings instead of 6).
Here is a summarized table of results; these tests were performed with Ci7 920 overclocked to 4.1Ghz and running at 1.39v; please also refer to the articles linked above for full configuration details, results and explanations.
| Configuration
|
T CPU Air °C
|
| H20-220 Edge to CPU alone
|
44.9
|
| H20-220 Edge with (1) VGA
|
45.9
|
| H20-220 Edge with (2) VGA in SLI
|
46.7
|
| H20-320 Edge to CPU alone
|
43.4
|
| H20-320 Edge with (1) VGA
|
44.3
|
| H20-320 Edge with (2) VGA in SLI
|
44.9
|
T CPU Air °C: the difference in Degrees Celsius, between the temperature of the CPU and that of the ambient air. This presentation of the data identifies the CPU temperature independantly of ambient air temperature which varies greatly depending on local conditions, thus reflecting the true performance of the cooling system.
Links to individual components performance curves and specifications:
Tab 3
Dimensions (Including pump)

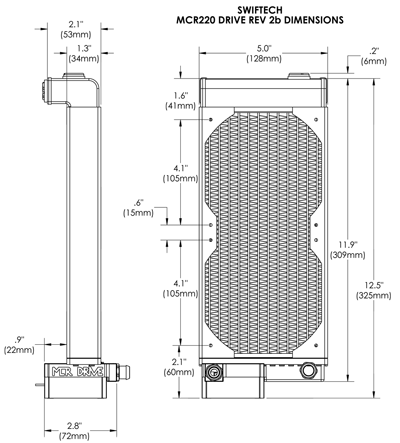

Schematics MCR220 Drive™ (click to enlarge)
|

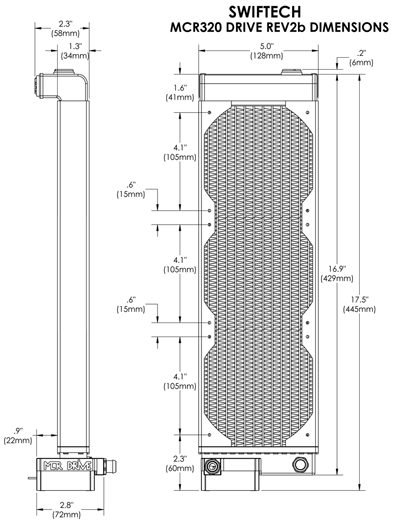

Schematics MCR320 Drive™ (click to enlarge)
|
|
|
|
|
Radiator general construction
|
MCP35X Pump specifications summary
|
|
Overall Dimensions, Including pump
|
MCR220 Drive™
|
MCR320 Drive™
|
|
Width
|
5.0"(128mm)
|
|
Height
|
12.1"(309mm)
|
16.9"(429mm)
|
|
Thickness
|
2.9"(74mm)
|
|
Weight
|
36.5oz(1079g)
|
42oz(1242g)
|
-
2-pass, single row construction
-
Brass body and tubes, louvered copper fins
-
POM pump housing
-
Optimized fin-density for maximum heat dissipation at low
noise
-
Patent-pending integrated pump housing
-
M3.5 threaded fan and case-mounting holes
-
Slim form factor 11.2 x 5 x 1.3" (284 x 128 x 34mm)
-
G1/4 threaded ports
-
High-durability acrylic paint finish
-
ROHS compliant
|
|
Motor type
|
Electronically commutated, brushless DC, spherical motor
|
|
Nominal voltage
|
12 V DC
|
| Operating voltage range
|
9 to 13.4 VDC
|
|
Max. nominal power (@12 V)
|
18 W
|
| Max. nominal current (@12 V)
|
1.5 A
|
|
Max. nominal head (@12 V)
|
14.7 ft (4.4m)
|
|
Max nom. discharge (@12V)
|
~ 4.75 GPM (17.5 LPM)
|
| Maximum pressure
|
22 PSI (1.5 BAR)
|
| Temperature range
|
Up to 140 °F (60 °C)
|
|
Electrical power connector
|
Molex 4 pin
|
| PWM + RPM Signals
|
4-pin connector
|
| RoHS
|
Compliant
|
|
Port thread standard
|
G1/4
|
| MTBF
|
50,000 Hours
|
|
Tab 4Case Compatibility for internal installation:
We scouted the web and various forums to identify cases that are compatible for preferably "bolt-on" internal installation, or with very minor modifications; we also contacted various case manufacturers and inquired which of their models would be compatible. Here is a compilation of what we found at the time of this publication; please note that the (*) next to the listed models denotes that they were either validated by us, or listed as compatible by their respective manufacturers. We do not guarantee the accuracy of the provided information for models that we have not validated in house.
| Make
|
Model
|
H2O-220 Edge
|
H20-320 Edge
|
| Antec
|
DF85, 1200
|
Yes
|
No
|
| Cooler Master
|
HAF932 (*)
|
Yes
|
Yes
|
| Cooler Master
|
Cosmos S (*)
|
Yes
|
Yes
|
| Cooler Master
|
ATCS 840
|
Yes
|
Yes
|
| Cooler Master
|
CM 690 II
|
Yes
|
No
|
| Cooler Master
|
Stacker 810
|
Yes
|
No
|
| Corsair
|
CC800DW
|
Yes
|
Yes
|
| Corsair
|
CC700DW
|
Yes
|
Yes
|
Lian Li
|
PC-P80
|
Yes
|
No
|
Lian Li
|
PC-A77F
|
Yes
|
Yes
|
| Mountainmods
|
Most Models (*)
|
Yes
|
Yes
|
| NZXT
|
Tempest (*)
|
Yes
|
No
|
| NZXT
|
Phantom (*)
|
Yes
|
No
|
| Silverstone
|
Raven RV01, RV02 (*)
|
Yes
|
No
|
| Silverstone
|
TJ09 , TJ010 (*)
|
Yes
|
No
|
Thermaltake
|
Armor LCS
|
Yes
|
No
|
Some examples of installation:
General Installation guideline (see also installation guide)
|
Installation orientations
|
Installation to panel
|
|
Click on picture to enlarge
|
|
Documentation:
Tab 5
|
"To sum it up in a simple phrase, the MCP35X is a big deal. [..] PWM control of your pump is the game changer here. [..] The ability to change speeds when load/temperature increases without having to manually adjust the settings is a godsend, and now we can do this with our pump too that is huge! [...] The MCP35X is the best overall performing Laing pump I have tested to date..." Jan 2011
|
|
|
"... the H2O-320 Edge is indeed a unique liquid cooling kit. [..] It is a new evolution of the water cooling kit and the worlds first traditional setup that combines a reservoir, pump and radiator in a whole unit to eliminate the tubing cluster without compromising the performance. Not only does the performance stay impressively strong, the whole setup is extremely user-friendly as well. " Dec 2011
|
|
|
"Overall this is an impressive kit. The performance should be right up there with a custom loop [..] The H20-220 Edge has the flexibility to upgrade to future blocks for upcoming sockets, great performance [..], quiet operation [..], the ability to crank it up for some benching sessions when every °Celsius counts, and expandability to put more into the loop [..] when you are ready." Nov 2010
|
|
|
"If only you could see the smile on my face when I think about what the H2O-320 Edge kit offers. Not only does it take away a lot of the issues found in a kit you shopped all the pieces for separately [..] I can tell you the pricing is spot on, and if you are in the market for a new loop capable of handling todays hottest components [..], this is definitely the solution for you. " Nov 2010
|
|
|
"Swiftechs H20-320 Edge kit comes ready to perform as the numbers clearly show. [..]it is designed with expansion in mind. [..] This is also what sets it apart from many kits on the market today that are a closed loop design [..] the H20-320 Edge offers an easily accessible water cooling system for beginners and experienced users alike." Oct 2010
|
|
|
Video Review H20-220 Edge Liquid Cooling kit - Oct 2010
|
|
|
"Overall I was very impressed with the temps [..] And it looks pretty awesome!..if you are at all into serious overclocking or system building and you do not have custom water, its about time to take the plunge.pardon the pun. The Swiftech® H20-320 Edge Water Cooling Kit is gorgeous and anyone would be happy sporting one of these on their performance rigs." Oct 2010
|
|
|
First review of the new H20-320 Edge liquid cooling kit
"Although many dyed-in-the-wool water cooling users will turn their nose up at a liquid cooling kit, [..] I'd have to say the Swiftech® kits are by far the best..If you're looking to build a liquid cooled rig and don't want to mess around with buying parts piecemeal, the Edge kits are absolutely a great way to go." Sept 2010
|
|
|
|
|
Price: From $289.95 to $319.95
|
|
|
|
Complete CPU liquid kit incl. Apogee™ XTL CPU water-block, MCR220-Drive radiator with integrated MCP35X pump and reservoir, fans, Radbox and accessories, tubing, installation hardware, Fill port accessories, Hydrx coolant, Installaiton guides
|
| |
